- Reference:
[The Basics — Book of Zeek (git/master)](https://docs.zeek.org/en/master/scripting/basics.html)
detect-MHR.zeek:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
##! Detect file downloads that have hash values matching files in Team
##! Cymru's Malware Hash Registry (http://www.team-cymru.org/Services/MHR/).
@load base/frameworks/files
@load base/frameworks/notice
@load frameworks/files/hash-all-files
module TeamCymruMalwareHashRegistry;
export {
redef enum Notice::Type += {
## The hash value of a file transferred over HTTP matched in the
## malware hash registry.
Match
};
## File types to attempt matching against the Malware Hash Registry.
option match_file_types = /application\/x-dosexec/ |
/application\/vnd.ms-cab-compressed/ |
/application\/pdf/ |
/application\/x-shockwave-flash/ |
/application\/x-java-applet/ |
/application\/jar/ |
/video\/mp4/;
## The Match notice has a sub message with a URL where you can get more
## information about the file. The %s will be replaced with the SHA-1
## hash of the file.
option match_sub_url = "https://www.virustotal.com/en/search/?query=%s";
## The malware hash registry runs each malware sample through several
## A/V engines. Team Cymru returns a percentage to indicate how
## many A/V engines flagged the sample as malicious. This threshold
## allows you to require a minimum detection rate.
option notice_threshold = 10;
}
function do_mhr_lookup(hash: string, fi: Notice::FileInfo)
{
local hash_domain = fmt("%s.malware.hash.cymru.com", hash);
when ( local MHR_result = lookup_hostname_txt(hash_domain) )
{
# Data is returned as "<dateFirstDetected> <detectionRate>"
local MHR_answer = split_string1(MHR_result, / /);
if ( |MHR_answer| == 2 )
{
local mhr_detect_rate = to_count(MHR_answer[1]);
if ( mhr_detect_rate >= notice_threshold )
{
local mhr_first_detected = double_to_time(to_double(MHR_answer[0]));
local readable_first_detected = strftime("%Y-%m-%d %H:%M:%S", mhr_first_detected);
local message = fmt("Malware Hash Registry Detection rate: %d%% Last seen: %s", mhr_detect_rate, readable_first_detected);
local virustotal_url = fmt(match_sub_url, hash);
# We don't have the full fa_file record here in order to
# avoid the "when" statement cloning it (expensive!).
local n: Notice::Info = Notice::Info($note=Match, $msg=message, $sub=virustotal_url);
Notice::populate_file_info2(fi, n);
NOTICE(n);
}
}
}
}
event file_hash(f: fa_file, kind: string, hash: string)
{
if ( kind == "sha1" && f?$info && f$info?$mime_type &&
match_file_types in f$info$mime_type )
do_mhr_lookup(hash, Notice::create_file_info(f));
}
Breakdown:
- First, there is a base level with no indentation where libraries are included in the script through
@loadand a namespace is defined withmodule:
1
2
- Consists of `@load` directives which process the `__load__.zeek` script in the respective directories being loaded.
- The `@load` directives are ensuring the Files framework, the Notice framework and the script to hash all files has been loaded by Zeek.

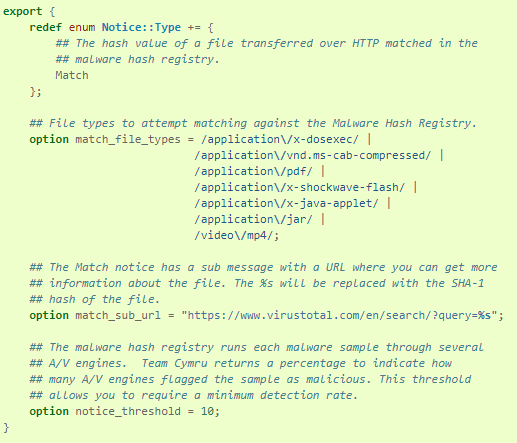

- This is followed by an indented and formatted section explaining the custom variables being provided (
export) as part of the script’s namespace:
1
2
3
4
- The 'export' section redefines an enumerable constant that describes the type of notice we will generate with the Notice framework
- Variables that can only be altered before Zeek starts running
- By extending the `Notice::Type` as shown, this allows for the [`NOTICE`] function to generate notices with a `$note` field set as `TeamCymruMalwareHashRegistry::Match`
- Remember this is from the 'module'
- Finally there is a second indented and formatted section describing the instructions to take for a specific event (
event file_hash):
1
2
3
4
5
6
7
- With the next section, the script starts to define instructions to take in a given event.
- The `file_hash` event allows scripts to access the information associated with a file for which Zeek’s file analysis framework has generated a hash
- Arguments:
- 'f' : the file itself to which the event handler was passed
- 'kind' : type of digest algorithm
- 'hash' : hash generated

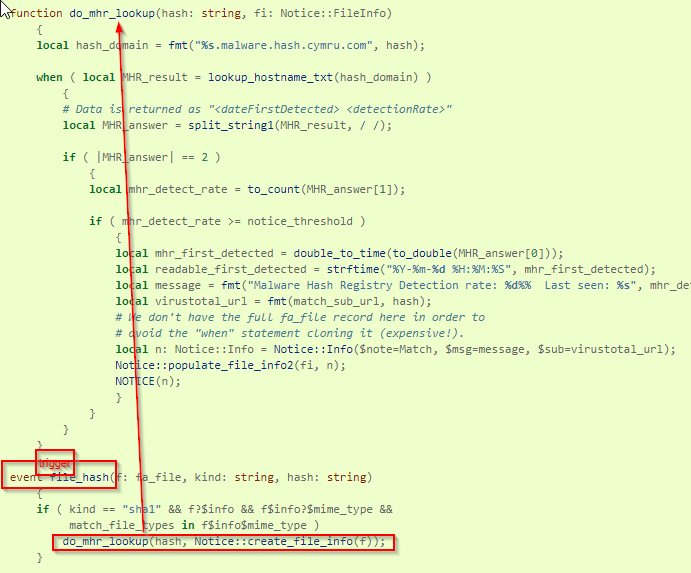

- The 'do_mhr_lookup()' is a helper function!
1
2
3
4
5
6
7
8
9
// 1st cond: it checks whether the hashed used was sha1
// 2nd cond: Checks whether the "f?info" structure exists
// Checks whether the variable inside "f?$info" named "mime_type" exists
// 3rd cond: Matches the file types on the lists of mime types.
if( kind == "sha1" && f?$info && f?$info?$mime_type && match_file_types in f$info$mime_type )
do_mhr_lookup(hash, Notice::create_file_info(f));
//
// "f?info" is a structure.
// "f?info$mime_type" is a pointer to a variable inside the structure named "mime_type"

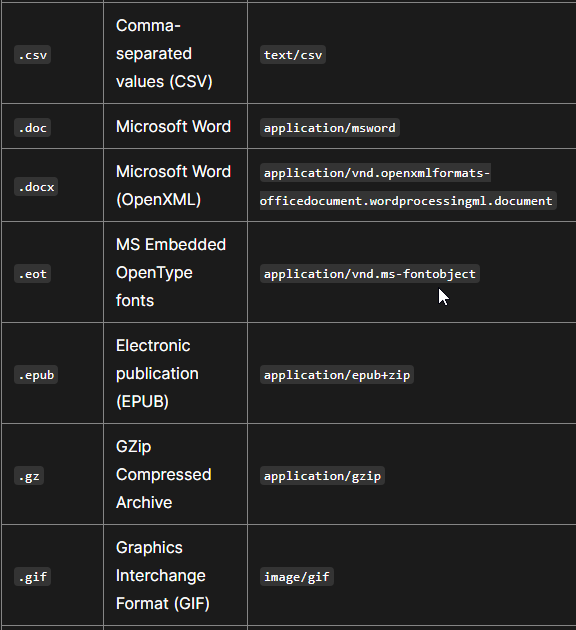

What are 'mime_types' again?
1
- Based on previous rooms, you can see that these are the file types passes on your network when browsing or trying to download a file
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
function do_mhr_lookup(hash: string, fi: Notice::FileInfo)
{
// Concatenates the hash received from the event handler to the string '.malware.hash.cymru.com'
// Probably dependent on some of the frameworks?
local hash_domain = fmt("%s.malware.hash.cymru.com", hash);
// Looks up the hostname I guess to some reputable sources? and then save it on this var
//The `when` block performs a DNS TXT lookup and stores the result in the local variable `MHR_result`
when ( local MHR_result = lookup_hostname_txt(hash_domain) )
{
# Data is returned as "<dateFirstDetected> <detectionRate>"
local MHR_answer = split_string1(MHR_result, / /);
if ( |MHR_answer| == 2 ) // Tne amount of answer split into
{
local mhr_detect_rate = to_count(MHR_answer[1]);
if ( mhr_detect_rate >= notice_threshold ) // this was defined earlier at the 'export' sect
{
local mhr_first_detected = double_to_time(to_double(MHR_answer[0]));
local readable_first_detected = strftime("%Y-%m-%d %H:%M:%S", mhr_first_detected);
local message = fmt("Malware Hash Registry Detection rate: %d%% Last seen: %s", mhr_detect_rate, readable_first_detected);
local virustotal_url = fmt(match_sub_url, hash);
# We don't have the full fa_file record here in order to
# avoid the "when" statement cloning it (expensive!).
local n: Notice::Info = Notice::Info($note=Match, $msg=message, $sub=virustotal_url);
Notice::populate_file_info2(fi, n);
NOTICE(n);
}
}
}
}
- A
whenblock is used when Zeek needs to perform asynchronous actions, such as aDNS lookup, to ensure that performance isn’t effected.
